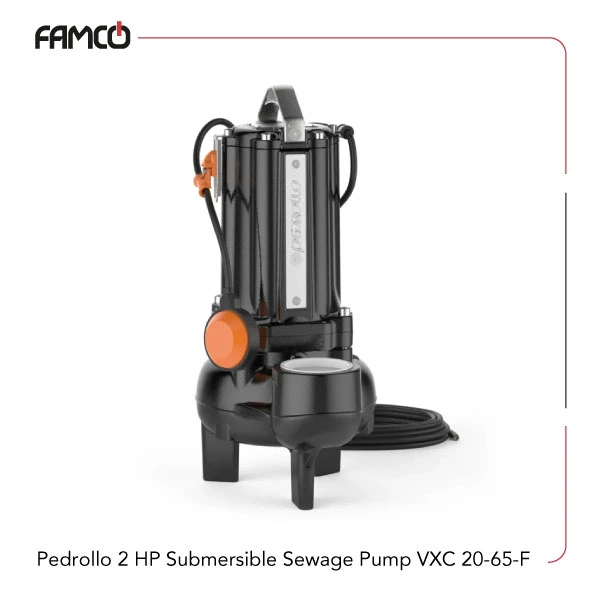

Pedrollo 2 HP Submersible Sewage Pump VXC 20/65-F Specifications
Pedrollo 2 HP submersible sewage pump VXC 20/65-F features a powerful 2 HP (1.5 kW) motor designed for demanding applications. It can handle a maximum flow rate of 60 cubic meters per hour, which translates to 1000 liters per minute, making it suitable for high-volume tasks. The maximum head height is 6.5 meters, allowing it to lift liquids efficiently over considerable distances. It operates effectively in water temperatures up to +40°C, ensuring versatility in various environments. This Pedrollo sewage pump is capable of processing suspended solids up to 50 mm in diameter for the VXC /50-F model and up to 65 mm for the VXC /65-F model, making it ideal for handling debris and solids in liquids. It can operate at depths of up to 10 meters below water level, provided the cable is appropriately sized. The motor is a 2-pole type, ensuring reliable performance, and the product boasts an IP 68 ingress protection rating, making it highly resistant to dust and water ingress, suitable for outdoor and submerged applications.
| Specification | Value |
| Power (HP) | 2 |
| Power (kW) | 1.5 |
| Maximum Flow rate (m3/h) | 60 |
| Maximum Flow rate (l/min) | 1000 |
| Maximum head (m) | 6.5 |
| Liquid temperature | up to +40° C |
| Capable of processing suspended solids | up to Ø 50 mm for VXC /50-F, up to Ø 65 mm for VXC /65-F |
| Maximum operating depth below water level | up to 10 m (with an appropriately sized power cable) |
| Motor | 2 poles |
| Ingress protection rating | IP 68 |
Pedrollo 2 HP Submersible Sewage Pump VXC 20/65-F Performance Data
| Q (m3/h) | 0 | 12 | 18 | 24 | 30 | 36 | 42 | 51 | 60 |
| Q (l/min) | 0 | 200 | 300 | 400 | 500 | 600 | 700 | 850 | 1000 |
| Head (m) | 9.5 | 8.5 | 7.6 | 6.6 | 5.4 | 4.3 | 3.3 | 2 | 1 |
Pedrollo 2 HP Submersible Sewage Pump VXC 20/65-F Applications
- Water transfer in industrial settings
- Drainage of flooded areas
- Wastewater management
- Irrigation systems
Pedrollo 2 HP Submersible Sewage Pump VXC 20/65-F Benefits
- High flow capacity for efficient water movement
- Capable of handling large solids, reducing clogging
- Waterproof and durable design for harsh environments
- Operates at significant depths with reliable performance
Pedrollo 2 HP Submersible Sewage Pump VXC 20/65-F Price List
| No. | Name | Price |
| 1 | Pedrollo 2 HP Submersible Sewage Pump VXC 20/65-F Price | Contact us |
