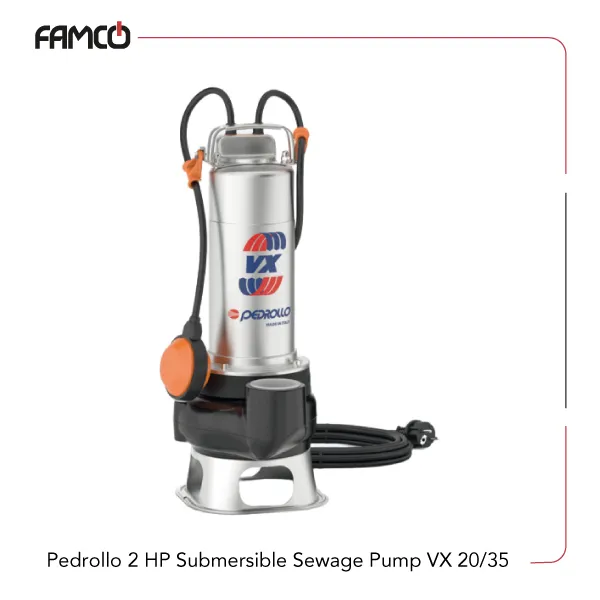

Pedrollo 2 HP Submersible Sewage Pump VX 20/35 Specifications
Wastewater systems that deal with unpredictable solids and varying flow conditions usually benefit from pumps designed with a bit more tolerance and stability, and this VX 20/35 fits nicely into that category. Its cast iron frame keeps the unit steady, while the stainless steel VORTEX impeller helps maintain movement even when the water carries debris that would slow down other designs. In many installations, professionals lean toward Pedrollo sewage pumps because they strike a good balance between energy use and consistent operation over long periods. The sealing system on this model uses paired materials that stand up well against abrasive environments, which is a welcome relief when maintenance work is already a headache. Across residential and industrial setups, Pedrollo submersible pumps like the VX 20/35 are valued for keeping things running smoothly in both single-phase and three-phase systems. For locations that demand reliable flow and fewer interruptions, this pump slots into the workflow without drawing unnecessary attention to itself.
| Specification | Value |
| Pump body | Cast iron |
| Impeller | VORTEX type in AISI 304 stainless steel |
| Double mechanical seal on pump side | Silicon carbide / Graphite / NBR |
| Double mechanical seal on motor side | Silicon carbide / Silicon carbide / NBR |
| Speed (rpm) | ≈ 2900 |
| Power (kW) | 1.5 |
| Power (HP) | 2 |
| Head (m) | 15.5 |
| Flow rate (l/min) | 600 |
| Voltage (V) | 230, 400 |
| Frequency (Hz) | 50 |
| Weight (kg) | 20.2 (single-phase), 18 (three-phase) |
| Max Liquid temperature (°C) | +40 °C |
| Max immersion depth (m) | 5 |
| Insulation | Class F |
| Protection | IP X8 |

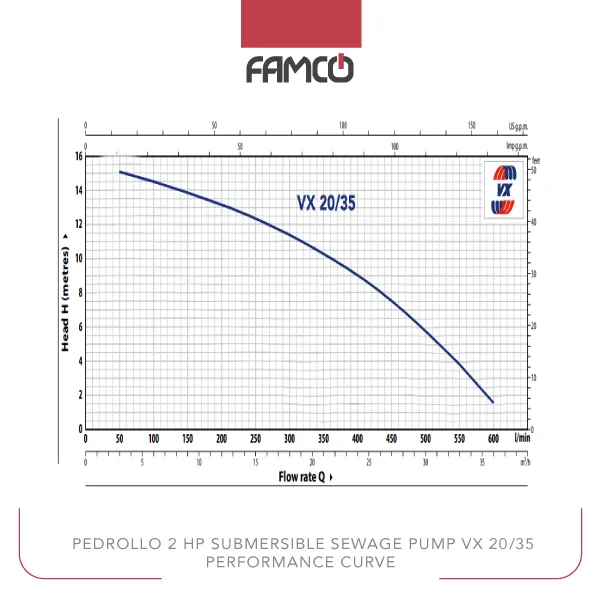

Pedrollo 2 HP Submersible Sewage Pump VX 20/35 Performance Data
| m³/h | 0 | 3 | 6 | 12 | 18 | 21 | 24 | 27 | 30 | 33 | 36 |
| l/min | 0 | 50 | 100 | 200 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| H (metres) | 15.5 | 15 | 14.5 | 13 | 11.5 | 10.3 | 9 | 7.5 | 5.8 | 3.8 | 1.5 |
Pedrollo 2 HP Submersible Sewage Pump VX 20/35 Applications
- Water transfer in residential and industrial settings
- Drainage and sewage management
- Irrigation systems
- Industrial fluid handling
Pedrollo 2 HP Submersible Sewage Pump VX 20/35 Benefits
- Durable cast iron construction for long-lasting use
- Corrosion-resistant stainless steel impeller
- Double mechanical seals for enhanced sealing and reliability
- Suitable for continuous operation in harsh environments
Pedrollo 2 HP Submersible Sewage Pump VX 20/35 Price List
| No. | Name | Price |
| 1 | Pedrollo 2 HP Submersible Sewage Pump VX 20/35 Price | Contact us |
