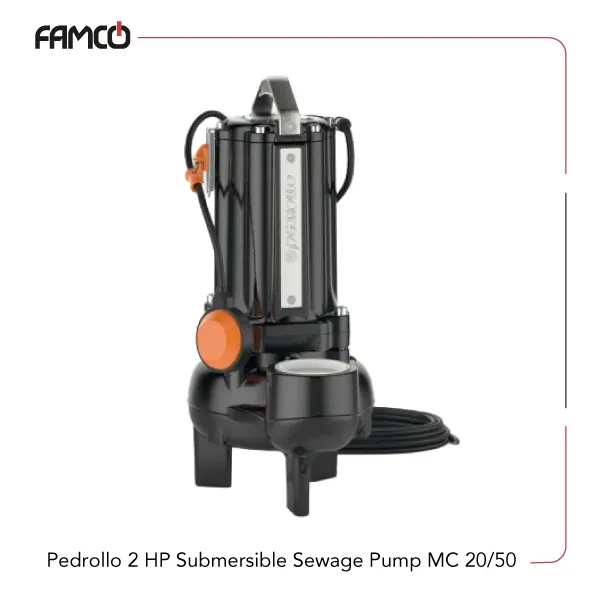

2 HP Submersible Sewage Pump MC 20/50 Specifications
This pump features a durable cast iron body and a high-quality impeller made from micro-cast AISI 304 stainless steel, designed for efficient fluid movement. It includes double mechanical seals on both the pump and motor sides, with materials like silicon carbide, ceramic, graphite, and NBR, ensuring reliable sealing across this Pedrollo sewage pump’s tasks. Operating at approximately 2900 rpm, it delivers 1.5 kW (2 HP) of power, capable of generating a head of 18 meters and a flow rate of 1100 liters per minute. The pump supports both single-phase and three-phase power supplies, with voltages of 230V and 400V, respectively. Its weight is 43 kg for single-phase and 41 kg for three-phase models, rendering this Pedrollo submersible pump suitable for various industrial and commercial applications requiring efficient fluid transfer.
| Specification | Value |
| Pump body | Cast iron |
| Impeller | TWO-CHANNEL type in micro-cast AISI 304 stainless steel |
| Double mechanical seal on pump side | Silicon carbide/Silicon carbide/NBR |
| Double mechanical seal on motor side | Ceramic / Graphite / NBR |
| Speed (rpm) | ≈ 2900 |
| Power (kW) | 1.5 |
| Power (HP) | 2 |
| Head (m) | 18 |
| Flow rate (l/min) | 1100 |
| Voltage (V) | Single and three-phase: 230, 400 |
| Weight (kg) | Single-phase: 43, Three-phase: 41 |

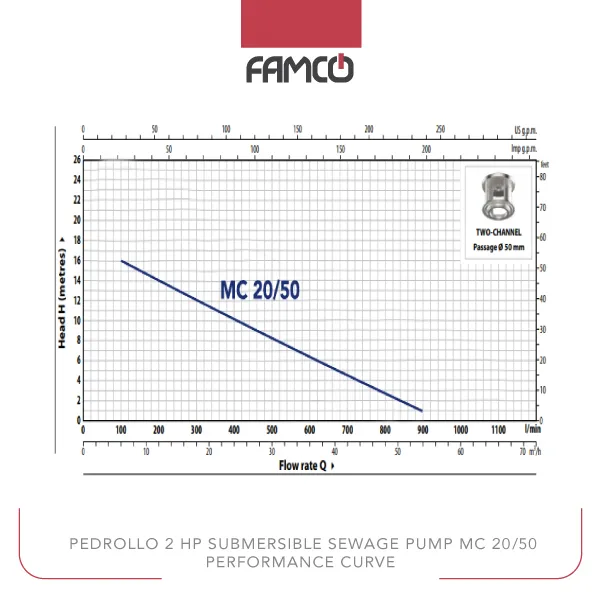

Pedrollo 2 HP Submersible Sewage Pump MC 20/50 Performance Data
| m³/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 48 | 54 |
| l/min | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 |
| H metres | 18 | 16 | 14 | 12.5 | 10.5 | 8.5 | 6.5 | 5 | 3 | 1 |

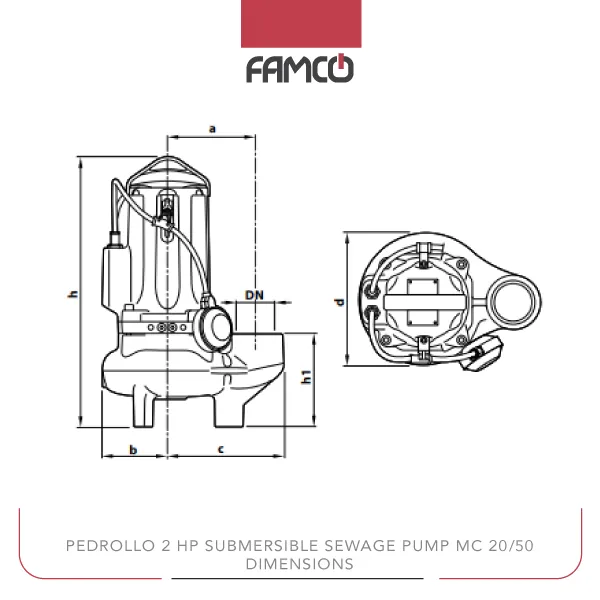

Pedrollo 2 HP Submersible Sewage Pump MC 20/50 Dimensions and Weight
| Dimensions (mm) | Weight (kg) | ||||||
| a | b | c | h | h1 | d | 1~ | 3~ |
| 162 | 119 | 212 | 487 | 167 | 242 | 43 | 41.9 |
Pedrollo 2 HP Submersible Sewage Pump MC 20/50 Applications
- Water supply systems
- Irrigation in agriculture
- Industrial fluid transfer
- Building water circulation
Pedrollo 2 HP Submersible Sewage Pump MC 20/50 Benefits
- Durable cast iron construction for long-lasting use
- High flow rate of 1100 l/min for efficient operation
- Double mechanical seals prevent leaks and extend lifespan
- Versatile voltage options for different power sources
Pedrollo 2 HP Submersible Sewage Pump MC 20/50 Price List
| No. | Name | Price |
| 1 | Pedrollo 2 HP Submersible Sewage Pump MC 20/50 Price | Contact us |
