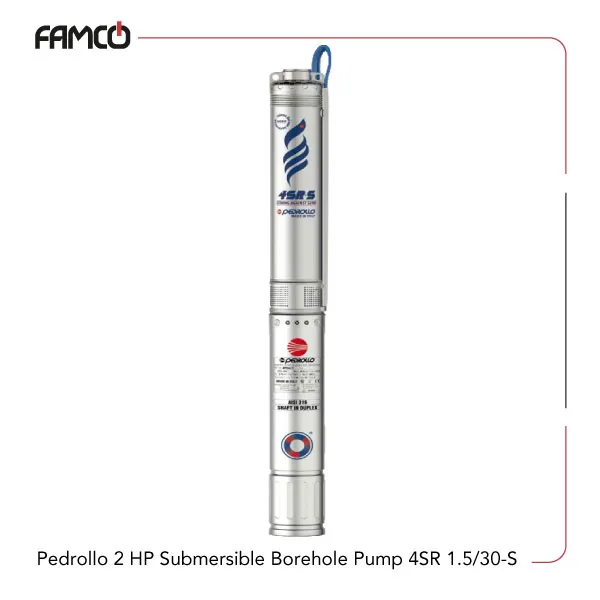

Pedrollo 2 HP Submersible Borehole Pump 4SR 1.5/30-S

Pedrollo 2 HP Submersible Borehole Pump 4SR 1.5/30-S Specifications

Pedrollo submersible borehole pump 4SR 1.5/30-S delivers 1.5 kW (2 HP) of power, suitable for demanding water transfer applications. It achieves a maximum flow rate of 2.7 m³/h (45 L/min) and a maximum head of 213 m, enabling efficient pumping over significant vertical distances. Featuring a 1¼‑inch (DNM) connection, it is compatible with standard piping systems. Weighing 19.3 kg, the pump is portable yet robust, allowing easy installation and maintenance. This Pedrollo submersible pump operates effectively with liquids up to 40 °C and can be submerged up to 15 m, suitable for deep wells or pond setups. Capable of handling sand content up to 200 g/m³, it remains durable in particulate-laden water. The pump supports both single-phase and three-phase power supplies, providing versatile electrical compatibility.

Specification	Value
Power (kW)	1.5
Power (HP)	2
Maximum Flow rate (m3/h)	2.7
Maximum Flow rate (l/min)	45
Maximum Head (m)	213
DNM	1″ 1/4
Weight (kg)	19.3
Liquid temperature	up to 40°C
Submersion depth	15 meters
Sand content	200 g/m3
Phase	Single- and three-phase

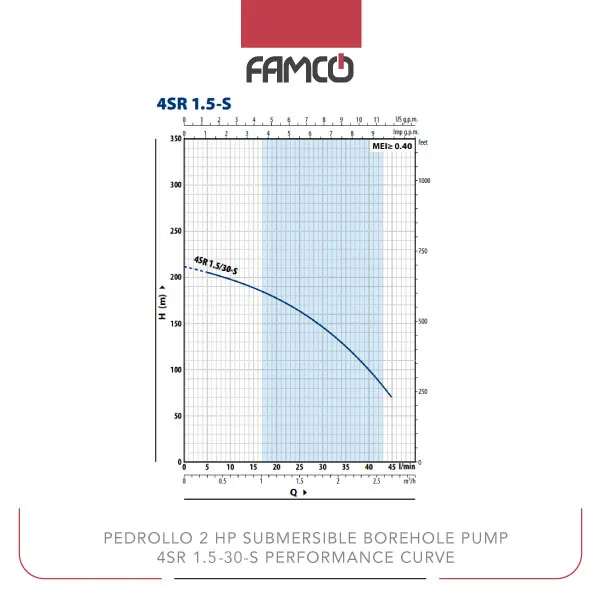

Pedrollo 2 HP Submersible Borehole Pump 4SR 1.5/30-S Performance Data

Q (m3/h)	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7
Q (l/min)	0	5	10	15	20	25	30	35	40	45
H (m)	213	206	199	190	178	164	147	126	100	70

Pedrollo 2 HP Submersible Borehole Pump 4SR 1.5/30-S Applications

• Deep well water extraction
• Irrigation systems
• Industrial water transfer
• Pond aeration and water circulation



Pedrollo 2 HP Submersible Borehole Pump 4SR 1.5/30-S Benefits

• High head capacity for deep water pumping
• Flexible power options with single and three-phase support
• Handles sand and particulate matter effectively
• Lightweight and easy to install or maintain



Pedrollo 2 HP Submersible Borehole Pump 4SR 1.5/30-S Price List

No.	Name	Price
1	Pedrollo 2 HP Submersible Borehole Pump 4SR 1.5/30-S Price	Contact us
