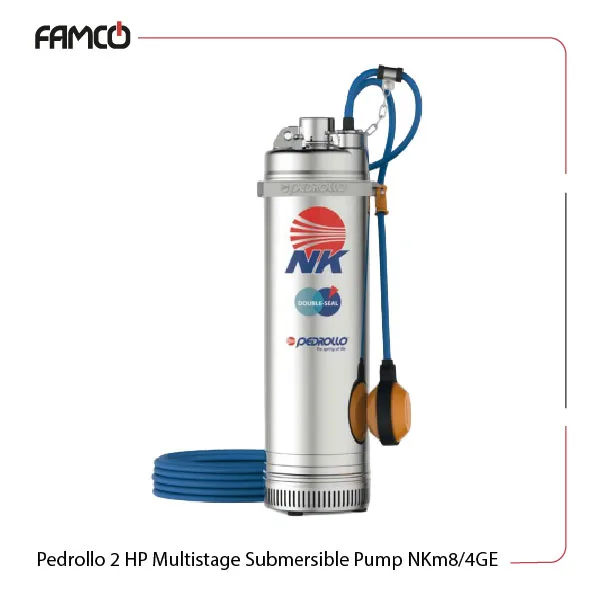

Pedrollo 2 HP Multistage Submersible Pump NKm8/4GE Specifications
This product is a powerful pump with a rated power of 1.5 kW, equivalent to 2 HP. The Pedrollo submersible pumps are known for durability, and this one operates efficiently at a head range of 21.6 to 54 meters. This product is designed for both single-phase (230 V) and three-phase (400 V) electrical systems. It weighs 17.5 kg for single-phase and 16.3 kg for three-phase configurations. The frequency is set at 50 Hz to reach maximum compatibility with standard electrical systems. Its insulation class of F offers reliable protection against overheating. These Pedrollo pumps has an impressive protection rating of IP X8 for submersion in water up to 20 meters deep. It can handle liquid temperatures up to +40 °C and has a maximum sand content tolerance of 150 g/m³. The motor side features a double mechanical seal made of ceramic, graphite, and NBR, while the pump side uses silicon carbide, graphite, and NBR for enhanced durability.
| Specification | Value |
| Power (kW) | 1.5 |
| Power (HP) | 2 |
| Head (m) | 21.6-54 |
| Voltage in single-phase (V) | 230 |
| Voltage in three-phase (V) | 400 |
| Weight in single-phase(kg) | 17.5 |
| Weight in three-phase(kg) | 16.3 |
| Frequency (Hz) | 50 |
| Insulation class | F |
| Protection rating | IP X8 |
| Max. immersion depth (m) | 20 |
| Max. liquid temperature | +40 °C |
| Maximum sand content | 150 g/m³ |
Pedrollo 2 HP Multistage Submersible Pump NKm8/4GE Materials
- Double mechanical seal on motor side: Ceramic/Graphite/NBR
- Double mechanical seal on Pump side: Silicon carbide/Graphite/NBR
Pedrollo 2 HP Multistage Submersible Pump NKm8/4GE Technical Data
| M3/h | 0 | 0.6 | 1.2 | 2.4 | 3.0 | 3.6 | 4.2 | 4.8 | 6.0 | 6.6 | 7.2 | 8.4 | 9.6 |
| l/min | 0 | 10 | 20 | 40 | 50 | 60 | 70 | 80 | 100 | 110 | 120 | 140 | 160 |
| H (m) | 54 | 54 | 53.5 | 52 | 51 | 49.5 | 48 | 46.5 | 42 | 39.5 | 36.5 | 29.5 | 21.6 |

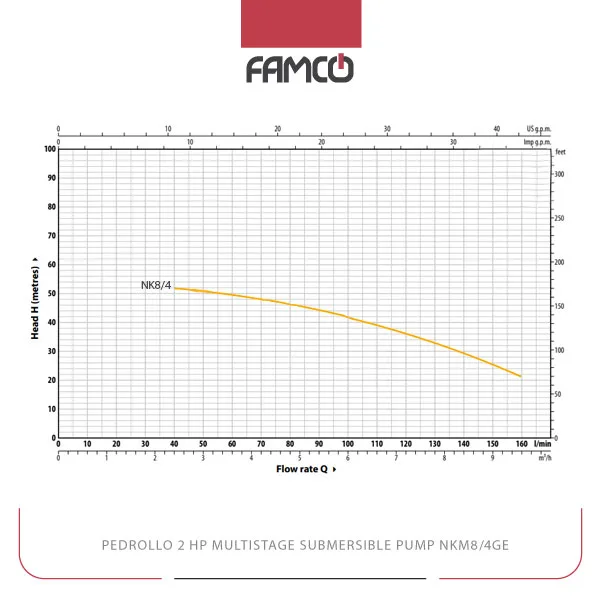

Pedrollo 2 HP Multistage Submersible Pump NKm8/4GE Performance Curve
Pedrollo 2 HP Multistage Submersible Pump NKm8/4GE Applications
- Irrigation systems for agriculture
- Drainage in construction sites
- Water supply for industrial processes
- Pumping water from wells or reservoirs
Pedrollo 2 HP Multistage Submersible Pump NKm8/4GE Benefits
- High efficiency with a power output of 1.5 kW
- Durable construction with double mechanical seals
- Excellent protection against water ingress (IP X8)
- Versatile applications in various water management tasks
Pedrollo 2 HP Multistage Submersible Pump NKm8/4GE Price List
| No. | Name | Price |
| 1 | Pedrollo 2 HP Multistage Submersible Pump NKm8/4GE Price | Contact us |
There are no reviews yet.
