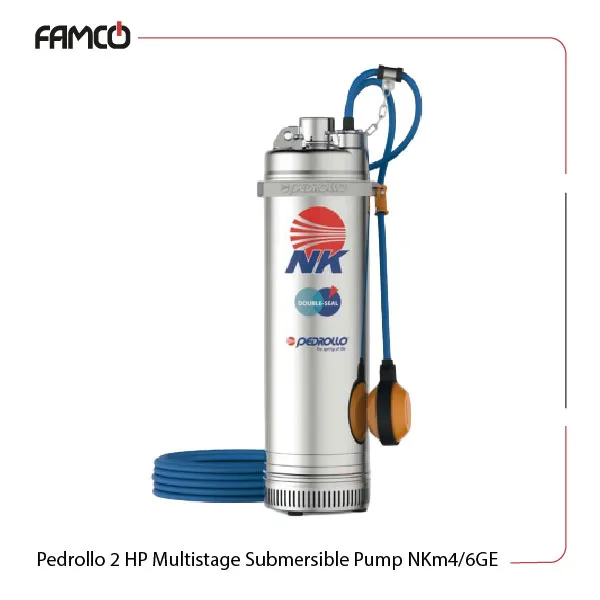

Pedrollo 2 HP Multistage Submersible Pump NKm4/6GE Specifications
This product is a powerful pump designed for various applications. This Pedrollo pump operates at a power of 1.5 kW (2 HP) and can handle a head range of 24 to 80 meters. The pump is available in both single-phase (230 V) and three-phase (400 V) configurations for different electrical setups. Weighing 18 kg for single-phase and 17.8 kg for three-phase, this product is relatively lightweight for its capabilities. The frequency is set at 50 Hz, so these submersible pump stay compatible with standard electrical systems. The product’s insulation class of F helps provide reliable performance in various conditions. The protection rating of IP X8 allows for submersion in water, with a maximum immersion depth of 20 meters. It can handle liquid temperatures up to +40 °C and has a maximum sand content of 150 g/m³. The pump features double mechanical seals on both the motor and pump sides, ensuring durability and efficiency.
| Specification | Value |
| Power (kW) | 1.5 |
| Power (HP) | 2 |
| Head (m) | 24-80 |
| Voltage in single-phase (V) | 230 |
| Voltage in three-phase (V) | 400 |
| Weight in single-phase(kg) | 18 |
| Weight in three-phase(kg) | 17.8 |
| Frequency (Hz) | 50 |
| Insulation class | F |
| Protection rating | IP X8 |
| Max. immersion depth (m) | 20 |
| Max. liquid temperature | +40 °C |
| Maximum sand content | 150 g/m³ |
Pedrollo 2 HP Multistage Submersible Pump NKm4/6GE Materials
- Double mechanical seal on motor side: Ceramic/Graphite/NBR
- Mechanical seal on Pump side: Silicon carbide/Graphite/NBR
Pedrollo 2 HP Multistage Submersible Pump NKm4/6GE Technical Data
| M3/h | 0 | 0.6 | 1.2 | 2.4 | 3.0 | 3.6 | 4.2 | 4.8 | 6.0 | 6.6 | 7.2 |
| l/min | 0 | 10 | 20 | 40 | 50 | 60 | 70 | 80 | 100 | 110 | 120 |
| H (m) | 80 | 79 | 78 | 73 | 70 | 66 | 61 | 55.5 | 41.5 | 33.5 | 24 |

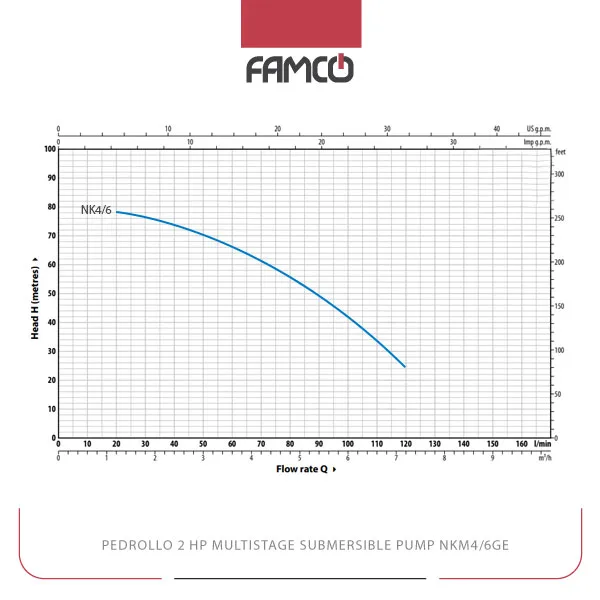

Pedrollo 2 HP Multistage Submersible Pump NKm4/6GE Performance Curve
Pedrollo 2 HP Multistage Submersible Pump NKm4/6GE Applications
- Agricultural irrigation systems
- Construction site dewatering
- Residential drainage solutions
- Industrial liquid transfer
Pedrollo 2 HP Multistage Submersible Pump NKm4/6GE Benefits
- High efficiency with a power output of 1.5 kW
- Versatile voltage options for different setups
- Durable design with double mechanical seals
- IP X8 rating allows for underwater use
Pedrollo 2 HP Multistage Submersible Pump NKm4/6GE Price List
| No. | Name | Price |
| 1 | Pedrollo 2 HP Multistage Submersible Pump NKm4/6GE Price | Contact us |
