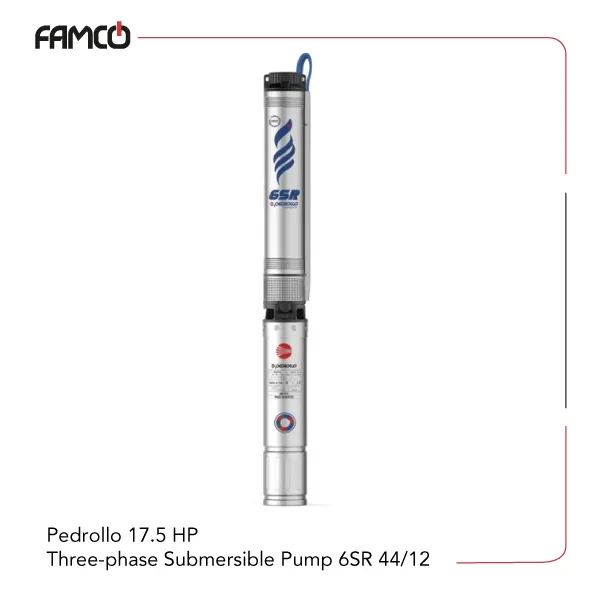

Pedrollo 17.5 HP Three-phase Submersible Pump 6SR 44/12 Specifications
This pump is designed for efficient water extraction and transfer in various applications. It features a powerful 13 kW (17.5 HP) motor, capable of delivering a maximum head of 149 meters and a flow rate of up to 1000 liters per minute. The pump operates in a vertical position and is suitable for continuous duty (S1), making the 6SR 44/12 Pedrollo pump most suitable for long-term use. It is compatible with well diameters of 6 inches (153 mm) and is equipped with durable Noryl™ impellers coated with a special elastomer resistant to sand, ensuring longevity in sandy environments. The diffusers are also made of Noryl™, providing additional durability. The pump shaft is constructed from AISI 304 stainless steel, offering corrosion resistance. It can operate at liquid temperatures up to +35 °C and withstand maximum depths of 200 meters with 6PD motors or 150 meters with 6PSR motors. The pump can start up to 20 times per hour at regular intervals, with a minimum cooling flow of 8 cm/s to prevent overheating. This Pedrollo submersible pump is available with motor options including 6PD rewindable and oil-filled or 6PSR rewindable and water-filled, providing flexibility for different operational needs. The weight varies between 91 kg for the PD model and 105 kg for the PSR model, indicating a robust build suitable for demanding environments.
| Specification | Value |
| Power (kW) | 13 |
| Power (HP) | 17.5 |
| Head (m) | 149 |
| Max. flow rate (l/min) | 1000 |
| Voltage | three-phase configured |
| Operation | in vertical position |
| Continuous running duty | S1 |
| Suited for well diameters | 6 inches, 153 mm |
| Impellers | Noryl™ and coated with special sand-resistant elastomer |
| Diffusers | Noryl™ |
| Pump shaft | AISI 304 stainless steel |
| Weight (kg) | 91 (PD), 105 (PSR) |
| Maximum sand content | 100 g/m³ |
| Maximum operating depth | – 200 m with 6PD motors, – 150 m with 6PSR motors |
| Liquid temperature | up to +35 °C |
| Starts per hour | 20 at regular intervals |
| Minimum cooling flow | 8 cm/s |
| Motor options | 6PD rewindable and oil filled or 6PSR rewindable and water filled |

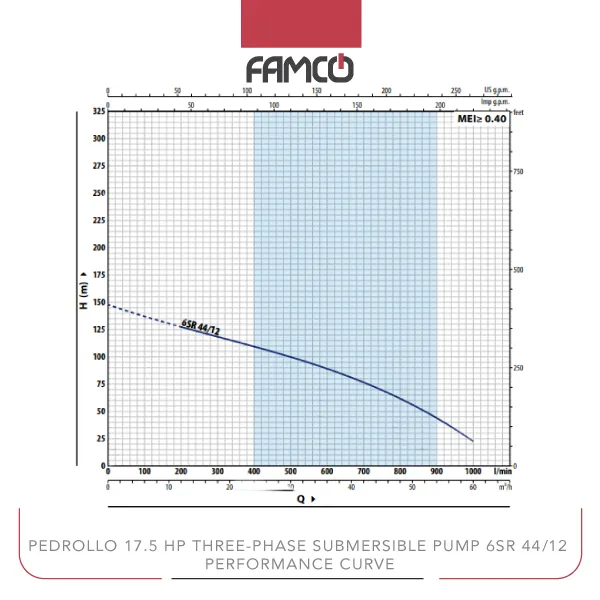

Pedrollo 17.5 HP Three-phase Submersible Pump 6SR 44/12 Performance Data
| m³/h | 0 | 12 | 18 | 24 | 30 | 36 | 42 | 48 | 54 | 60 |
| l/min | 0 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
| head (m) | 149 | 128 | 119 | 110 | 101 | 90 | 77 | 62.5 | 45 | 23.5 |
Pedrollo 17.5 HP Three-phase Submersible Pump 6SR 44/12 Applications
- Deep well water extraction
- Irrigation systems in agriculture
- Municipal water supply projects
- Industrial water transfer
Pedrollo 17.5 HP Three-phase Submersible Pump 6SR 44/12 Benefits
- High flow rate and strong head for efficient water transfer
- Durable components resistant to sand and corrosion
- Flexible motor options for different needs
- Suitable for continuous operation in demanding environments
Pedrollo 17.5 HP Three-phase Submersible Pump 6SR 44/12 Price List
| No. | Name | Price |
| 1 | Pedrollo 17.5 HP Three-phase Submersible Pump 6SR 44/12 Price | Contact us |
