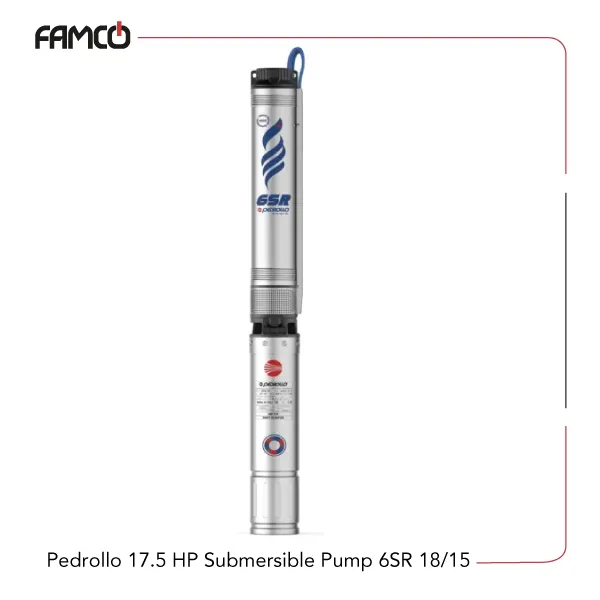

Pedrollo 17.5 HP Submersible Pump 6SR 18/15 Specifications
This Pedrollo-manufactured pump is designed for deep water applications, capable of operating at depths up to 200 meters with the 6PD motor and 150 meters with the 6PSR motor. It handles liquids at temperatures up to 35°C and can manage sand content up to 100 grams per cubic meter, making it suitable for challenging environments. The pump operates in a vertical position and is built for continuous duty, with a capacity of 20 starts per hour at regular intervals. It requires a minimum cooling flow of 8 centimeters per second for optimal performance. Power-wise, it delivers 13 kilowatts or 17.5 horsepower, with a maximum head of 203 meters and a flow rate of 450 liters per minute. The Pedrollo pump 18/15 is from the 6SR series and powered by a three-phase voltage system, ensuring reliable operation. It is compatible with well diameters of 6 inches or 153 millimeters. The impellers are made from Noryl™ and coated with a special elastomer resistant to sand, which helps prolong the lifespan of the components. The diffusers of this Pedrollo submersible pump are also made from Noryl™, contributing to the pump’s durability. The shaft is constructed from AISI 304 stainless steel, providing corrosion resistance. Dimensions vary slightly depending on the model, with heights ranging from 780 to 1063 mm and weights between 83.6 and 97.6 kg.
| Specification | Value |
| Liquid temperature | up to +35 °C |
| Maximum sand content | 100 g/m³ |
| Maximum operating depth | 200 m with 6PD motors, 150 m with 6PSR motors |
| Operation | in vertical position |
| Starts per hour | 20 at regular intervals |
| Minimum cooling flow | 8 cm/s |
| Power (kW) | 13 |
| Power (HP) | 17.5 |
| Head (m) | 203 |
| Max. flow rate (l/min) | 450 |
| Voltage | three-phase configured |
| Continuous running duty | S1 |
| Suitable well diameters | 6 inches, 153 mm |
| Impellers | Noryl™ and coated with a special sand-resistant elastomer |
| Diffusers | Noryl™ |
| Pump shaft | AISI 304 stainless steel |
Pedrollo 17.5 HP Submersible Pump 6SR 18/15 Dimensions and Weight
| Dimensions (mm) | Value | PD | PSR |
| h1 | 1063 | 1063 | |
| h2 | 820 | 780 | |
| h3 | 1883 | 1843 | |
| Weight (kg) | 83.6 | 97.6 | |

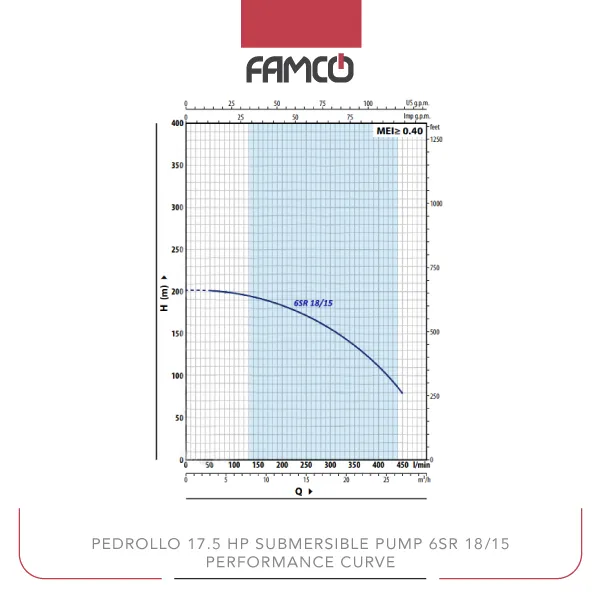

Pedrollo 17.5 HP Submersible Pump 6SR 18/15 Performance Data
| m³/h | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 21 | 24 | 27 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
| Head (m) | 203 | 202 | 199 | 193 | 185 | 172 | 157 | 138 | 113 | 80 |
Pedrollo 17.5 HP Submersible Pump 6SR 18/15 Applications
- Deep well water extraction
- Irrigation systems
- Industrial water supply
- Municipal water projects
Pedrollo 17.5 HP Submersible Pump 6SR 18/15 Benefits
- High efficiency and powerful performance
- Suitable for deep water and sandy environments
- Durable materials ensure long-lasting operation
- Designed for continuous use with reliable start intervals
