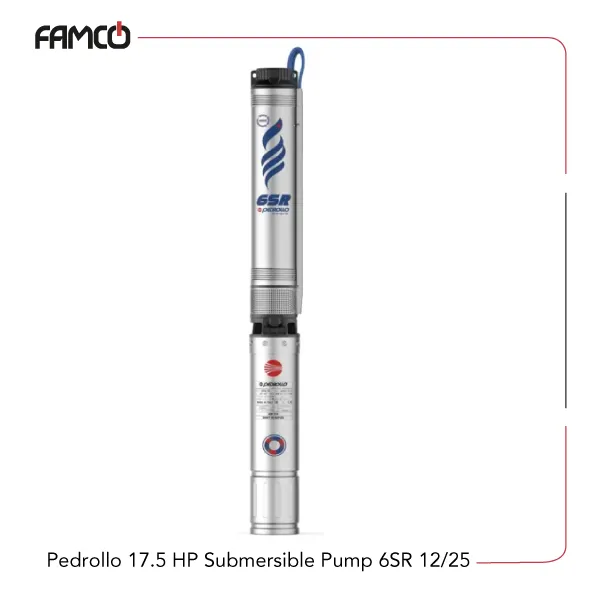

Pedrollo 17.5 HP Submersible Pump 6SR 12/25 Specifications
This high-performance vertical pump is designed for deep water applications, capable of operating at depths up to 200 meters with 6PD motors and 150 meters with 6PSR motors. It features a robust construction with a stainless steel shaft (AISI 304) and durable Noryl™ impellers coated with a special elastomer resistant to sand, making it suitable for sandy environments. The Pedrollo submersible pump from the 6SR series can handle liquids at temperatures up to +35°C and can process water with a maximum sand content of 100 grams per cubic meter. It operates in a vertical position and is built for continuous operation, with a capacity of 20 starts per hour at regular intervals. The pump requires a minimum cooling flow of 8 cm/sec to maintain optimal performance. This Pedrollo pump is powered by a three-phase electrical supply, with a power rating of 13 kW or 17.5 HP, and features a maximum head of 349 meters and a flow rate of 330 liters per minute. Its dimensions are approximately 1497 mm in height, with specific measurements for different models, and it weighs between 92.4 kg and 106.4 kg depending on the configuration. The pump is ideal for well diameters of 6 inches that can be installed for deep well applications, including water extraction and irrigation systems.
| Specification | Value |
| Liquid temperature | up to +35 °C |
| Maximum sand content | 100 g/m³ |
| Maximum operating depth with 6PD motors | 200 m |
| Maximum operating depth with 6PSR motors | 150 m |
| Operation position | vertical |
| Starts per hour | 20 at regular intervals |
| Minimum cooling flow | 8 cm/s |
| Power | 13 kW / 17.5 HP |
| Head | 349 m |
| Max flow rate | 330 l/min |
| Voltage | three-phase configured |
| Duty cycle | Continuous running duty (S1) |
| Suitable well diameter | 6 inches / 153 mm |
| Impellers | Noryl™ coated with a special sand-resistant elastomer |
| Diffusers | Noryl™ |
| Pump shaft material | AISI 304 stainless steel |
Pedrollo 17.5 HP Submersible Pump 6SR 12/25 Dimensions and Weight
| Dimensions (mm) | Value | PD | PSR |
| h1 | 1497 | 1497 | |
| h2 | 820 | 780 | |
| h3 | 2317 | 2227 | |
| Weight (kg) | 92.4 | 106.4 | |

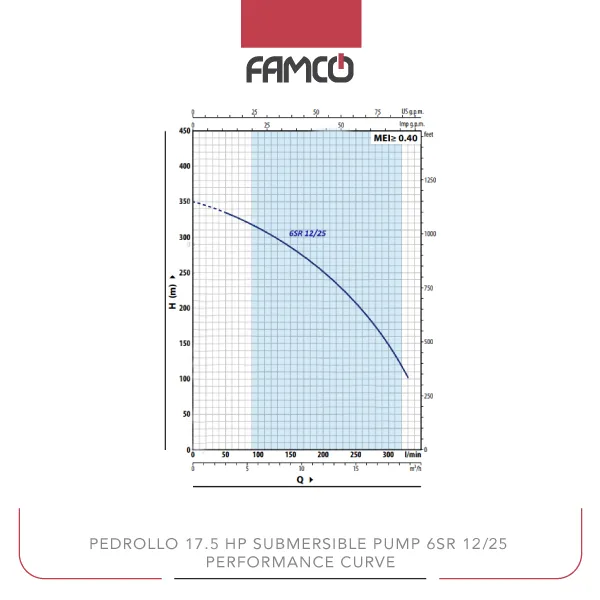

Pedrollo 17.5 HP Submersible Pump 6SR 12/25 Technical Data
| m³/h | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 19.8 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 330 |
| Head (m) | 349 | 331 | 313 | 285 | 250 | 206 | 147 | 100 |
Pedrollo 17.5 HP Submersible Pump 6SR 12/25 Applications
- Deep well water extraction
- Irrigation systems in agriculture
- Municipal water supply
- Industrial water transfer
Pedrollo 17.5 HP Submersible Pump 6SR 12/25 Benefits
- High efficiency with a maximum head of 349 meters
- Durable construction with corrosion-resistant materials
- Suitable for sandy water with up to 100 g/m³ sand content
- Reliable continuous operation for demanding applications
Pedrollo 17.5 HP Submersible Pump 6SR 12/25 Price List
| No. | Name | Price |
| 1 | Pedrollo 17.5 HP Submersible Pump 6SR 12/25 Price | Contact us |
