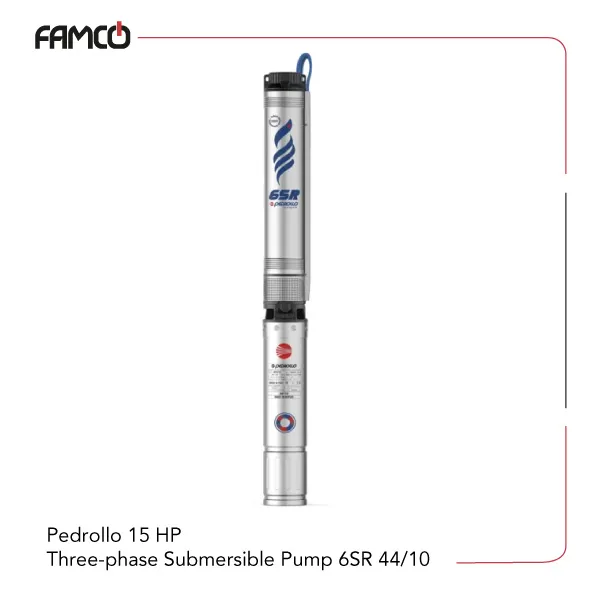

Pedrollo 15 HP Three-phase Submersible Pump 6SR 44/10 Specifications
This pump is designed for efficient water extraction and transfer, suitable for deep well applications. It can operate at liquid temperatures up to 35°C and handle sand content up to 100 grams per cubic meter. The Pedrollo pump can reach a maximum head of 124 meters and flow rates of up to 1000 liters per minute. It is powered by an 11 kW (15 HP) three-phase motor, available in two configurations: 6PD rewindable and oil-filled, or 6PSR rewindable and water-filled. The pump is built for vertical operation and can operate at depths of up to 200 meters with the 6PD motor or 150 meters with the 6PSR motor. It starts approximately 20 times per hour at regular intervals, ensuring continuous operation. The pump requires a minimum cooling flow of 8 cm/s to maintain optimal performance. Its components include Noryl™ impellers coated with a special elastomer resistant to sand, Noryl™ diffusers, and a stainless steel AISI 304 shaft, ensuring durability and resistance to harsh conditions. The Pedrollo submersible pump is suitable for wells with a diameter of 6 inches (153 mm) and weighs between 82.1 kg and 98.8 kg depending on the model.
| Specification | Value |
| Liquid temperature | +35 °C |
| Head (m) | 124 |
| Maximum sand content | 100 g/m³ |
| Maximum operating depth below water level | – 200 m with 6PD motors, – 150 m with 6PSR motors |
| Operation | in vertical position |
| Starts per hour | 20 at regular intervals |
| Minimum cooling flow | 8 cm/s |
| Power (kW) | 11 |
| Power (HP) | 15 |
| Max. flow rate (l/min) | 1000 |
| Voltage | three-phase configured |
| Continuous running duty | S1 |
| Suited for well diameters | 6 inches, 153 mm |
| Impellers | Noryl™ and coated with special sand-resistant elastomer |
| Diffusers | Noryl™ |
| Pump shaft | AISI 304 stainless steel |
| Weight (kg) | 82.1 (PD), 98.8 (PSR) |

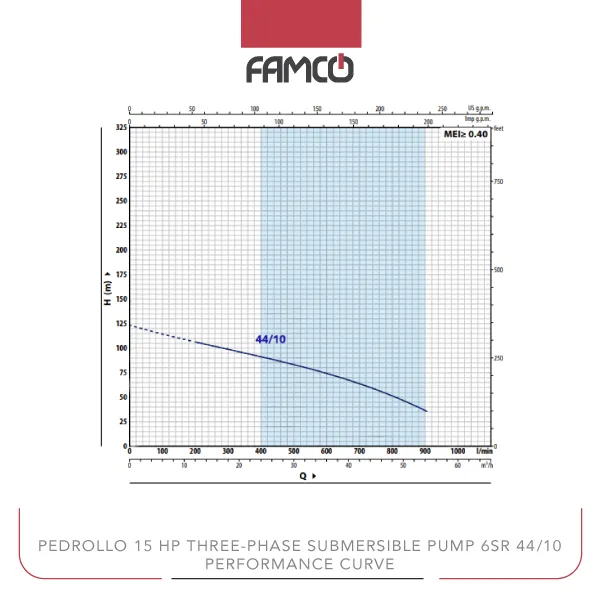

Pedrollo 15 HP Three-phase Submersible Pump 6SR 44/10 Performance Data
| m³/h | 0 | 12 | 18 | 24 | 30 | 36 | 42 | 48 | 54 | 60 |
| l/min | 0 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
| head (m) | 124 | 107 | 99 | 92 | 84 | 75 | 64.5 | 52 | 37.5 | 19.5 |
Pedrollo 15 HP Three-phase Submersible Pump 6SR 44/10 Applications
- Deep well water extraction
- Irrigation systems
- Industrial water transfer
- Municipal water supply
Pedrollo 15 HP Three-phase Submersible Pump 6SR 44/10 Benefits
- High flow rate up to 1000 l/min for efficient water transfer
- Durable construction with sand-resistant impellers and stainless steel shaft
- Operates at significant depths up to 200 meters
- Flexible motor options for different operational needs
Pedrollo 15 HP Three-phase Submersible Pump 6SR 44/10 Price List
| No. | Name | Price |
| 1 | Pedrollo 15 HP Three-phase Submersible Pump 6SR 44/10 Price | Contact us |
