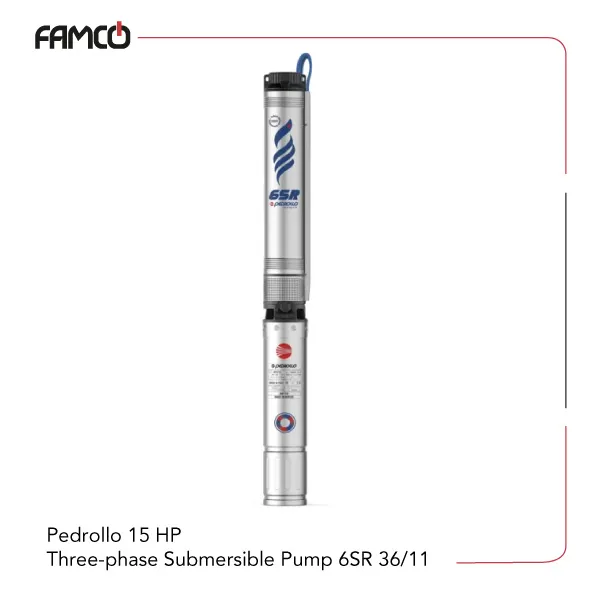

Pedrollo 15 HP Three-phase Submersible Pump 6SR 36/11 Specifications
This robust vertical pump operates efficiently with a power of 11 kW (15 HP) and a maximum head of 137 meters. It can handle a flow rate of up to 800 liters per minute, making it suitable for various high-demand applications. Designed for continuous duty (S1), it is ideal for long-term operations in water extraction or transfer systems. The Pedrollo submersible pump is compatible with well diameters of 6 inches (153 mm) and features durable components such as Noryl™ impellers coated with a special elastomer resistant to sand, and Noryl™ diffusers. Its shaft is made from corrosion-resistant AISI 304 stainless steel, ensuring longevity. The pump can operate at depths up to 200 meters with 6PD motors or 150 meters with 6PSR motors, and it can start up to 20 times per hour at regular intervals. This Pedrollo pump is designed to work with liquids up to +35 °C and requires a minimum cooling flow of 8 cm/s. The pump’s weight varies between 83.8 kg for the PD model and 100.5 kg for the PSR model. It is powered by a three-phase voltage system and is suitable for vertical installation, making it versatile for different water pumping needs.
| Specification | Value |
| Power (kW) | 11 |
| Power (HP) | 15 |
| Head (m) | 137 |
| Max. flow rate (l/min) | 800 |
| Voltage | three-phase configured |
| Operation | in vertical position |
| Continuous running duty | S1 |
| Suitable well diameters | 6 inches, 153 mm |
| Impellers | Noryl™ and coated with special sand-resistant elastomer |
| Diffusers | Noryl™ |
| Pump shaft | AISI 304 stainless steel |
| Maximum sand content | 100 g/m³ |
| Maximum operating depth | 200 m with 6PD motors, 150 m with 6PSR motors |
| Liquid temperature | up to +35 °C |
| Starts per hour | 20 at regular intervals |
| Minimum cooling flow | 8 cm/s |
| Weight | 83.8 kg (PD), 100.5 kg (PSR) |
| Extra | The pump can be supplied with motor: 6PD rewindable and oil filled or 6PSR rewindable and water filled |

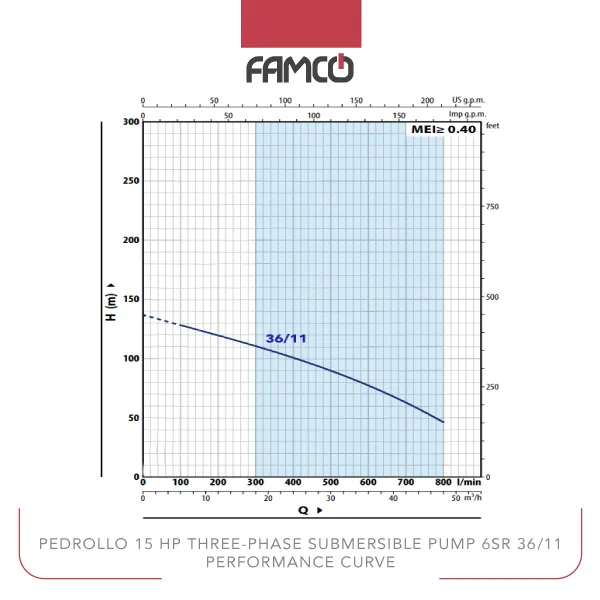

Pedrollo 15 HP Three-phase Submersible Pump 6SR 36/11 Performance Data
| m³/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 48 |
| l/min | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 |
| head (m) | 137 | 128 | 120 | 111 | 101 | 90 | 77 | 63 | 46 |
Pedrollo 15 HP Three-phase Submersible Pump 6SR 36/11 Applications
- Water extraction from deep wells
- Irrigation systems for agriculture
- Industrial water transfer
- Municipal water supply projects
Pedrollo 15 HP Three-phase Submersible Pump 6SR 36/11 Benefits
- High efficiency with a maximum head of 137 meters
- Durable components resistant to sand and corrosion
- Suitable for deep water applications up to 200 meters
- Reliable continuous operation for long-term use
Pedrollo 15 HP Three-phase Submersible Pump 6SR 36/11 Price List
| No. | Name | Price |
| 1 | Pedrollo 15 HP Three-phase Submersible Pump 6SR 36/11 Price | Contact us |
