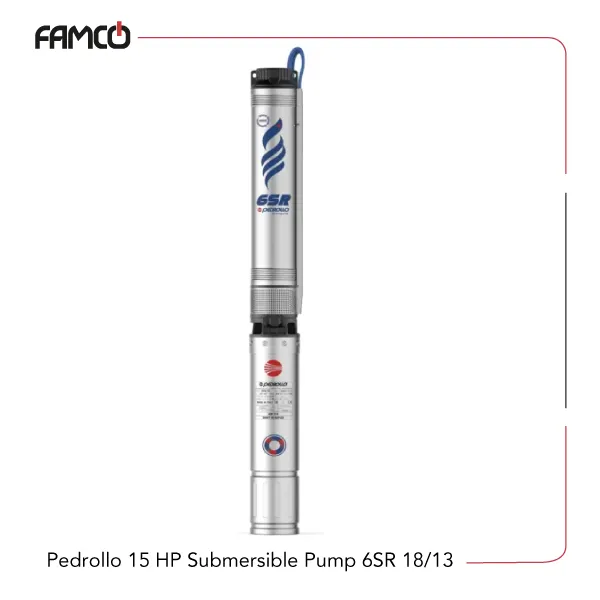

Pedrollo 15 HP Submersible Pump 6SR 18/13 Specifications
This 15 HP pump from Pedrollo is designed for demanding water extraction tasks, especially in well applications. It features a powerful 11 kW (15 HP) motor, capable of delivering a maximum head of 176 meters and a flow rate of up to 450 liters per minute. The pump operates efficiently in vertical positions and is suitable for well diameters of 6 inches (153 mm). It can handle water temperatures up to 35°C and sand content up to 100 grams per cubic meter, making it ideal for environments with some sand or debris. The pump is equipped with impellers made from Noryl™, coated with a special elastomer resistant to sand, and diffusers also made from Noryl™. The shaft is constructed from durable AISI 304 stainless steel, ensuring this Pedrollo pump’s longevity and resistance to corrosion. This Pedrollo pump can operate at depths of up to 200 meters with 6PD motors and 150 meters with 6PSR motors. The pump is designed for continuous operation (S1 duty cycle) and can start up to 20 times per hour at regular intervals. It requires a minimum cooling flow of 8 cm/s to maintain optimal performance. The Pedrollo submersible pump 6SR 18/13 is designed and measured at approximately 976 mm in height (h1), with other key measurements being 765 mm (h2) and 1741 mm (h3). It weighs around 76.4 kg with the 6PD motor and 93.1 kg with the 6PSR motor, making it suitable for various installation environments and demanding applications.
| Specification | Value |
| Liquid temperature | up to +35 °C |
| Maximum sand content | 100 g/m³ |
| Maximum operating depth with 6PD motors | 200 m |
| Maximum operating depth with 6PSR motors | 150 m |
| Operation position | vertical |
| Starts per hour | 20 at regular intervals |
| Minimum cooling flow | 8 cm/s |
| Power (kW) | 11 |
| Power (HP) | 15 |
| Head (m) | 176 |
| Max. flow rate (l/min) | 450 |
| Voltage | three-phase configured |
| Continuous running duty | S1 |
| Suitable well diameters | 6 inches, 153 mm |
| Impellers | Noryl™ coated with special sand-resistant elastomer |
| Diffusers | Noryl™ |
| Pump shaft | AISI 304 stainless steel |
Pedrollo 15 HP Submersible Pump 6SR 18/13 Dimensions and Weight
| Dimensions (mm) | Value | PD | PSR |
| h1 | 976 | 976 | |
| h2 | 765 | 750 | |
| h3 | 1741 | 1726 | |
| Weight (kg) | 76.4 | 93.1 | |

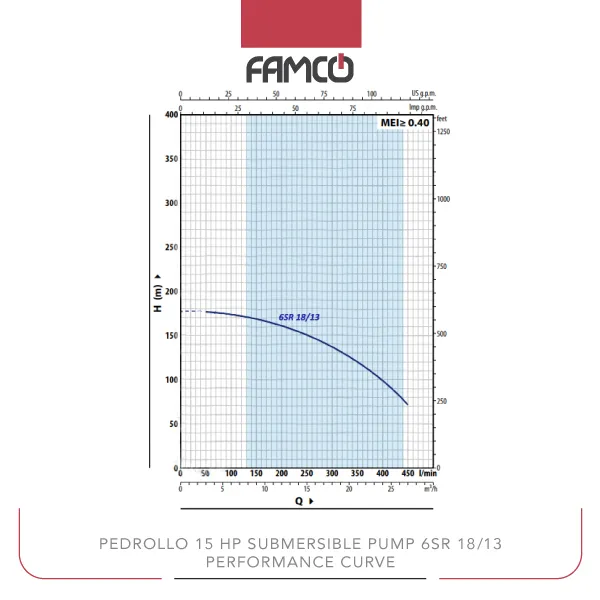

Pedrollo 15 HP Submersible Pump 6SR 18/13 Performance Data
| m³/h | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 21 | 24 | 27 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
| Head (m) | 176 | 175 | 172 | 167 | 160 | 149 | 136 | 120 | 98 | 70 |
Pedrollo 15 HP Submersible Pump 6SR 18/13 Applications
- Water extraction from deep wells
- Irrigation systems in agriculture
- Municipal water supply projects
- Industrial water transfer
Pedrollo 15 HP Submersible Pump 6SR 18/13 Benefits
- High efficiency with powerful motor and high flow rate
- Durable construction with corrosion-resistant materials
- Suitable for demanding environments with sand content
- Reliable continuous operation for extended periods
Pedrollo 15 HP Submersible Pump 6SR 18/13 Price List
| No. | Name | Price |
| 1 | Pedrollo 15 HP Submersible Pump 6SR 18/13 Price | Contact us |
