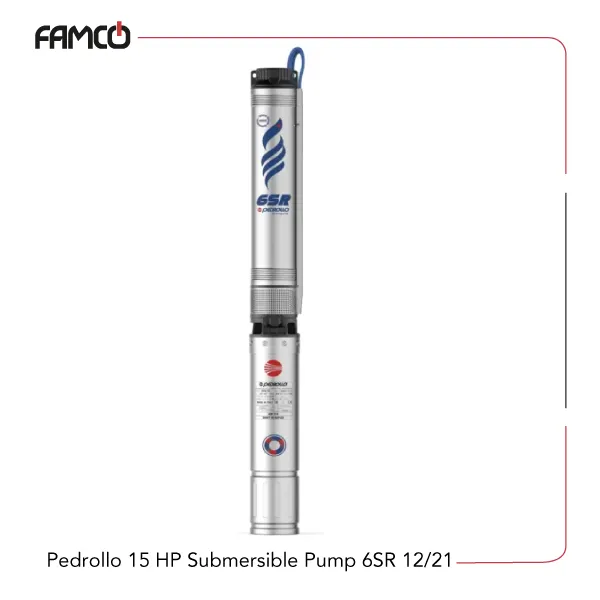

Pedrollo 15 HP Submersible Pump 6SR 12/21 Specifications
This robust pump is designed for demanding water applications, capable of handling temperatures up to 35°C and sand content up to 100 grams per cubic meter. It operates efficiently at depths of 200 meters with the 6PD motor and 150 meters with the 6PSR motor, making it suitable for deep well pumping. The pump is intended for vertical installation and can start up to 20 times per hour at regular intervals, ensuring reliable performance in continuous duty (S1). This Pedrollo pump features a powerful 11 kW (15 HP) motor, delivering a maximum head of 292 meters and a flow rate of 330 liters per minute. The pump is powered by a three-phase voltage system, optimized for industrial settings. Its impellers are made from Noryl™, coated with a special elastomer resistant to sand, which prolongs the lifespan and maintains efficiency despite abrasive conditions. The diffusers of this Pedrollo submersible pump are also made from Noryl™, contributing to durability. The pump shaft is constructed from AISI 304 stainless steel, ensuring corrosion resistance. Dimensions vary slightly depending on the model, with the PD version measuring 1324 mm in height and weighing 83.6 kg, while the PSR version is slightly taller at 1324 mm and weighs 100.3 kg. The pump’s design emphasizes reliability, durability, and efficiency for deep well and water transfer applications, especially in environments with sand and other abrasive particles.
| Specification | Value |
| Liquid temperature | up to +35 °C |
| Maximum sand content | 100 g/m³ |
| Maximum operating depth | 200 m with 6PD motors, 150 m with 6PSR motors |
| Operation position | vertical |
| Starts per hour | 20 at regular intervals |
| Minimum cooling flow | 8 cm/s |
| Power | 11 kW / 15 HP |
| Head | 292 m |
| Max flow rate | 330 l/min |
| Voltage | three-phase configured |
| Duty cycle | Continuous running duty (S1) |
| Suitable well diameters | 6 inches, 153 mm |
| Impellers | Noryl™ coated with special sand-resistant elastomer |
| Diffusers | Noryl™ |
| Pump shaft material | AISI 304 stainless steel |
Pedrollo 15 HP Submersible Pump 6SR 12/21 Dimensions and Weight
| Dimensions (mm) | Value | PD | PSR |
| h1 | 1324 | 1324 | |
| h2 | 765 | 750 | |
| h3 | 2089 | 2074 | |
| Weight (kg) | 83.6 | 100.3 | |
Pedrollo 15 HP Submersible Pump 6SR 12/21 Technical Data
| m³/h | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 19.8 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 330 |
| Head (m) | 292 | 279 | 263 | 239 | 210 | 174 | 124 | 84 |
Pedrollo 15 HP Submersible Pump 6SR 12/21 Applications
- Deep well water extraction
- Irrigation systems
- Industrial water transfer
- Municipal water supply
Pedrollo 15 HP Submersible Pump 6SR 12/21 Benefits
- High efficiency with 292 m head and 330 l/min flow rate
- Durable construction with sand-resistant impellers and stainless steel shaft
- Suitable for deep water applications up to 200 meters
- Reliable continuous operation with 20 starts per hour
Pedrollo 15 HP Submersible Pump 6SR 12/21 Price List
| No. | Name | Price |
| 1 | Pedrollo 15 HP Submersible Pump 6SR 12/21 Price | Contact us |
