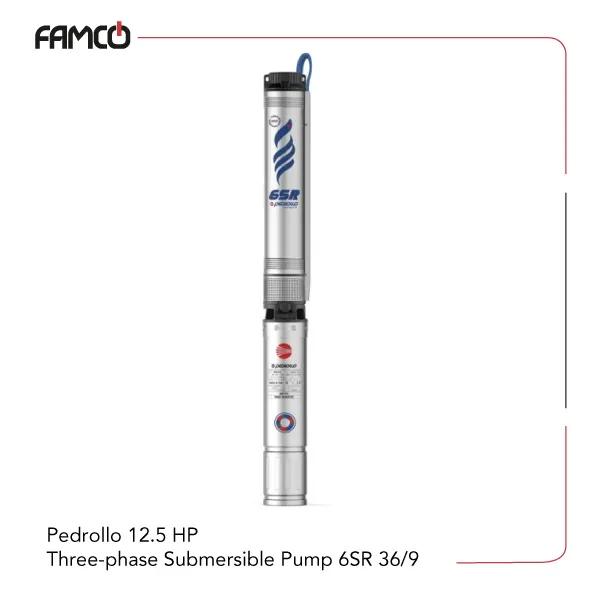

Pedrollo 12.5 HP Three-phase Submersible Pump 6SR 36/9 Specifications
This robust pump is designed for deep water applications, capable of operating at depths up to 200 meters with the 6PD motor and 150 meters with the 6PSR motor. It handles water temperatures up to +35°C and can process water with sand content up to 100 grams per cubic meter. The pump operates in a vertical position and is built for continuous duty, making it suitable for long-term operations. It features a powerful 9.2 kW (12.5 HP) motor, providing a head of 112 meters and a maximum flow rate of 800 liters per minute. The pump is configured for three-phase voltage and can start up to 20 times per hour at regular intervals. Its impellers are made from Noryl™, coated with a special elastomer resistant to sand abrasion, and the diffusers are also crafted from Noryl™. The 6SR series Pedrollo pump shaft is constructed from durable AISI 304 stainless steel, ensuring longevity and resistance to corrosion. It is compatible with well diameters of 6 inches or 153 mm, and it requires a minimum cooling flow of 8 cm/s to operate efficiently. The pump weighs 73.9 kg when equipped with the PD motor and 90.3 kg with the PSR motor, offering sturdy performance for demanding water extraction tasks. Some Pedrollo submersible pumps like this one can be supplied with different motor options, including 6PD rewindable and oil-filled or 6PSR rewindable and water-filled, providing flexibility based on operational needs.
| Specification | Value |
| Liquid temperature | +35 °C |
| Maximum sand content | 100 g/m³ |
| Maximum operating depth | – 200 m with 6PD motors, – 150 m with 6PSR motors |
| Operation position | Vertical |
| Starts per hour | 20 at regular intervals |
| Minimum cooling flow | 8 cm/s |
| Power | 9.2 kW / 12.5 HP |
| Head | 112 meters |
| Max flow rate | 800 liters per minute |
| Voltage | Three-phase configured |
| Duty cycle | Continuous running duty (S1) |
| Suitable well diameters | 6 inches, 153 mm |
| Impellers | Noryl™ coated with special sand-resistant elastomer |
| Diffusers | Noryl™ |
| Pump shaft material | AISI 304 stainless steel |
| Weight | 73.9 kg (PD), 90.3 kg (PSR) |
| Extra | Motor options include 6PD rewindable and oil-filled or 6PSR rewindable and water-filled |

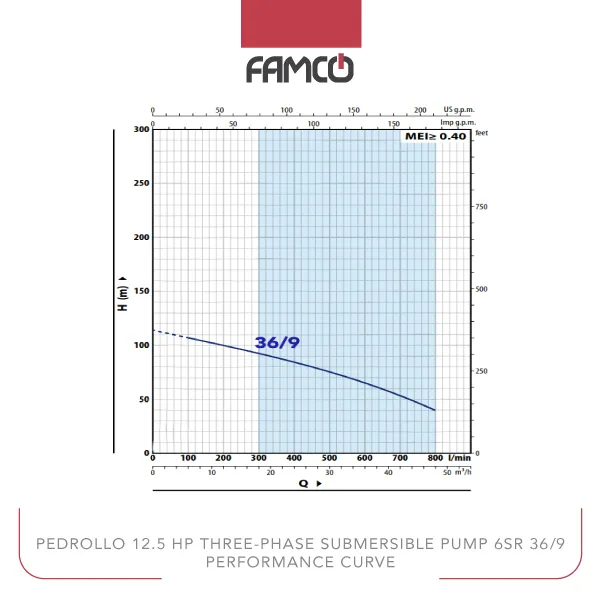

Pedrollo 12.5 HP Three-phase Submersible Pump 6SR 36/9 Performance Data
| m³/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 48 |
| l/min | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 |
| head (m) | 112 | 105 | 98 | 91 | 83 | 74 | 63.5 | 51.5 | 37.5 |
Pedrollo 12.5 HP Three-phase Submersible Pump 6SR 36/9 Applications
- Deep well water extraction
- Irrigation systems in agriculture
- Municipal water supply projects
- Dewatering in construction sites
Pedrollo 12.5 HP Three-phase Submersible Pump 6SR 36/9 Benefits
- High durability with stainless steel shaft and sand-resistant impellers
- Capable of operating at great depths up to 200 meters
- Suitable for continuous operation with reliable performance
- Flexible motor options for different operational needs
Pedrollo 12.5 HP Three-phase Submersible Pump 6SR 36/9 Price List
| No. | Name | Price |
| 1 | Pedrollo 12.5 HP Three-phase Submersible Pump 6SR 36/9 Price | Contact us |
