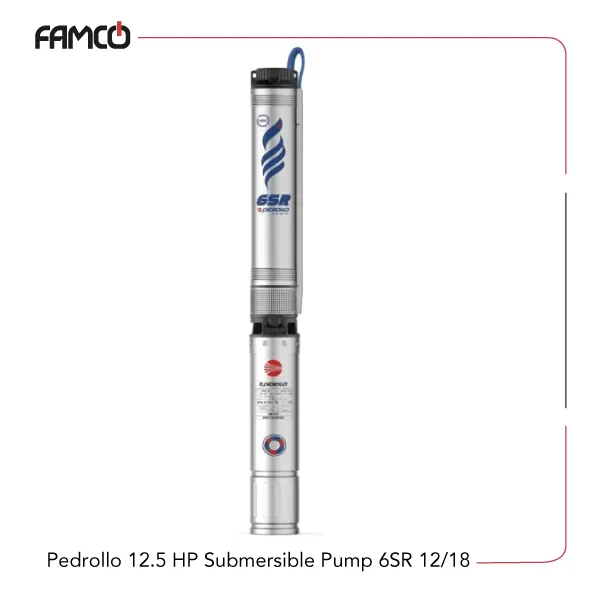

Pedrollo 12.5 HP Submersible Pump 6SR 12/18 Specifications
This pump is designed for deep water applications, capable of operating at depths up to 200 meters with 6PD motors and 150 meters with 6PSR motors. It handles water temperatures up to +35°C and can tolerate sand content up to 100 grams per cubic meter. The pump operates in a vertical position and can start up to 20 times per hour at regular intervals, ensuring reliable performance. It requires a minimum cooling flow of 8 centimeters per second to prevent overheating. Powered by a 9.2 kW (12.5 HP) three-phase motor, this Pedrollo pump delivers a maximum head of 250 meters and a flow rate of 330 liters per minute. The pump is designed for continuous operation (S1 duty cycle), ideal for long-term water extraction tasks. It fits well in wells with a diameter of 6 inches or 153 millimeters. The impellers inside this Pedrollo submersible pump are made from Noryl™ and coated with a special elastomer resistant to sand, which prolongs their lifespan. The diffusers are also made from Noryl™. The pump shaft is constructed from AISI 304 stainless steel, providing corrosion resistance. Its dimensions are approximately 1193 mm in height, with other key measurements being 700 mm and 1893 mm, and it weighs around 74.6 kg for the PD model and 91.0 kg for the PSR model.
| Specification | Value |
| Liquid temperature | +35 °C |
| Maximum sand content | 100 g/m³ |
| Maximum operating depth with 6PD motors | 200 m |
| Maximum operating depth with 6PSR motors | 150 m |
| Operation position | Vertical |
| Starts per hour | 20 at regular intervals |
| Minimum cooling flow | 8 cm/s |
| Power (kW) | 9.2 |
| Power (HP) | 12.5 |
| Head | 250 m |
| Max flow rate | 330 l/min |
| Voltage | Three-phase configured |
| Duty cycle | Continuous running duty (S1) |
| Suitable well diameter | 6 inches, 153 mm |
| Impellers | Noryl™ coated with special sand-resistant elastomer |
| Diffusers | Noryl™ |
| Pump shaft material | AISI 304 stainless steel |
Pedrollo 12.5 HP Submersible Pump 6SR 12/18 Dimensions and Weight
| Dimensions (mm) | Value | PD | PSR |
| h1 | 1193 | 1193 | |
| h2 | 700 | 700 | |
| h3 | 1893 | 1893 | |
| Weight (kg) | 74.6 | 91 | |

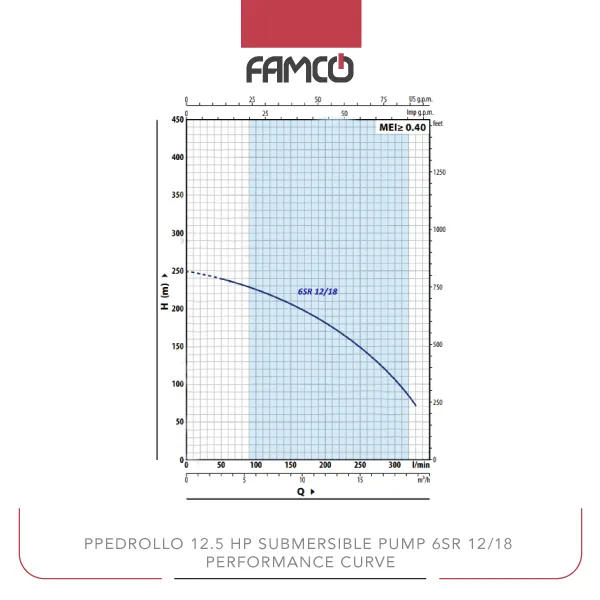

Pedrollo 12.5 HP Submersible Pump 6SR 12/18 Technical Data
| m³/h | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 19.8 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 330 |
| Head (m) | 250 | 239 | 225 | 205 | 180 | 149 | 106 | 72 |
Pedrollo 12.5 HP Submersible Pump 6SR 12/18 Applications
- Deep well water extraction
- Irrigation systems in agriculture
- Industrial water supply
- Municipal water projects
Pedrollo 12.5 HP Submersible Pump 6SR 12/18 Benefits
- High durability with sand-resistant impellers
- Suitable for deep water applications up to 200 meters
- Reliable continuous operation for long-term use
- Efficient performance with high flow rate and head
Pedrollo 12.5 HP Submersible Pump 6SR 12/18 Price List
| No. | Name | Price |
| 1 | Pedrollo 12.5 HP Submersible Pump 6SR 12/18 Price | Contact us |
