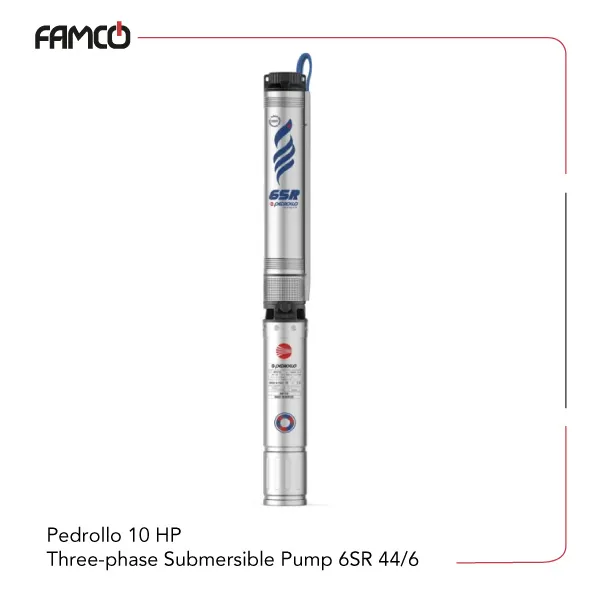

Pedrollo 10 HP Three-phase Submersible Pump 6SR 44/6 Specifications
This pump is designed for reliable water extraction in various conditions. It operates efficiently with a maximum liquid temperature of +35 °C and can handle sand content up to 100 grams per cubic meter. The pump can be used at significant depths, up to 200 meters with 6PD motors and 150 meters with 6PSR motors, making it suitable for deep well applications. It runs in a vertical position and can start up to 20 times per hour at regular intervals, ensuring consistent performance. The minimum cooling flow required is 8 centimeters per second, which helps maintain optimal operation. Power-wise, it features a 7.5 kW (10 HP) motor, powered by a three-phase supply, providing ample power for demanding tasks. The maximum flow rate reaches 1000 liters per minute, making this Pedrollo submersible pump more than suitable for high-volume water pumping. The Pedrollo pump is built with durable components, including impellers made of Noryl™ and coated with a special elastomer resistant to sand, and diffusers also made of Noryl™. The shaft is crafted from AISI 304 stainless steel, ensuring corrosion resistance and longevity. It is suitable for well diameters of 6 inches or 153 millimeters, fitting common well sizes. The pump weighs approximately 62.8 kg for the PD model and 79.7 kg for the PSR model, indicating a sturdy construction designed for continuous operation in demanding environments.
| Specification | Value |
| Liquid temperature | +35 °C |
| Head (m) | 74 |
| Maximum sand content | 100 g/m³ |
| Maximum operating depth | 6PD motors: 200 m, 6PSR motors: 150 m |
| Operation | Vertical position |
| Starts per hour | 20 |
| Minimum cooling flow | 8 cm/s |
| Power | kW: 7.5, HP: 10 |
| Max flow rate | 1000 l/min |
| Voltage | Three-phase configured |
| Duty | Continuous running duty (S1) |
| Suitable well diameters | 6 inches, 153 mm |
| Impellers | Noryl™ coated with special sand-resistant elastomer |
| Diffusers | Noryl™ |
| Pump shaft | AISI 304 stainless steel |
| Weight | PD: 62.8, SR: 79.7 |

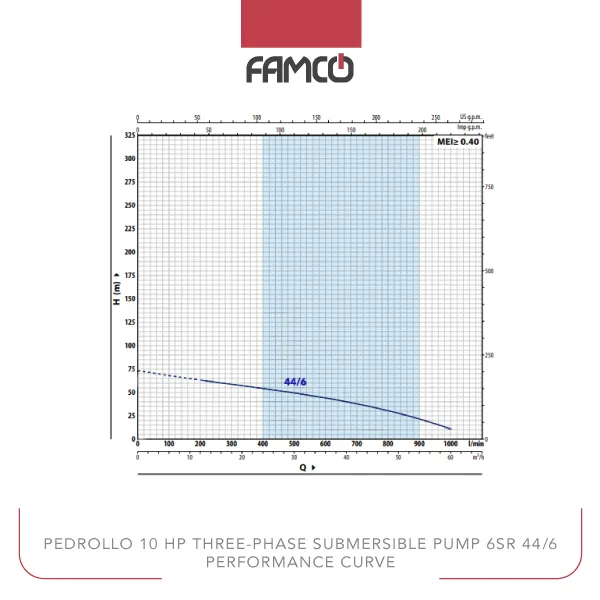

Pedrollo 10 HP Three-phase Submersible Pump 6SR 44/6 Performance Data
| m³/h | 0 | 12 | 18 | 24 | 30 | 36 | 42 | 48 | 54 | 60 |
| l/min | 0 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
| head (m) | 62 | 53.5 | 49.5 | 46 | 42 | 37.5 | 32.5 | 26 | 18.7 | 10 |
Pedrollo 10 HP Three-phase Submersible Pump 6SR 44/6 Applications
- Deep well water extraction
- Irrigation systems
- Industrial water supply
- Municipal water projects
Pedrollo 10 HP Three-phase Submersible Pump 6SR 44/6 Benefits
- High flow rate for large volume pumping
- Durable construction with corrosion-resistant materials
- Suitable for deep water applications
- Reliable continuous operation with multiple starts per hour
Pedrollo 10 HP Three-phase Submersible Pump 6SR 44/6 Price List
| No. | Name | Price |
| 1 | Pedrollo 10 HP Three-phase Submersible Pump 6SR 44/6 Price | Contact us |
