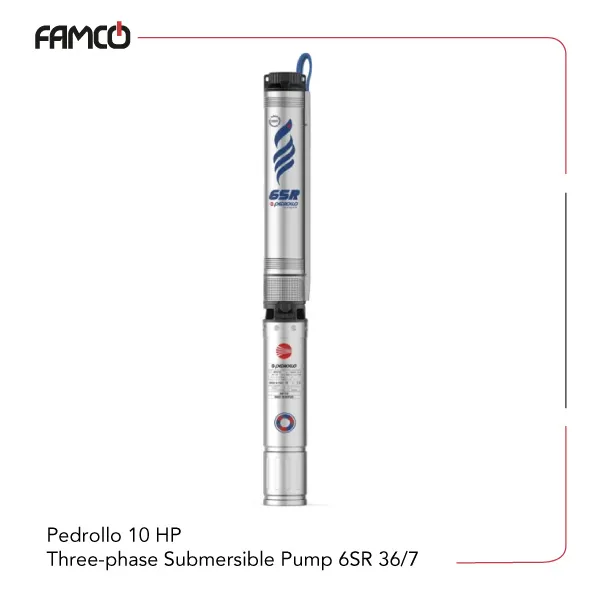

Pedrollo 10 HP Three-phase Submersible Pump 6SR 36/7 Specifications
This robust submersible pump is designed for deep water applications, capable of operating at significant depths with high efficiency. It features a maximum head of 87 meters and a flow rate of up to 800 liters per minute. The pump can handle water temperatures up to 35°C and is suitable for well diameters of 6 inches or 153 mm. It is powered by a 7.5 kW (10 HP) three-phase motor, available in two configurations: 6PD, which is oil-filled and rewindable, and 6PSR, water-filled and rewindable. The pump is engineered for continuous operation in a vertical position, with a maximum of 20 starts per hour, ensuring reliable performance over long periods. Its impellers are made from Noryl™ and coated with a special elastomer resistant to sand, which helps prevent wear and prolongs lifespan. The diffusers are also constructed from Noryl™, providing durability and resistance to harsh conditions. The Pedrollo pump shaft is made from AISI 304 stainless steel, offering corrosion resistance and strength. It can operate at depths of up to 200 meters with the 6PD motor and 150 meters with the 6PSR motor, making it suitable for various deep-water applications. The pump’s design includes a minimum cooling flow of 8 cm/s to maintain optimal operation. Weighing 66.3 kg for the PD model and 83.2 kg for the PSR model, this Pedrollo submersible pump is built for heavy-duty use, ensuring longevity and consistent performance in demanding environments.
| Specification | Value |
| Liquid temperature | +35 °C |
| Head (m) | 87 |
| Maximum sand content | 100 g/m³ |
| Maximum operating depth below water level | 6PD motors: 200 m, 6PSR motors: 150 m |
| Operation | Vertical position |
| Starts per hour | 20 |
| Minimum cooling flow | 8 cm/s |
| Power (kW) | 7.5 |
| Power (HP) | 10 |
| Max. flow rate (l/min) | 800 |
| Voltage | Three-phase configured |
| Continuous running duty | S1 |
| Suited for well diameters | 6 inches, 153 mm |
| Impellers | Noryl™ coated with special sand-resistant elastomer |
| Diffusers | Noryl™ |
| Pump shaft | AISI 304 stainless steel |
| Weight | PD: 66.3, PSR: 83.2 |
| Extra | {‘Motor options’: [‘6PD rewindable and oil filled’, ‘6PSR rewindable and water filled’]} |

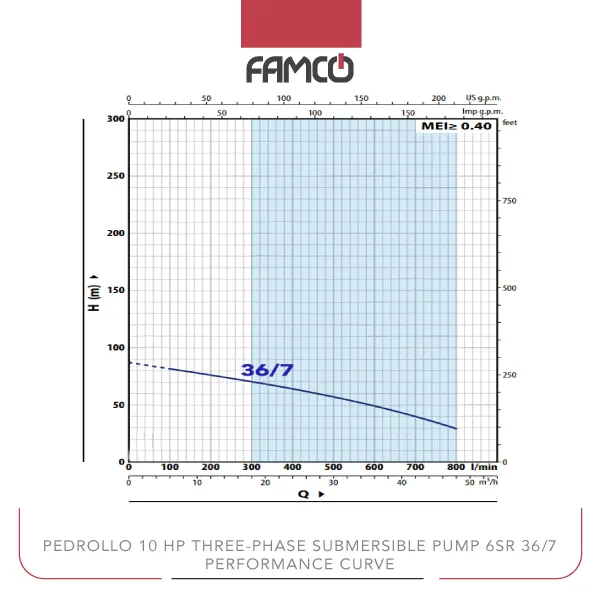

Pedrollo 10 HP Three-phase Submersible Pump 6SR 36/7 Performance Data
| m³/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 48 |
| l/min | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 |
| head (m) | 87 | 72 | 76 | 70 | 64 | 57 | 49 | 40 | 29.5 |
Pedrollo 10 HP Three-phase Submersible Pump 6SR 36/7 Applications
- Deep water well pumping
- Industrial water supply
- Irrigation systems
- Mining and construction projects
Pedrollo 10 HP Three-phase Submersible Pump 6SR 36/7 Benefits
- High efficiency at deep water levels
- Durable construction with corrosion-resistant materials
- Versatile motor options for different needs
- Reliable continuous operation in demanding environments
Pedrollo 10 HP Three-phase Submersible Pump 6SR 36/7 Price List
| No. | Name | Price |
| 1 | Pedrollo 10 HP Three-phase Submersible Pump 6SR 36/7 Price | Contact us |
