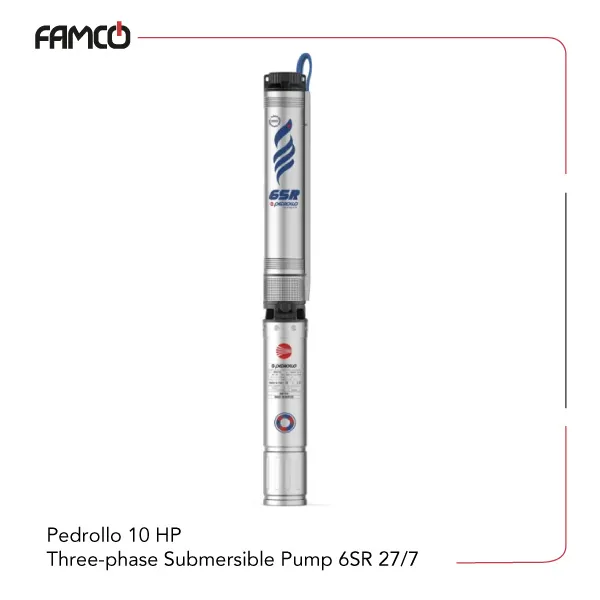

Pedrollo 10 HP Three-phase Submersible Pump 6SR 27/7 Specifications
This pump is designed for deep water applications with a maximum depth of 200 meters using 6PD motors and 150 meters with 6PSR motors. It operates in a vertical position and can handle water temperatures up to 35°C. The pump features a maximum head of 95 meters and a flow rate of 600 liters per minute, making it suitable for various water transfer tasks. It is powered by a 7.5 kW (10 HP) three-phase motor, ensuring reliable performance. The pump can start up to 20 times per hour at regular intervals, with a minimum cooling flow of 8 cm/s to prevent overheating. This Pedrollo pump has it all to be compatible with well diameters of 6 inches or 153 mm, ideal for well water extraction. The impellers are made of Noryl™ and are coated with a special elastomer resistant to sand, which allows the pump to operate efficiently even with sand content up to 100 g/m³. The diffusers are also made of Noryl™, and the pump shaft is constructed from durable AISI 304 stainless steel. The SR series Pedrollo submersible pump 27/6 weighs approximately 59.8 kg for the PD model and 76.7 kg for the PSR model, making it sturdy yet manageable for installation and maintenance.
| Specification | Value |
| Liquid temperature | +35 °C |
| Head (m) | 95 |
| Maximum sand content | 100 g/m³ |
| Maximum operating depth below water level | – 200 m with 6PD motors, – 150 m with 6PSR motors |
| Operation | in vertical position |
| Starts per hour | 20 at regular intervals |
| Minimum cooling flow | 8 cm/s |
| Power (kW) | 7.5 |
| Power (HP) | 10 |
| Max. flow rate (l/min) | 600 |
| Voltage | three-phase configured |
| Continuous running duty | S1 |
| Suitable well diameters | 6 inches, 153 mm |
| Impellers | Noryl™ and coated with special sand-resistant elastomer |
| Diffusers | Noryl™ |
| Pump shaft | AISI 304 stainless steel |
| Weight (kg) | 59.8 (PD), 76.7 (PSR) |
Pedrollo 10 HP Three-phase Submersible Pump 6SR 27/7 Performance Data
| m³/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 |
| l/min | 0 | 100 | 200 | 300 | 400 | 500 | 600 |
| head (m) | 95 | 92 | 87 | 80 | 70 | 52 | 31 |
Pedrollo 10 HP Three-phase Submersible Pump 6SR 27/7 Applications
- Deep well water extraction
- Irrigation systems
- Municipal water supply
- Industrial water transfer
Pedrollo 10 HP Three-phase Submersible Pump 6SR 27/7 Benefits
- High durability with sand-resistant impellers
- Reliable operation at great depths
- Suitable for continuous use
- Efficient cooling and performance
Pedrollo 10 HP Three-phase Submersible Pump 6SR 27/7 Price List
| No. | Name | Price |
| 1 | Pedrollo 10 HP Three-phase Submersible Pump 6SR 27/7 Price | Contact us |
