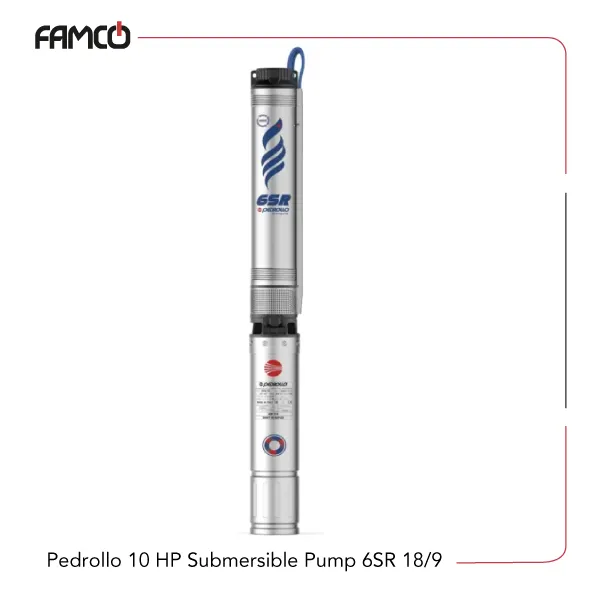

Pedrollo 10 HP Submersible Pump 6SR 18/9 Specifications
This robust water pump is designed for deep well applications, capable of operating at depths up to 200 meters with 6PD motors and 150 meters with 6PSR motors. It features a powerful 7.5 kW (10 HP) motor, providing a maximum head of 122 meters and a flow rate of 450 liters per minute. The pump is suitable for vertical installation and can handle water temperatures up to 35°C, with a maximum sand content of 100 grams per cubic meter. It is built with durable components, including Noryl™ impellers coated with a special elastomer resistant to sand, and Noryl™ diffusers. The shaft inside this Pedrollo pump is made from AISI 304 stainless steel, ensuring corrosion resistance. The pump operates continuously (S1 duty cycle) and can start up to 20 times per hour at regular intervals. This Pedrollo submersible pump requires a minimum cooling flow of 8 cm/sec to maintain optimal performance. Designed for well diameters of 6 inches (153 mm), this pump is ideal for deep well water extraction, irrigation, and other water supply applications. Its dimensions are approximately 758 mm in height (h1), with other measurements h2 at 660 mm and h3 at 1418 mm, and it weighs between 60.4 kg and 77.3 kg depending on the motor type used.
| Specification | Value |
| Liquid temperature | up to +35 °C |
| Maximum sand content | 100 g/m³ |
| Maximum operating depth with 6PD motors | 200 m |
| Maximum operating depth with 6PSR motors | 150 m |
| Operation position | vertical |
| Starts per hour | 20 at regular intervals |
| Minimum cooling flow | 8 cm/s |
| Power | 7.5 kW / 10 HP |
| Head | 122 m |
| Max flow rate | 450 l/min |
| Voltage | three-phase configured |
| Duty cycle | Continuous running duty (S1) |
| Suitable well diameters | 6 inches, 153 mm |
| Impellers | Noryl™ coated with special sand-resistant elastomer |
| Diffusers | Noryl™ |
| Pump shaft material | AISI 304 stainless steel |
Pedrollo 10 HP Submersible Pump 6SR 18/9 Dimensions and Weight
| Dimensions (mm) | Value | PD | PSR |
| h1 | 758 | 758 | |
| h2 | 660 | 670 | |
| h3 | 1418 | 1428 | |
| Weight (kg) | 60.4 | 77.3 | |
Pedrollo 10 HP Submersible Pump 6SR 18/9 Technical Data
| m³/h | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 21 | 24 | 27 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
| Head (m) | 122 | 121 | 119 | 116 | 111 | 103 | 94 | 83 | 68 | 48 |
Pedrollo 10 HP Submersible Pump 6SR 18/9 Applications
- Deep well water extraction
- Irrigation systems
- Industrial water supply
- Municipal water projects
Pedrollo 10 HP Submersible Pump 6SR 18/9 Benefits
- High efficiency with a maximum flow rate of 450 l/min
- Durable construction with corrosion-resistant materials
- Suitable for deep water levels up to 200 meters
- Reliable continuous operation for demanding tasks
Pedrollo 10 HP Submersible Pump 6SR 18/9 Price List
| No. | Name | Price |
| 1 | Pedrollo 10 HP Submersible Pump 6SR 18/9 Price | Contact us |
