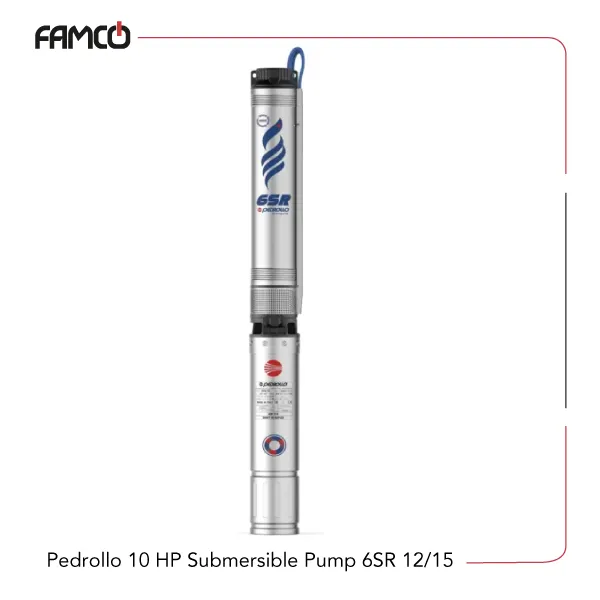

Pedrollo 10 HP Submersible Pump 6SR 12/15 Specifications
This robust pump is designed for deep water applications, capable of operating at depths up to 200 meters with 6PD motors and 150 meters with 6PSR motors. It handles water temperatures up to 35°C and can manage sand content up to 100 grams per cubic meter, making it suitable for challenging environments. With this Pedrollo pump, you can choose from two types of models, either water-filled or oil-filled, to match your exact tasks. The pump operates in a vertical position and is built for continuous duty, with a capacity of 20 starts per hour at regular intervals. It requires a minimum cooling flow of 8 centimeters per second to maintain optimal performance. Powered by a 7.5 kW (10 HP) three-phase motor, this Pedrollo submersible pump delivers a maximum head of 208 meters and a flow rate of 330 liters per minute. The impellers are made from Noryl™ and coated with a special elastomer resistant to sand, ensuring durability in abrasive conditions. Diffusers are also made from Noryl™, and the pump shaft is constructed from AISI 304 stainless steel for corrosion resistance. The Pedrollo pump presented here is suitable for well diameters of 6 inches (153 mm). Its dimensions vary slightly depending on the model, with heights around 1063 mm, 660-670 mm, and overall lengths of approximately 1723-1733 mm. The weight ranges from 57.8 kg to 84.7 kg, depending on the configuration.
| Specification | Value |
| Liquid temperature | up to +35 °C |
| Maximum sand content | 100 g/m³ |
| Maximum operating depth with 6PD motors | 200 m |
| Maximum operating depth with 6PSR motors | 150 m |
| Operation position | vertical |
| Starts per hour | 20 at regular intervals |
| Minimum cooling flow | 8 cm/s |
| Power | 7.5 kW |
| Power (HP) | 10 HP |
| Head | 208 m |
| Max. flow rate | 330 l/min |
| Voltage | three-phase configured |
| Duty cycle | Continuous running duty (S1) |
| Suitable well diameters | 6 inches, 153 mm |
| Impellers | Noryl™ coated with special sand-resistant elastomer |
| Diffusers | Noryl™ |
| Pump shaft | AISI 304 stainless steel |
Pedrollo 10 HP Submersible Pump 6SR 12/15 Dimensions and Weight
| Dimensions (mm) | Value | PD | PSR |
| h1 | 1063 | 1063 | |
| h2 | 660 | 670 | |
| h3 | 1723 | 1733 | |
| Weight (kg) | 67.8 | 84.7 | |

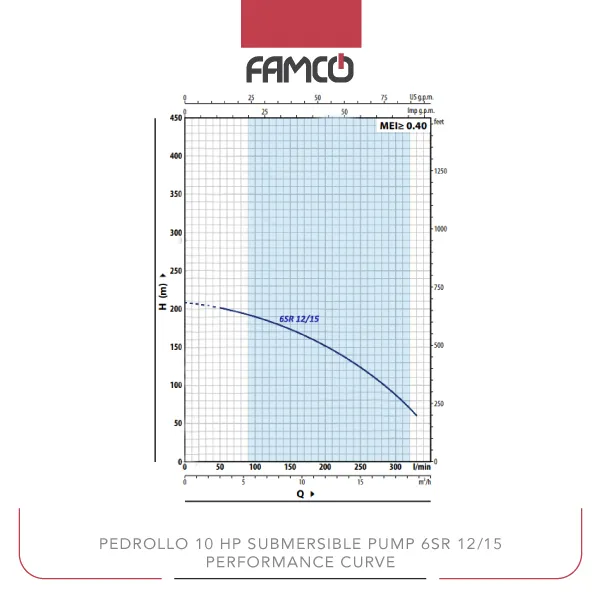

Pedrollo 10 HP Submersible Pump 6SR 12/15 Technical Data
| m³/h | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 19.8 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 330 |
| Head (m) | 208 | 199 | 189 | 171 | 150 | 124 | 88 | 60 |
Pedrollo 10 HP Submersible Pump 6SR 12/15 Applications
- Deep well water extraction
- Municipal water supply systems
- Agricultural irrigation projects
- Industrial water transfer
Pedrollo 10 HP Submersible Pump 6SR 12/15 Benefits
- High durability with sand-resistant impellers
- Capable of operating at great depths
- Continuous duty for reliable performance
- Suitable for various well sizes
Pedrollo 10 HP Submersible Pump 6SR 12/15 Price List
| No. | Name | Price |
| 1 | Pedrollo 10 HP Submersible Pump 6SR 12/15 Price | Contact us |
