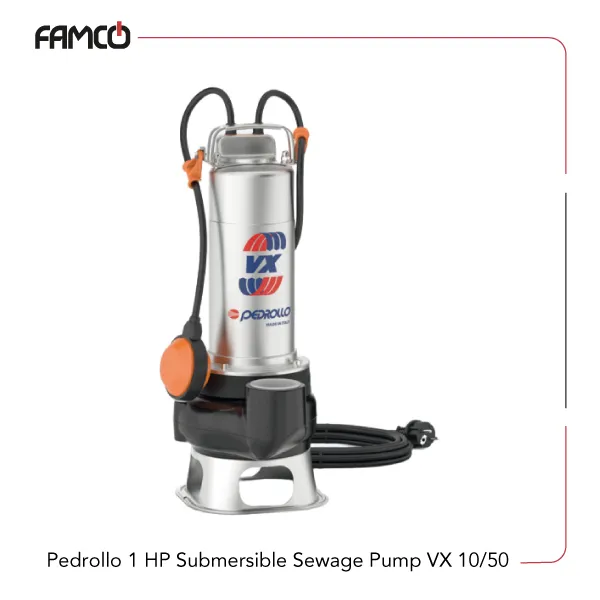

Pedrollo 1 HP Submersible Sewage Pump VX 10/50 Specifications
This pump features a durable cast iron body and a VORTEX impeller made from high-quality AISI 304 stainless steel, ensuring resistance to corrosion and efficient handling of various liquids. It is equipped with double mechanical seals on both the pump and motor sides, utilizing silicon carbide, graphite, and NBR materials for enhanced sealing performance and durability. Operating at approximately 2900 RPM, the pump delivers a flow rate of 550 liters per minute and a head of 9 meters, making it suitable for applications requiring reliable liquid transfer. This model from the VX Pedrollo sewage pumps supports both single-phase and three-phase power supplies, with voltages of 230V and 400V, respectively, and a power consumption of 0.75 kW (1 HP). The device is designed to operate efficiently at a maximum liquid temperature of +40°C and can be immersed up to 5 meters deep. Its insulation class is F, providing good thermal resistance, and it features an IP X8 protection rating, ensuring safety against water ingress. The pump’s weight varies slightly depending on the power phase, with 15.7 kg for single-phase and 14.5 kg for three-phase models, making this Pedrollo submersible pump relatively lightweight and easy to install in various settings.
| Specification | Value |
| Pump body | Cast iron |
| Impeller | VORTEX type in AISI 304 stainless steel |
| Double mechanical seal on pump side | Silicon carbide / Graphite / NBR |
| Double mechanical seal on motor side | Silicon carbide / Silicon carbide / NBR |
| Speed (rpm) | ≈ 2900 |
| Power (kW) | 0.75 |
| Power (HP) | 1 |
| Head (m) | 9 |
| Flow rate (l/min) | 550 |
| Voltage (V) | 230, 400 |
| Frequency (Hz) | 50 |
| Weight (kg) | 15.7 (single-phase), 14.5 (three-phase) |
| Max. Liquid temperature (°C) | +40 °C |
| Max. immersion depth (m) | 5 |
| Insulation | Class F |
| Protection | IP X8 |
Pedrollo 1 HP Submersible Sewage Pump VX 10/50 Performance Curve
| m³/h | 0 | 3 | 6 | 12 | 18 | 24 | 27 | 30 | 33 |
| l/min | 0 | 50 | 100 | 200 | 300 | 400 | 450 | 500 | 550 |
| H metres | 9 | 8.5 | 8.2 | 7.5 | 6.5 | 5 | 3.8 | 2.5 | 1.5 |
Pedrollo 1 HP Submersible Sewage Pump VX 10/50 Applications
- Water transfer and pumping in residential and commercial settings
- Drainage and sump pumping for basements and underground areas
- Irrigation systems for agricultural fields
- Industrial fluid transfer and processing
Pedrollo 1 HP Submersible Sewage Pump VX 10/50 Benefits
- High corrosion resistance with stainless steel impeller
- Reliable double mechanical seals for long-term durability
- Flexible power options for different electrical setups
- Compact and lightweight design for easy installation
Pedrollo 1 HP Submersible Sewage Pump VX 10/50 Price List
| No. | Name | Price |
| 1 | Pedrollo 1 HP Submersible Sewage Pump VX 10/50 Price | Contact us |
