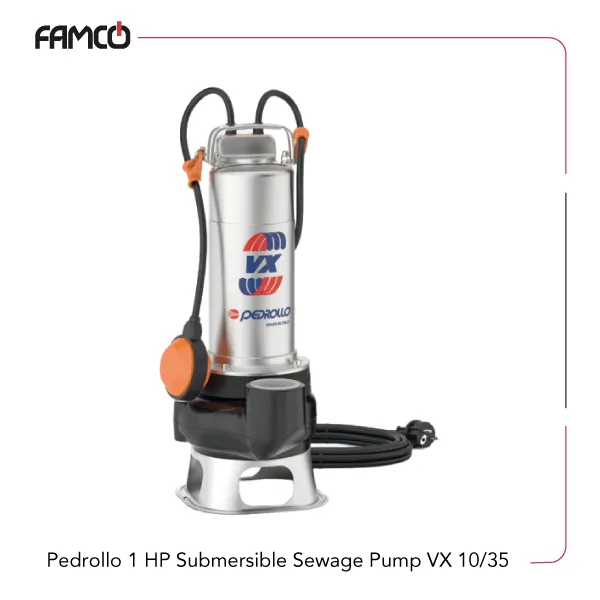

Pedrollo 1 HP Submersible Sewage Pump VX 10/35 Specifications
This pump features a durable cast iron body and a VORTEX impeller made from high-quality AISI 304 stainless steel, ensuring resistance to corrosion and solids. It is equipped with double mechanical seals on both the pump and motor sides, utilizing silicon carbide, graphite, and NBR materials for enhanced sealing and longevity. Operating at approximately 2900 rpm, it delivers a power output of 0.75 kW (1 HP) and can generate a head of 11 meters with a flow rate of 400 liters per minute. The Pedrollo submersible pump VX 10/35 supports both single-phase and three-phase power supplies, with voltages of 230V and 400V respectively, and operates at a frequency of 50 Hz. Its weight is 15.2 kg for single-phase and 14 kg for three-phase models. The pump is suitable for liquids up to 40°C and can be immersed up to 5 meters deep. It features insulation class F for safety and efficiency, and an IP X8 protection rating, making this Pedrollo sewage pump more than suitable for continuous submersion in water environments. The combination of robust construction, corrosion resistance, and reliable sealing makes this pump ideal for various industrial and domestic applications requiring efficient liquid transfer and handling.
| Specification | Value |
| Pump body | Cast iron |
| Impeller | VORTEX type in AISI 304 stainless steel |
| Double mechanical seal on pump side | Silicon carbide / Graphite / NBR |
| Double mechanical seal on motor side | Silicon carbide / Silicon carbide / NBR |
| Speed (rpm) | ≈ 2900 |
| Power (kW) | 0.75 |
| Power (HP) | 1 |
| Head (m) | 11 |
| Flow rate (l/min) | 400 |
| Voltage (V) | 230, 400 |
| Frequency (Hz) | 50 |
| Weight (kg) | 15.2 (single-phase), 14 (three-phase) |
| Max Liquid temperature (°C) | +40 °C |
| Max. immersion depth (m) | 5 |
| Insulation | Class F |
| Protection | IP X8 |

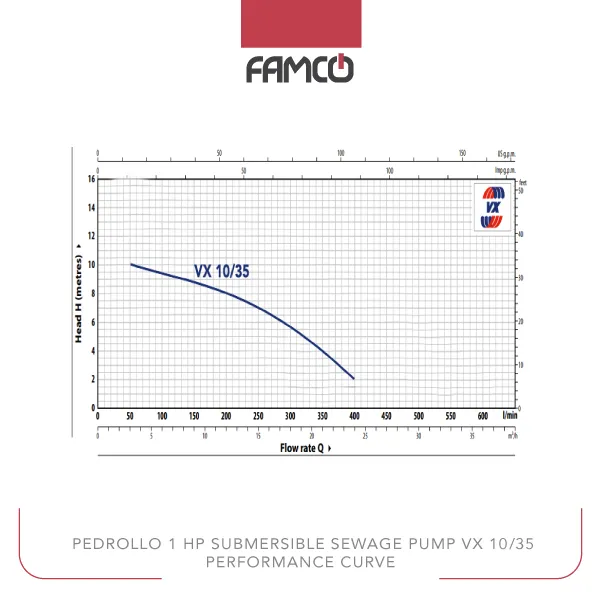

Pedrollo 1 HP Submersible Sewage Pump VX 10/35 Performance Data
| m³/h | 0 | 3 | 6 | 12 | 18 | 21 | 24 |
| l/min | 0 | 50 | 100 | 200 | 300 | 350 | 400 |
| H (metres) | 11 | 10 | 9.5 | 8 | 5.7 | 4 | 2 |
Pedrollo 1 HP Submersible Sewage Pump VX 10/35 Applications
- Water transfer in industrial facilities
- Drainage and sewage management
- Irrigation systems
- Domestic water pumping
Pedrollo 1 HP Submersible Sewage Pump VX 10/35 Benefits
- High durability with cast iron construction
- Corrosion-resistant stainless steel impeller
- Reliable double mechanical seals for leak prevention
- Versatile voltage options and high protection rating
Pedrollo 1 HP Submersible Sewage Pump VX 10/35 Price List
| No. | Name | Price |
| 1 | Pedrollo 1 HP Submersible Sewage Pump VX 10/35 Price | Contact us |
