Pedrollo 1 HP Submersible Multi-Impeller Pump TOP MULTI5 Specifications
This product has a power rating of 0.75 kW, which is equivalent to 1 HP. The head range of this Pedrollo pump is impressive, spanning from 6 to 41 meters, so it easily takes up different tasks. It operates on a single-phase voltage of 230 V and weighs 10.5 kg, making it relatively lightweight for easy handling. The maximum immersion depth of this product is 10 meters for deep water applications. The Pedrollo submersible pumps are known for their strength in different environments, and this one can handle liquid temperatures up to +40 °C. The draining capability is 35 mm, which is efficient for most tasks. The pump body is made from durable technopolymer, while the impellers are crafted from Noryl™, a material known for its strength. Additionally, it features mechanical seals on the motor side using high-quality materials like ceramic, graphite, and NBR. Since this product is double sealed, the pump side is secured with SiC, graphite, and NBR.
| Specification | Value |
| Power (kW) | 0.75 |
| Power (HP) | 1 |
| Head (m) | 6-41 |
| Voltage in single-phase (V) | 230 |
| Weight (kg) | 10.5 |
| Max. immersion depth (m) | 10 |
| Max. liquid temperature | +40 °C |
| Draining capability | 35 mm |
Pedrollo 1 HP Submersible Multi-Impeller Pump TOP MULTI5 Materials
- Pump body: Technopolymer
- Impellers: Noryl™
- Double mechanical seal on motor side: Ceramic/Graphite/NBR
- Double mechanical seal on Pump side: SiC/Graphite/NBR

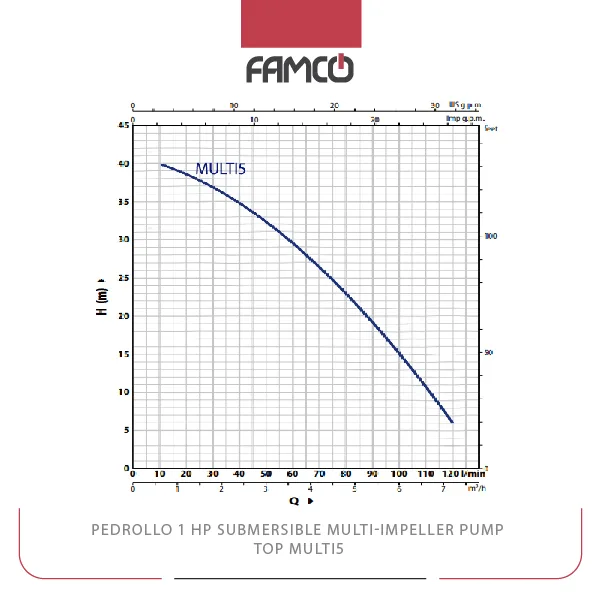

Pedrollo 1 HP Submersible Multi-Impeller Pump TOP MULTI5 Performance Curve
Pedrollo 1 HP Submersible Multi-Impeller Pump TOP MULTI5 Applications
- Water drainage in flooded areas
- Liquid transfer in industrial settings
- Irrigation systems for gardens and farms
- Sump pumping in basements
Pedrollo 1 HP Submersible Multi-Impeller Pump TOP MULTI5 Benefits
- Efficient power usage with 0.75 kW rating
- Durable construction with technopolymer body
- High performance with a head range of 6-41 meters
- Advanced sealing system for enhanced reliability
Pedrollo 1 HP Submersible Multi-Impeller Pump TOP MULTI5 Price List
| No. | Name | Price |
| 1 | Pedrollo 1 HP Submersible Multi-Impeller Pump TOP MULTI5 Price | Contact us |
