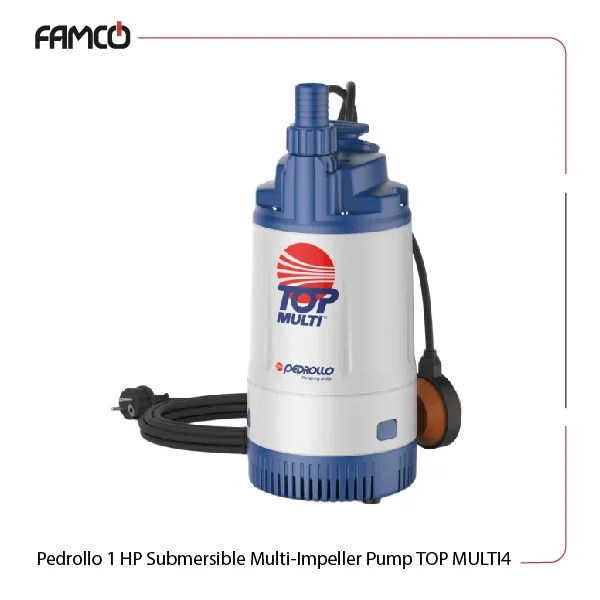

Pedrollo 1 HP Submersible Multi-Impeller Pump TOP MULTI4 Specifications
This pump features a power output of 0.75 kW, equivalent to 1 HP, making it suitable for various applications. This collection of Pedrollo pumps can achieve a head range of 8 to 52 meters, which allows for effective water movement. The pump operates on a single-phase voltage of 230 V and weighs 10.4 kg, making it relatively lightweight for easy handling. It can be immersed up to a maximum depth of 10 meters and can handle liquid temperatures up to +40 °C. The draining capability is 35 mm for efficient water removal. These submersible pumps are known for the sturdy materials used in their build and this product’s pump body is made from durable technopolymer, while the impellers are crafted from Noryl™, providing strength and longevity. Additionally, it features double mechanical seals on both the motor and pump sides, utilizing materials like ceramic, graphite, and NBR for enhanced reliability.
| Specification | Value |
| Power (kW) | 0.75 |
| Power (HP) | 1 |
| Head (m) | 8-52 |
| Voltage in single-phase (V) | 230 |
| Weight (kg) | 10.4 |
| Max. immersion depth (m) | 10 |
| Max. liquid temperature | +40 °C |
| Draining capability | 35 mm |
Pedrollo 1 HP Submersible Multi-Impeller Pump TOP MULTI4 Materials
- Pump body: Technopolymer
- Impellers: Noryl™Double
- Mechanical seal on motor side: Ceramic/Graphite/NBR
- Mechanical seal on Pump side: SIC/Graphite/NBR
Pedrollo 1 HP Submersible Multi-Impeller Pump TOP MULTI4 Technical Data
| m³/h | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.2 | 4.5 | 4.8 |
| l/min | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 75 | 80 |
| H (m) | 52 | 50 | 46.5 | 42 | 36.5 | 30.5 | 23.3 | 15.8 | 12 | 8 |

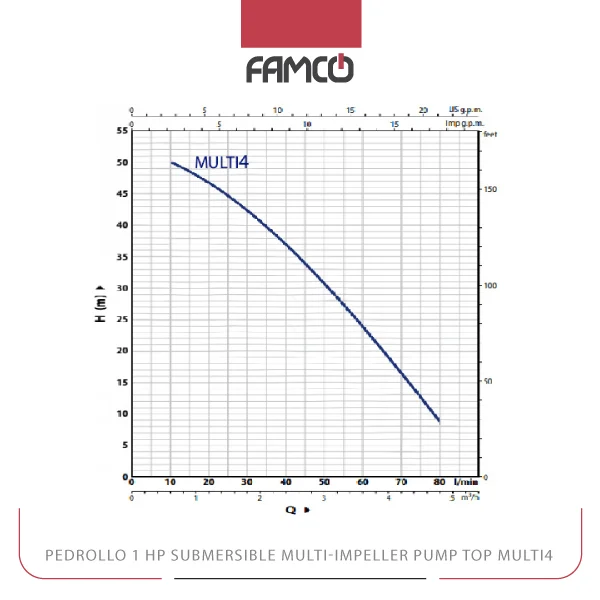

Pedrollo 1 HP Submersible Multi-Impeller Pump TOP MULTI4 Performance Curve
Pedrollo 1 HP Submersible Multi-Impeller Pump TOP MULTI4 Applications
- Residential water drainage
- Irrigation systems
- Construction site dewatering
- Aquarium water circulation
Pedrollo 1 HP Submersible Multi-Impeller Pump TOP MULTI4 Benefits
- Efficient water movement with a high head range
- Lightweight design for easy transport
- Durable materials ensure long-lasting performance
- Versatile applications for various environments
Pedrollo 1 HP Submersible Multi-Impeller Pump TOP MULTI4 Price List
| No. | Name | Price |
| 1 | Pedrollo 1 HP Submersible Multi-Impeller Pump TOP MULTI4 Price | Contact us |
