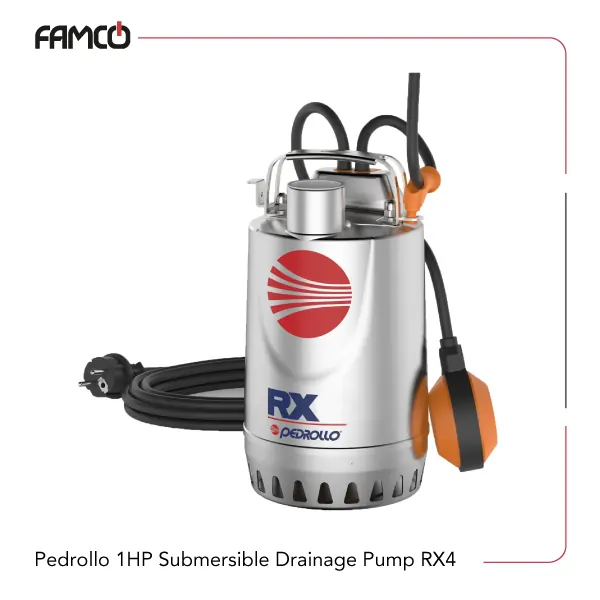

Pedrollo 1HP Submersible Drainage Pump RX4

Pedrollo 1HP Submersible Drainage Pump RX4 Specifications

Pedrollo 1HP submersible drainage pump operates on a voltage of 230V for single-phase and 400V for three-phase systems, with a frequency of 50 Hz. Users incorporate this product into drainage, irrigation, and water transfer setups with ease. This Pedrollo submersible pump is equipped with a powerful motor and efficient design allow it to handle significant flow rates (16.2 m3/h or 270 l/min) and head heights of up to 16 meters. The product’s powerful construction ensures reliability, while the advanced sealing technology protects it against leaks and enhances durability. With its ability to operate in challenging conditions, this drainage pump is a versatile solution for anyone needing efficient water management. The insulation class is rated at F, ensuring durability and safety. With an IP X8 protection rating, this pump, much like the rest of this series of Pedrollo pumps, can withstand immersion depths of up to 10 meters. The product can handle liquid temperatures up to +50 °C, and for short durations, this submersible pump can manage temperatures up to +90 °C. It has a bottom drainage level capability of up to 25 mm and can handle solid contents of up to 10 mm. The double mechanical seals on both the motor and pump sides are made from high-quality materials, ensuring longevity. The impeller and motor shaft are crafted from stainless steel, providing added strength and resistance to corrosion.

Specification	Value
Power (kW)	0.75
Power (HP)	1
Head (m)	4.2-16
Max. flow rate (m³/h)	16.2
Max. flow rate (l/min)	270
Weight in single-phase (V)	14.3
Weight in three-phase (V)	13.3
Voltage in single-phase (V)	230
Voltage in three-phase (V)	400
Frequency (Hz)	50
Insulation class	F
Protection rating	IP X8
Max. immersion depth (m)	10
Max. liquid temperature	+50 °C (up to +90 °C up to 3 minutes max)
Bottom drainage level	up to 25 mm
Maximum solid content	10 mm

Pedrollo 1HP Submersible Drainage Pump RX4 Materials

• Double mechanical seal on motor side: Silicon carbide / Graphite / NBR
• Double mechanical seal on Pump side: Silicon carbide/Silicon carbide/NBR
• Impeller: Stainless steel
• Motor shaft: Stainless steel

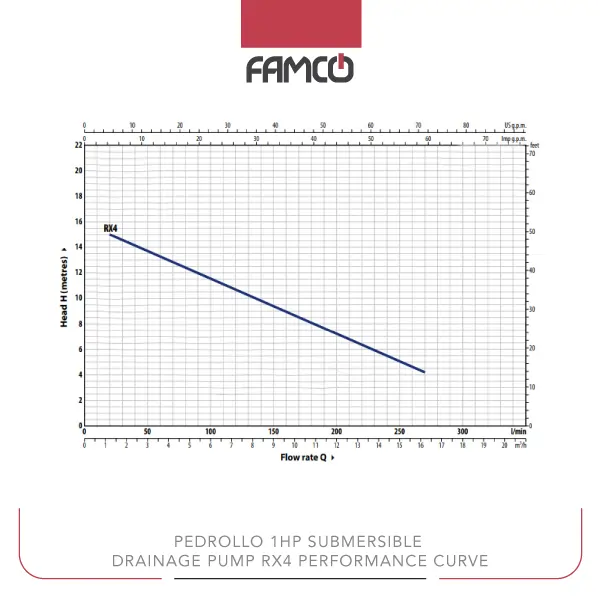

Pedrollo 1HP Submersible Drainage Pump RX4 Performance Data

m³/h	0	1.2	3.6	6	7.8	9.6	11.4	13.2	14.4	16.2
l/min	0	20	60	100	130	160	190	220	240	270
H metres	16	15	13.3	11.5	10.3	9	7.7	6.4	5.5	4.2

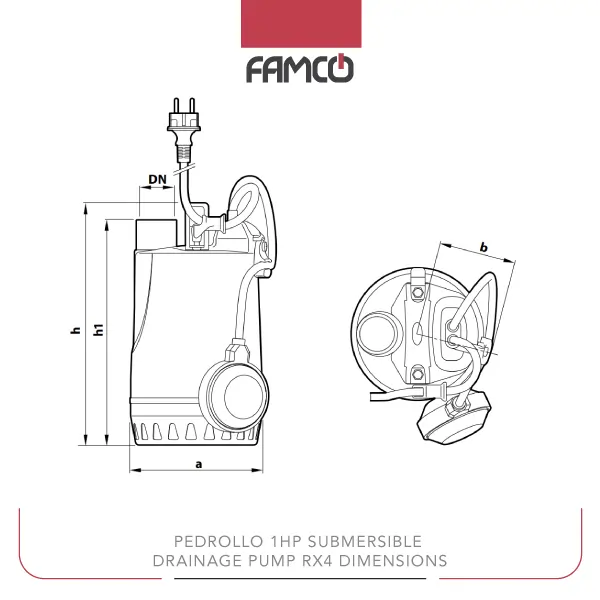

Pedrollo 1HP Submersible Drainage Pump RX4 Dimensions

Pedrollo 1HP Submersible Drainage Pump RX4 Applications

• Drainage of flooded areas
• Irrigation systems for agriculture
• Water transfer in construction sites
• Pumping wastewater in residential settings



Pedrollo 1HP Submersible Drainage Pump RX4 Benefits

• High efficiency with low energy consumption
• Durable construction with stainless steel components
• Ability to handle solids up to 10 mm
• Versatile applications for various water management needs



Pedrollo 1HP Submersible Drainage Pump RX4 Price List

No.	Name	Price
1	Pedrollo 1HP Submersible Drainage Pump RX4 Price	Contact us
