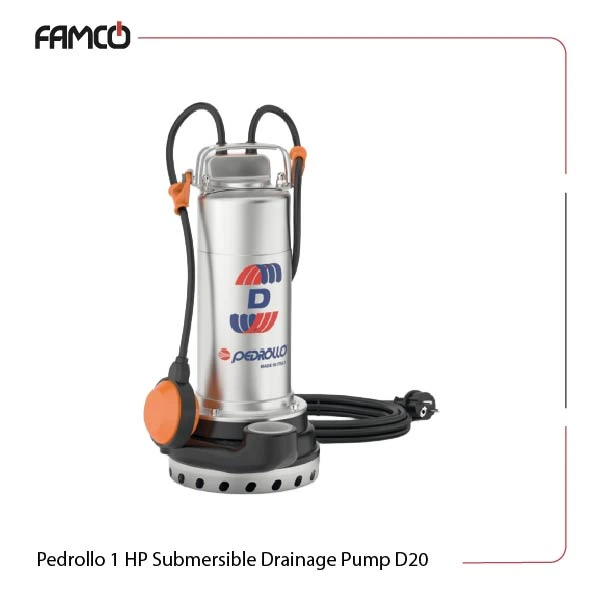

Pedrollo 1 HP Submersible Drainage Pump D20 Specifications
This pump is a powerful solution for various water management tasks. Its powerful motor takes care of draining, irrigation, and other water movement tasks. The product’s design allows for deep immersion in residential and industrial use. This Pedrollo submersible pump’s durable construction ensures it handles challenging conditions, while the advanced sealing technology protects it against leaks and wear. Overall, this submersible pump is dependable for anyone needing effective water handling. This model is provided in both single- or three-phase versions. The insulation class is rated F to ensure the pump operates safely. The pump has an IP X8 protection rating, so it operates when submerged up to 5 meters deep. The D20, as a drainage pump, has a bottom draining level of up to 17 mm and can handle liquid temperatures up to +40 °C . The maximum solid content it can manage is 10 mm. Additionally, it features double mechanical seals on both the motor and pump sides, ensuring longevity and efficiency. The pump body is made of powerful cast iron, enhancing its strength and reliability.
| Specification | Value |
| Power (kW) | 0.75 |
| Power (HP) | 1 |
| Head (m) | 8-20 |
| Voltage in single-phase (V) | 230 |
| Voltage in three-phase (V) | 400 |
| Weight in single-phase (kg) | 14 |
| Weight in three-phase (kg) | 12.9 |
| Frequency (Hz) | 50 |
| Insulation class | F |
| Protection rating | IP X8 |
| Max. immersion depth (m) | 5 |
| Max. liquid temperature | +40 °C |
| Bottom drainage level | up to 17 mm |
| Maximum solid content | 10 mm |
Pedrollo 1 HP Submersible Drainage Pump D20 Materials
- Double mechanical seal on motor side: SiC / Graphite / NBR
- Double mechanical seal on Pump side: SiC / SiC / NBR
- Pump body: cast iron
Pedrollo 1 HP Submersible Drainage Pump D20 Technical Data
| m³/h | 0 | 1.5 | 3.0 | 4.5 | 6.0 | 7.5 | 9.0 | 10.5 | 12.0 | 13.2 | 15.0 |
| l/min | 0 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 220 | 250 |
| H (m) | 20 | 19 | 18.5 | 17.5 | 16.5 | 15.5 | 14.3 | 13 | 11.5 | 10 | 8 |

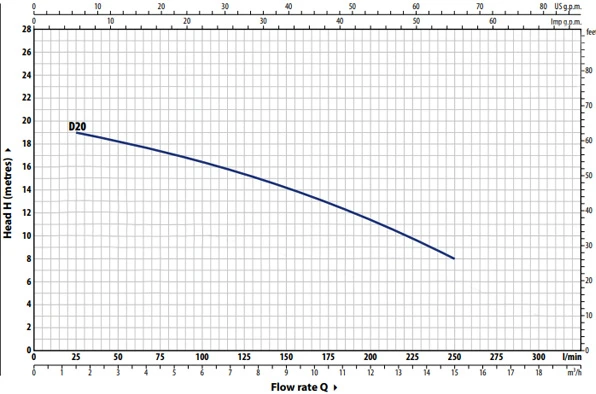

Pedrollo 1 HP Submersible Drainage Pump D20 Performance Curve
Pedrollo 1 HP Submersible Drainage Pump D20 Applications
- Irrigation systems for gardens and farms
- Drainage of flooded areas or basements
- Water transfer in industrial processes
- Aquarium and pond water circulation
Pedrollo 1 HP Submersible Drainage Pump D20 Benefits
- High efficiency with low power consumption
- Durable construction for long-lasting use
- Versatile operation in various environments
- Advanced sealing technology prevents leaks
Pedrollo 1 HP Submersible Drainage Pump D20 Price List
| No. | Name | Price |
| 1 | Pedrollo 1 HP Submersible Drainage Pump D20 Price | Contact us |
