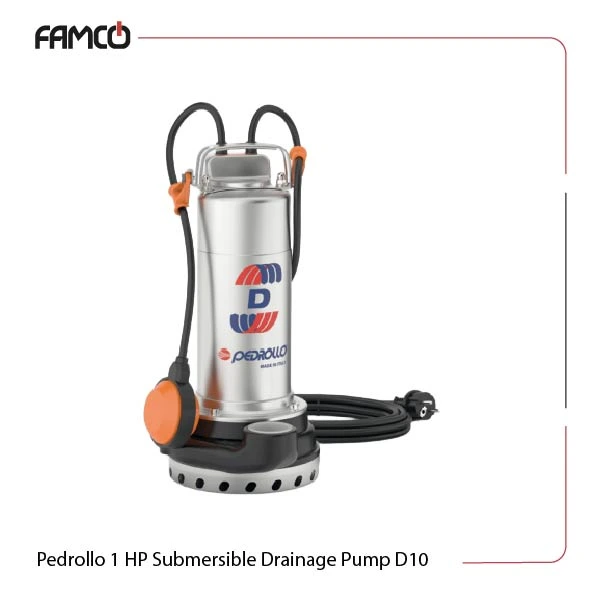

Pedrollo 1 HP Submersible Drainage Pump D10 Specifications
This pump is a reliable solution for various water management tasks. This Pedrollo product has a powerful motor and a sturdy design. When it comes to applications, this submersible pump works well for draining, irrigation, and other applications. Its ability to handle solids and operate at significant depths has made it suitable for both residential and industrial use. The pump’s high protection rating ensures it withstands harsh conditions. The pump operates at a frequency of 50 Hz and features an insulation class of F fir safer operations, which is expected from a drainage pump. A protection rating of IP X8 is suitable for submersions of up to 5 meters. The maximum liquid temperature it can handle is +40 °C, so it tolerates most environments and applications. It can drain down to a level of 17 mm and can handle solids up to 10 mm in size. The double mechanical seals on both the motor and pump sides, made from high-quality materials like SiC and NBR, have contributed to a . To achieve utomost durability, its pump body is made from cast iron.
| Specification | Value |
| Power (kW) | 0.75 |
| Power (HP) | 1 |
| Head (m) | 3-16 |
| Voltage in single-phase (V) | 230 |
| Voltage in three-phase (V) | 400 |
| Weight in single-phase(kg) | 14 |
| Weight in three-phase(kg) | 12.9 |
| Frequency (Hz) | 50 |
| Insulation class | F |
| Protection rating | IP X8 |
| Max. immersion depth (m) | 5 |
| Max. liquid temperature | +40 °C |
| Bottom drainage level | up to 17 mm |
| Maximum solid content | 10 mm |
Pedrollo 1 HP Submersible Drainage Pump D10 Materials
- Double mechanical seal on motor side: SiC / Graphite / NBR
- Double mechanical seal on Pump side: SiC / SiC / NBR
- Pump body: cast iron

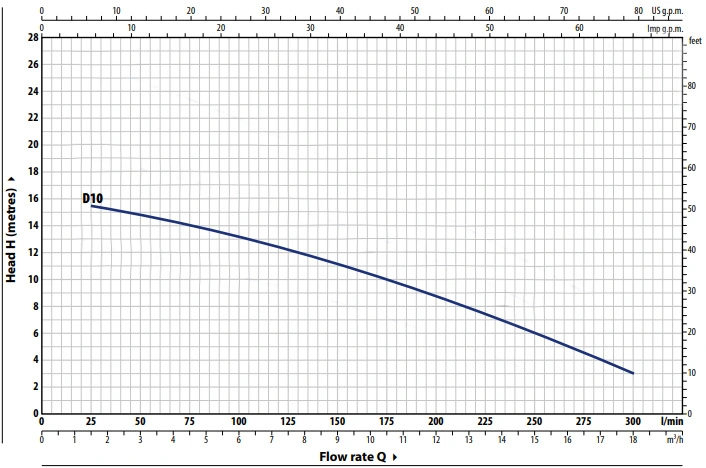

Pedrollo 1 HP Submersible Drainage Pump D10 Performance Curve
Pedrollo 1 HP Submersible Drainage Pump D10 Technical Data
| m³/h | 0 | 1.5 | 3.0 | 4.5 | 6.0 | 7.5 | 9.0 | 10.5 | 12.0 | 13.2 | 15.0 | 16.5 | 18.0 |
| l/min | 0 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 220 | 250 | 275 | 300 |
| H (m) | 16 | 15.5 | 15 | 14 | 13.2 | 12.2 | 11.2 | 10 | 8.8 | 7.8 | 6 | 4.5 | 3 |
Pedrollo 1 HP Submersible Drainage Pump D10 Applications
- Residential drainage systems
- Irrigation for gardens and farms
- Industrial water management
- Flood control and emergency drainage
Pedrollo 1 HP Submersible Drainage Pump D10 Benefits
- Efficient power usage with 0.75 kW output
- Durable construction with cast iron body
- Handles solids up to 10 mm for versatile use
- High protection rating for reliable underwater operation
Pedrollo 1 HP Submersible Drainage Pump D10 Price List
| No. | Name | Price |
| 1 | Pedrollo 1 HP Submersible Drainage Pump D10 Price | Contact us |
