Pedrollo 1 HP Submersible Borehole Pump 4SR 1.5/15-S Specifications
Pedrollo 1 HP submersible borehole pump 4SR 1.5/15-S has a power output of 0.75 kW, equivalent to 1 HP, making it suitable for various water transfer tasks. It can handle a maximum flow rate of 2.7 cubic meters per hour, which translates to 45 liters per minute, ideal for moderate water movement. The maximum head height it can achieve is 109 meters, allowing it to lift water efficiently over significant distances. The connection size is 1 inch and 1/4, ensuring compatibility with standard piping systems. Weighing 13.8 kilograms, it is relatively lightweight for easy handling and installation. This Pedrollo submersible pump is designed to operate with liquids at temperatures up to 40°C, making it versatile for different water types. It can be submerged up to 15 meters deep, suitable for deep well applications or pond pumping. It can tolerate sand content up to 200 grams per cubic meter, which is useful in environments with some sediment. The pump supports both single-phase and three-phase power supplies, providing flexibility for various electrical setups.
| Specification | Value |
| Power (kW) | 0.75 |
| Power (HP) | 1 |
| Maximum Flow rate (m3/h) | 2.7 |
| Maximum Flow rate (l/min) | 45 |
| Maximum Head (m) | 109 |
| DNM | 1″ 1/4 |
| Weight (kg) | 13.8 |
| Liquid temperature | up to 40°C |
| Submersion depth | 15 meters |
| Sand content | 200 g/m3 |
| Phase | Single- and three-phase |

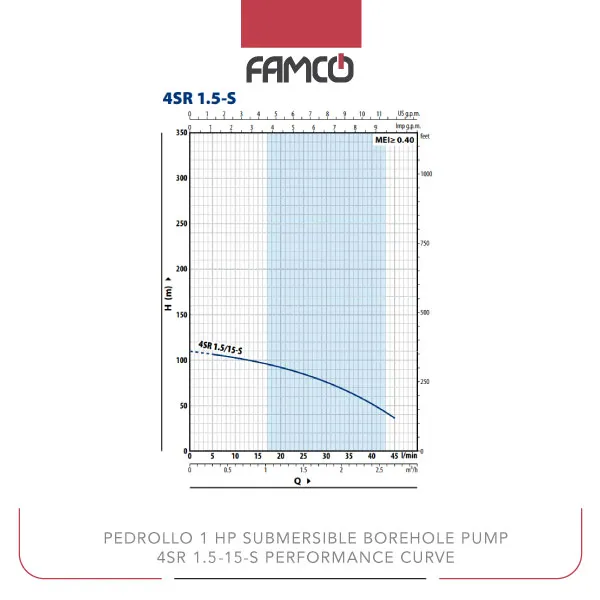

Pedrollo 1 HP Submersible Borehole Pump 4SR 1.5/15-S Performance Data
| Q (m3/h) | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 |
| Q (l/min) | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 |
| H (m) | 109 | 106 | 102 | 97 | 92 | 84 | 76 | 64.5 | 51.5 | 36 |
Pedrollo 1 HP Submersible Borehole Pump 4SR 1.5/15-S Applications
- Deep well water extraction
- Irrigation in agriculture
- Drainage and flood control
- Water transfer in industrial processes
Pedrollo 1 HP Submersible Borehole Pump 4SR 1.5/15-S Benefits
- High head capacity for deep water lifting
- Flexible power options with single and three-phase support
- Lightweight and easy to install
- Suitable for water with some sediment content
Pedrollo 1 HP Submersible Borehole Pump 4SR 1.5/15-S Price List
| No. | Name | Price |
| 1 | Pedrollo 1 HP Submersible Borehole Pump 4SR 1.5/15-S Price | Contact us |
