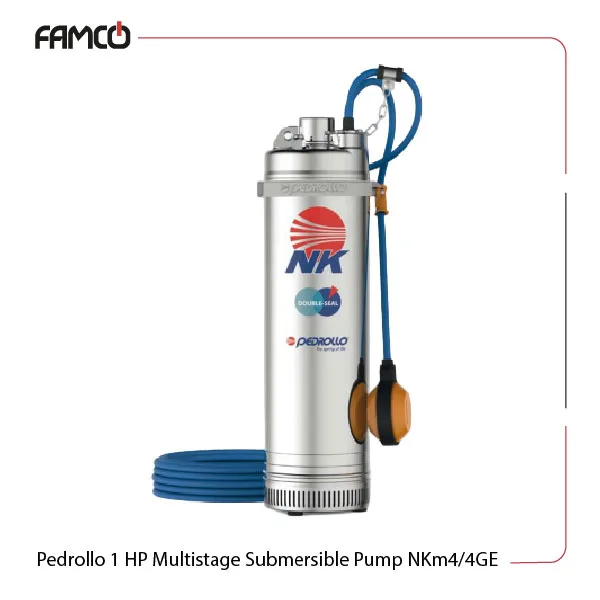

Pedrollo 1 HP Multistage Submersible Pump NKm4/4GE Specifications
This product features a powerful power output of 0.75 kW (1 HP) and operates efficiently within a head range of 16 to 53 meters. This Pedrollo pump is designed for single-phase voltage of 230 V, and three-phase voltage of 400 V. This submersible pump is relatively lightweight, weighing 15.2 kg or 14.1 kg for single or three-phase models, respectively. For three-phase applications, it weighs 14.1 kg. The device runs on a frequency of 50 Hz and is classified under insulation class F for safe operation. This product’s protection rating of IP X8 withstands immersion depths of up to 20 meters. The maximum liquid temperature it can handle is +40 °C, and it can manage a sand content of up to 150 g/m³. The motor side features a double mechanical seal made of ceramic, graphite, and NBR, while the pump side uses silicon carbide, graphite, and NBR for enhanced durability.
| Specification | Value |
| Power (kW) | 0.75 |
| Power (HP) | 1 |
| Head (m) | 16-53 |
| Voltage in single-phase (V) | 230 |
| Voltage in three-phase (V) | 400 |
| Weight in single-phase(kg) | 15.2 |
| Weight in three-phase(kg) | 14.1 |
| Frequency (Hz) | 50 |
| Insulation class | F |
| Protection rating | IP X8 |
| Max. immersion depth (m) | 20 |
| Max. liquid temperature | +40 °C |
| Maximum sand content | 150 g/m³ |
Pedrollo 1 HP Multistage Submersible Pump NKm4/4GE Materials
- Double mechanical seal on motor side: Ceramic/Graphite/NBR
- Double mechanical seal on Pump side: Silicon carbide/Graphite/NBR
Pedrollo 1 HP Multistage Submersible Pump NKm4/4GE Technical Data
| M3/h | 0 | 0.6 | 1.2 | 2.4 | 3.0 | 3.6 | 4.2 | 4.8 | 6.0 | 6.6 | 7.2 |
| l/min | 0 | 10 | 20 | 40 | 50 | 60 | 70 | 80 | 100 | 110 | 120 |
| H (m) | 53 | 53 | 52 | 49 | 46.5 | 44 | 41 | 37 | 28 | 22.2 | 16 |

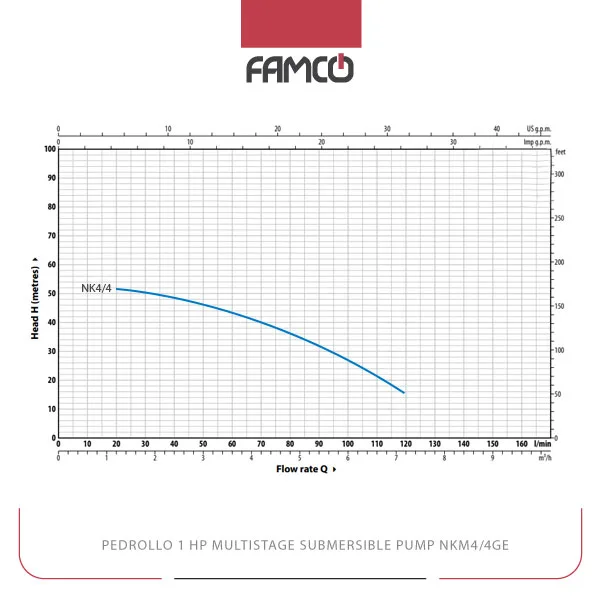

Pedrollo 1 HP Multistage Submersible Pump NKm4/4GE Performance Curve
Pedrollo 1 HP Multistage Submersible Pump NKm4/4GE Applications
- Irrigation systems for agriculture
- Water supply for residential buildings
- Drainage in construction sites
- Industrial processes requiring fluid transfer
Pedrollo 1 HP Multistage Submersible Pump NKm4/4GE Benefits
- High efficiency with low power consumption
- Durable construction for long-lasting use
- Versatile applications across different sectors
- Advanced sealing technology to prevent leaks
Pedrollo 1 HP Multistage Submersible Pump NKm4/4GE Price List
| No. | Name | Price |
| 1 | Pedrollo 1 HP Multistage Submersible Pump NKm4/4GE Price | Contact us |
