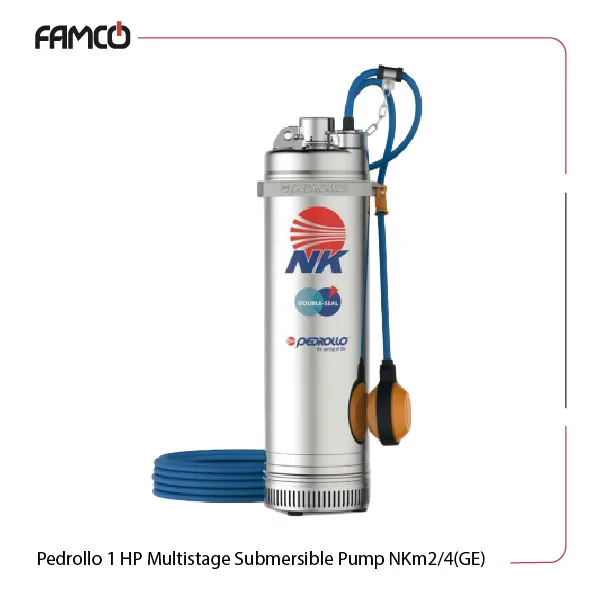

Pedrollo 1 HP Multistage Submersible Pump NKm2/4GE Specifications
This product features a power output of 0.75 kW (1 HP) and operates efficiently within a head range of 32 to 64.5 meters. This Pedrollo pump is designed for both single-phase (230 V) and three-phase (400 V) power supply for various applications. The weight is 15.2 kg for single-phase and 14.4 kg for three-phase models. Operating at a frequency of 50 Hz, this product has an insulation class of F and a protection rating of IP X8. This series of submersible pumps have considerable immersion depth toleration. This one can be immersed up to 20 meters below sea level and handle liquid temperatures up to +40 °C. It also manages a maximum sand content of 150 g/m. The double mechanical seals on both the motor and pump sides enhance reliability and longevity, utilizing materials like ceramic, graphite, and NBR for optimal performance.
| Specification | Value |
| Power (kW) | 0.75 |
| Power (HP) | 1 |
| Head (m) | 32-64.5 |
| Voltage in single-phase (V) | 230 |
| Voltage in three-phase (V) | 400 |
| Weight in single-phase (kg) | 15.2 |
| Weight in three-phase (kg) | 14.4 |
| Frequency (Hz) | 50 |
| Insulation class | F |
| Protection rating | IP X8 |
| Max. immersion depth (m) | 20 |
| Max. liquid temperature | +40 °C |
| Maximum sand content | 150 g/m³ |
Pedrollo 1 HP Multistage Submersible Pump NKm2/4GE Materials
- Double mechanical seal on motor side: Ceramic/Graphite/NBR
- Double mechanical seal on Pump side: Silicon carbide/Graphite/NBR
Pedrollo 1 HP Multistage Submersible Pump NKm2/4GE Technical Data
| M3/h | 0 | 0.6 | 1.2 | 2.4 | 3.0 | 3.6 | 4.2 | 4.8 |
| l/min | 0 | 10 | 20 | 40 | 50 | 60 | 70 | 80 |
| H (m) | 64.5 | 62.5 | 60.5 | 54.5 | 50.5 | 46 | 39.5 | 32 |

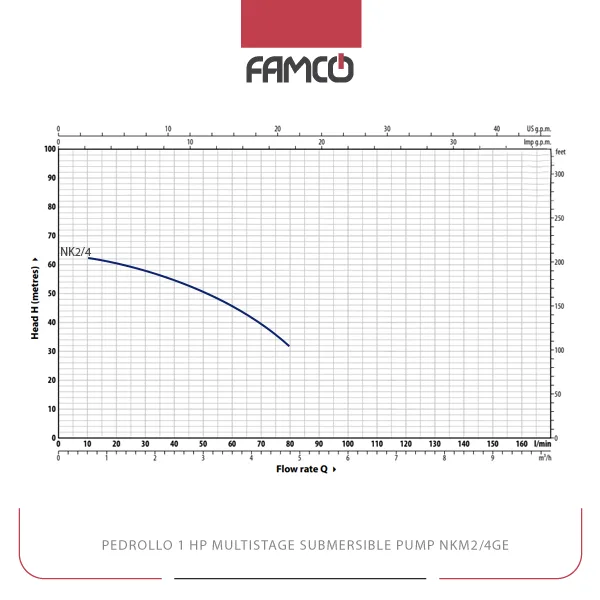

Pedrollo 1 HP Multistage Submersible Pump NKm2/4GE Performance Curve
Pedrollo 1 HP Multistage Submersible Pump NKm2/4GE Applications
- Water transfer in residential settings
- Irrigation systems for agriculture
- Drainage in construction sites
- Pumping wastewater in industrial applications
Pedrollo 1 HP Multistage Submersible Pump NKm2/4GE Benefits
- High efficiency with low power consumption
- Durable construction with double mechanical seals
- Versatile for various applications and environments
- Reliable performance with high immersion depth
Pedrollo 1 HP Multistage Submersible Pump NKm2/4GE Price List
| No. | Name | Price |
| 1 | Pedrollo 1 HP Multistage Submersible Pump NKm2/4GE Price | Contact us |
