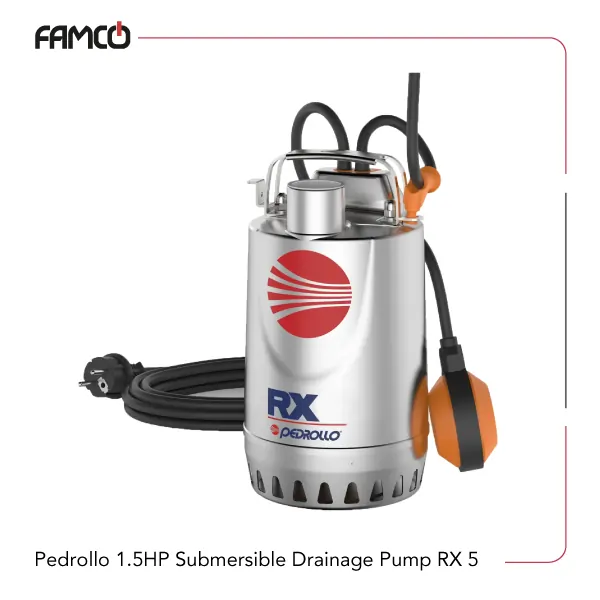

Pedrollo 1.5HP Submersible Drainage Pump RX 5 Specifications
Pedrollo 1.5HP submersible drainage pump RX 5 operates at 1.1 kW (1.5 HP) and is designed for efficient water movement. Reaching greater heights is a parameter that Pedrollo submersible pumps excel in. This Pedrollo pump can handle a head range of 5 to 20.5 meters, making it suitable for various applications. The maximum flow rate is impressive, reaching 19.2 m³/h or 320 l/min. Weighing 15.6 kg, this Pedrollo submersible pump is manageable yet powerful. It operates on a single-phase voltage of 230V or a three-phase voltage of 400V, with a frequency of 50 Hz. The insulation class of this product, much like other Pedrollo pumps, is rated F, so they are more durable. With an IP X8 protection rating, it can withstand immersion depths of up to 10 meters. This pump can handle liquid temperatures up to +50 °C, and for short durations, it can tolerate up to +90 °C. The bottom drainage level is effective down to 25 mm, and it can manage solid content up to 10 mm. The double mechanical seals on both the motor and pump sides are made from high-quality materials like silicon carbide and NBR. The impeller and motor shaft are crafted from stainless steel for enhanced longevity. This model is provided in both single- or three-phase versions.
| Specification | Value |
| Power (kW) | 1.1 |
| Power (HP) | 1.5 |
| Head (m) | 5-20.5 |
| Max. flow rate (m³/h) | 19.2 |
| Max. flow rate (l/min) | 320 |
| Weight (kg) | 15.6 |
| Voltage in single-phase (V) | 230 |
| Voltage in three-phase (V) | 400 |
| Frequency (Hz) | 50 |
| Insulation class | F |
| Protection rating | IP X8 |
| Max. immersion depth (m) | 10 |
| Max. liquid temperature | +50 °C (up to +90 °C up to 3 minutes max) |
| Bottom drainage level | up to 25 mm |
| Maximum solid content | 10 mm |

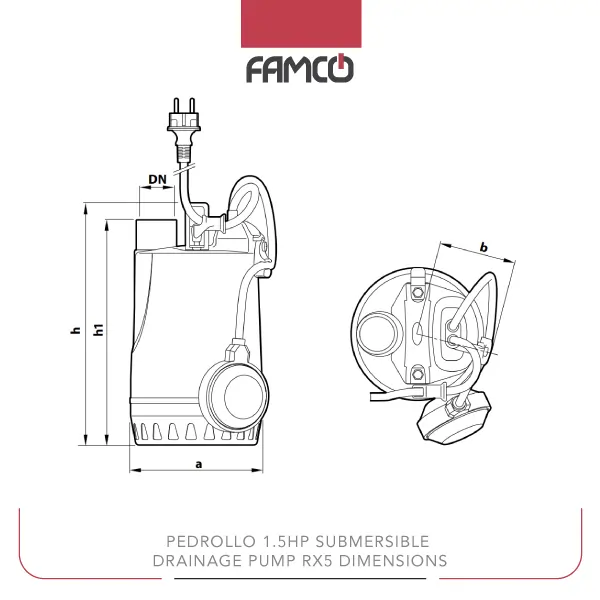

Pedrollo 1.5HP Submersible Drainage Pump RX5 Dimensions

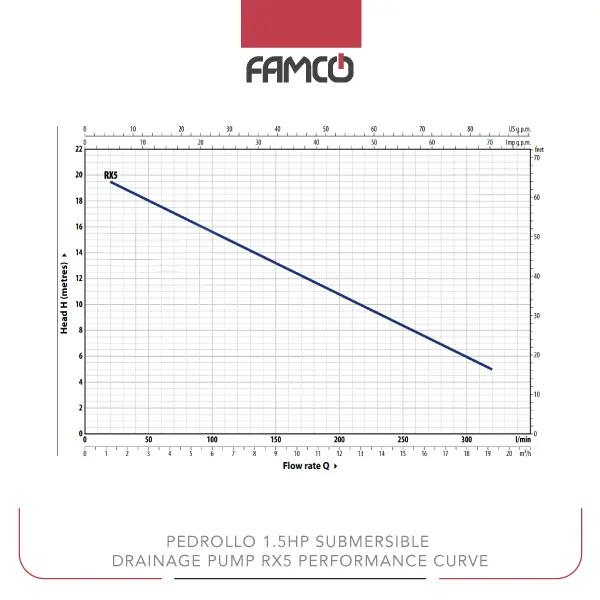

Pedrollo 1.5HP Submersible Drainage Pump RX5 Performance Data
| m³/h | 0 | 1.2 | 3.6 | 6 | 7.8 | 9.6 | 11.4 | 13.2 | 14.4 | 16.2 | 18 | 19.2 |
| l/min | 0 | 20 | 60 | 100 | 130 | 160 | 190 | 220 | 240 | 270 | 300 | 320 |
| H metres | 20.5 | 19.5 | 17.6 | 15.6 | 14.2 | 12.7 | 11.3 | 9.8 | 9 | 7.4 | 6 | 5 |
Pedrollo 1.5HP Submersible Drainage Pump RX5 Materials
- Double mechanical seal on motor side: Silicon carbide / Graphite / NBR
- Double mechanical seal on Pump side: Silicon carbide/Silicon carbide/NBR
- Impeller: Stainless steel
- Motor shaft: Stainless steel
Pedrollo 1.5HP Submersible Drainage Pump RX5 Applications
- Residential drainage systems
- Irrigation for gardens and farms
- Industrial water transfer
- Flood control and emergency drainage
Pedrollo 1.5HP Submersible Drainage Pump RX5 Benefits
- High efficiency with a strong flow rate
- Durable construction with stainless steel components
- Versatile applications for various water management needs
- Reliable performance with advanced sealing technology
Pedrollo 1.5HP Submersible Drainage Pump RX5 Price List
| No. | Name | Price |
| 1 | Pedrollo 1.5HP Submersible Drainage Pump RX5 Price | Contact us |
