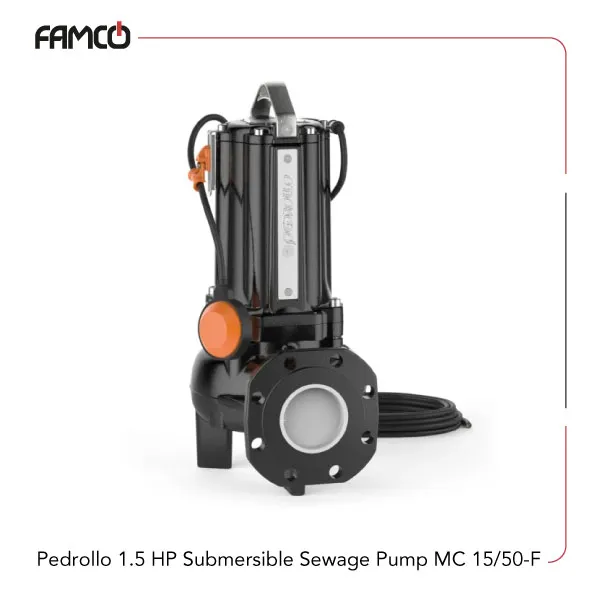

Pedrollo 1.5 HP Submersible Sewage Pump MC 15/50-F Specifications
Pedrollo 1.5 HP submersible sewage pump MC 15/50-F offers a powerful 1.5 HP (1.1 kW) motor, capable of delivering a maximum flow rate of 48 cubic meters per hour or 800 liters per minute. It can generate a maximum head of 16 meters, making it suitable for various water transfer tasks. The pump is designed to operate at depths up to 10 meters below water level, provided an appropriately sized power cable is used. It handles liquid temperatures up to +40 °C, ensuring versatility for different environments. Additionally, this Pedrollo sewage pump can transfer suspended solids up to 50 mm in diameter, making it effective for pumping water with debris or solids. The minimum immersion required is 320 mm, which means it can be submerged in shallow or deep water depending on the application. Overall, this pump combines high performance with durability, ideal for demanding water transfer and drainage tasks in industrial, agricultural, or construction settings.
| Specification | Value |
| Power (HP) | 1.5 |
| Power (kW) | 1.1 |
| Maximum Flow rate (m3/h) | 48 |
| Maximum Flow rate (l/min) | 800 |
| Maximum head (m) | 16 |
| Depth below water level | up to 10 m (with an appropriately sized power cable) |
| Liquid temperature | up to +40 °C |
| Suspended solids transfer | up to Ø 50 mm |
| Minimum immersion | 320 mm |

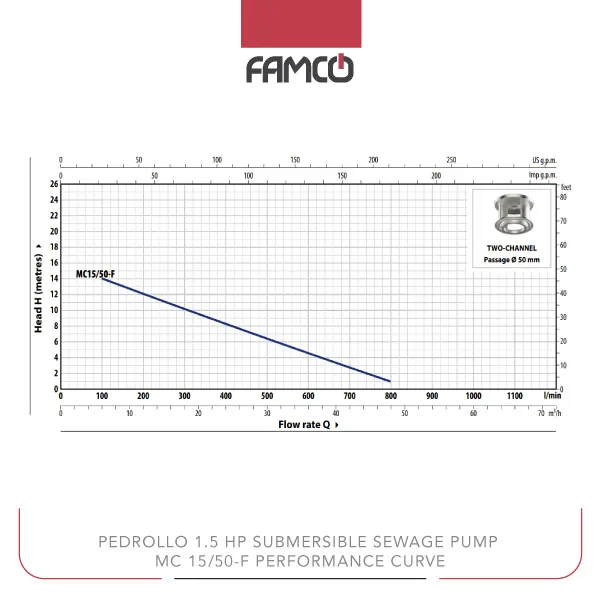

Pedrollo 1.5 HP Submersible Sewage Pump MC 15/50-F Performance Data
| Q (m3/h) | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 48 |
| Q (l/min) | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 |
| Head (m) | 16 | 14 | 12.5 | 10.5 | 8.5 | 6.5 | 4.5 | 3 | 1 |
Pedrollo 1.5 HP Submersible Sewage Pump MC 15/50-F Applications
- Water drainage in construction sites
- Irrigation and agricultural water transfer
- Industrial fluid handling
- Flood control and emergency water removal
Pedrollo 1.5 HP Submersible Sewage Pump MC 15/50-F Benefits
- High flow rate for quick water transfer
- Handles solids up to 50 mm, reducing clogging
- Operates at depths up to 10 meters
- Durable and reliable for tough environments
Pedrollo 1.5 HP Submersible Sewage Pump MC 15/50-F Price List
| No. | Name | Price |
| 1 | Pedrollo 1.5 HP Submersible Sewage Pump MC 15/50-F Price | Contact us |
