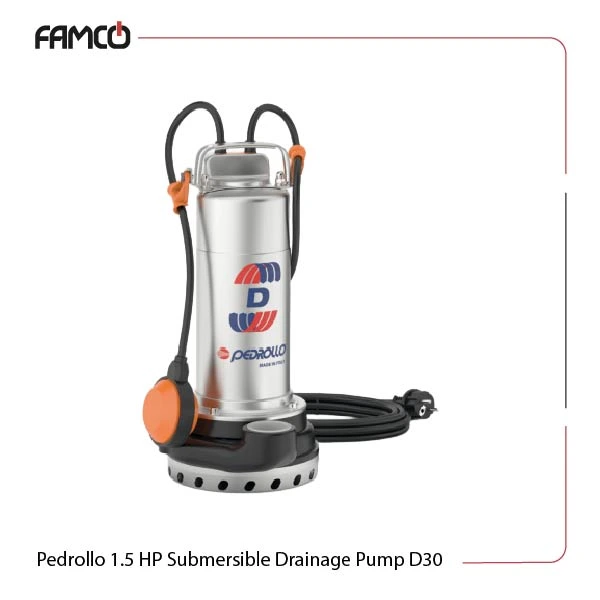

Pedrollo 1.5 HP Submersible Drainage Pump D30 Specifications
Weighing 16 kg for single-phase and 17.4 kg for three-phase, this Pedrollo pump is relatively lightweight. It is capable of lifting water to considerable heights of up to 26 meters, which shows this Pedrollo pump has significant potential in drainage, irrigation, and other applications. The frequency much like other Pedrollo submersible pumps is set at 50 Hz, ensuring compatibility with standard electrical systems. All thanks to its insulation class of F, this drainage pump provides reliable performance under various conditions. The protection rating of IP X8 indicates that it is waterproof and can be submerged up to 5 meters. It can handle liquid temperatures up to +40 °C and has a bottom drainage level of up to 17 mm. This submersible pump can manage solid content up to 10 mm, making it versatile for different liquids. The mechanical seal consists of ceramic, SiC, and NBR, ensuring durability. The pump body is made of cast iron for added strength and longevity.
| Specification | Value |
| Power (kW) | 1.1 |
| Power (HP) | 1.5 |
| Head (m) | 9-26 |
| Max. flow rate (m³/h) | 16.5 |
| Max. flow rate (l/min ) | 275 |
| Voltage in single-phase (V) | 230 |
| Voltage in three-phase (V) | 400 |
| Weight in single-phase(kg) | 16 |
| Weight in three-phase(kg) | 17.4 |
| Frequency (Hz) | 50 |
| Insulation class | F |
| Protection rating | IP X8 |
| Max. immersion depth (m) | 5 |
| Max. liquid temperature | +40 °C |
| Bottom drainage level | up to 17 mm |
| Maximum solid content | 10 mm |
Pedrollo 1.5 HP Submersible Drainage Pump D30 Materials
- mechanical seal on motor side: Ceramic / SiC / NBR
- Pump body: cast iron
Pedrollo 1.5 HP Submersible Drainage Pump D30 Technical Data
| m³/h | 0 | 1.5 | 3.0 | 4.5 | 6.0 | 7.5 | 9.0 | 10.5 | 12.0 | 13.2 | 15.0 | 16.5 |
| l/min | 0 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 220 | 250 | 275 |
| H (m) | 26 | 26 | 25 | 23.5 | 22 | 20.5 | 18.7 | 17 | 15 | 13.5 | 11 | 9 |

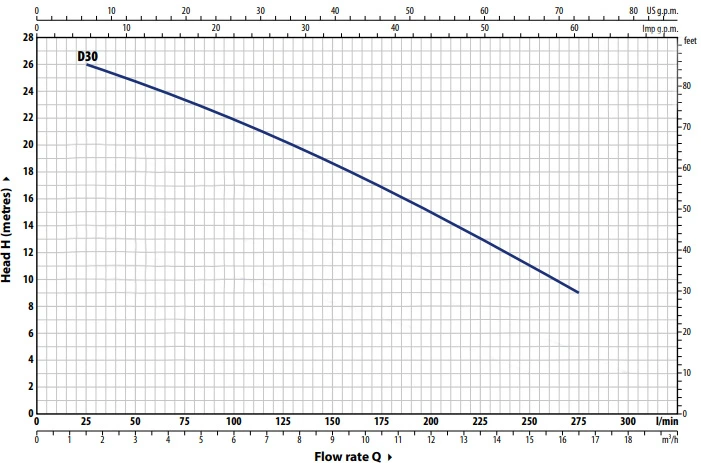

Pedrollo 1.5 HP Submersible Drainage Pump D30 Performance Curve
Pedrollo 1.5 HP Submersible Drainage Pump D30 Applications
- Drainage of flooded areas
- Irrigation systems
- Water transfer in industrial settings
- Aquarium and pond maintenance
Pedrollo 1.5 HP Submersible Drainage Pump D30 Benefits
- High efficiency with 1.1 kW power
- Durable cast iron construction
- Submersible design for versatile use
- Handles solids up to 10 mm easily
Pedrollo 1.5 HP Submersible Drainage Pump D30 Price List
| No. | Name | Price |
| 1 | Pedrollo 1.5 HP Submersible Drainage Pump D30 Price | Contact us |
