Pedrollo 1.5 HP Submersible Borehole Pump 4SR 1.5/22-S Specifications
Pedrollo submersible borehole pump 4SR 1.5/22-S delivers 1.1 kW (1.5 HP) of power. It can manage a maximum flow rate of 2.7 cubic meters per hour (45 liters per minute), providing efficient liquid movement. The pump can achieve a maximum head of 158 meters, allowing it to lift water over significant vertical distances. Equipped with a DN 1¼-inch connection, it is compatible with standard piping systems. Weighing 16.2 kg, the pump is portable and easy to install or maintain. This Pedrollo sumersible pump is designed to handle liquids up to 40°C and can be submerged up to 15 meters deep, making it ideal for sump, drainage, or other submersible applications. The device can tolerate sand content up to 200 grams per cubic meter, which helps it perform reliably in environments with some sediment. It supports both single-phase and three-phase power supplies, offering flexibility for different electrical setups.
| Specification | Value |
| Power (kW) | 1.1 |
| Power (HP) | 1.5 |
| Maximum Flow rate (m3/h) | 2.7 |
| Maximum Flow rate (l/min) | 45 |
| Maximum Head (m) | 158 |
| DNM | 1″ 1/4 |
| Weight (kg) | 16.2 |
| Liquid temperature | up to 40°C |
| Submersion depth | 15 mt |
| Sand content | 200 g/m3 |
| Phase | Single- and three-phase |

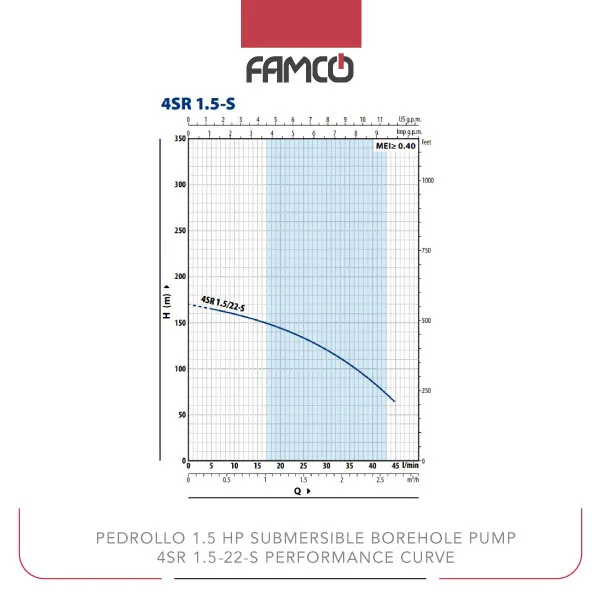

Pedrollo 1.5 HP Submersible Borehole Pump 4SR 1.5/22-S Performane Data
| Q (m3/h) | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 |
| Q (l/min) | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 |
| H (m) | 158 | 154 | 148 | 141 | 133 | 122 | 109 | 94 | 75 | 52.5 |
Pedrollo 1.5 HP Submersible Borehole Pump 4SR 1.5/22-S Applications
- Drainage and sump pumping
- Industrial fluid transfer
- Wastewater management
- Construction site dewatering
Pedrollo 1.5 HP Submersible Borehole Pump 4SR 1.5/22-S Benefits
- High efficiency with a maximum flow rate of 2.7 m3/h
- Flexible power options with single and three-phase support
- Durable design suitable for liquids up to 40°C
- Can operate at significant depths up to 15 meters
Pedrollo 1.5 HP Submersible Borehole Pump 4SR 1.5/22-S Price List
| No. | Name | Price |
| 1 | Pedrollo 1.5 HP Submersible Borehole Pump 4SR 1.5/22-S Price | Contact us |
