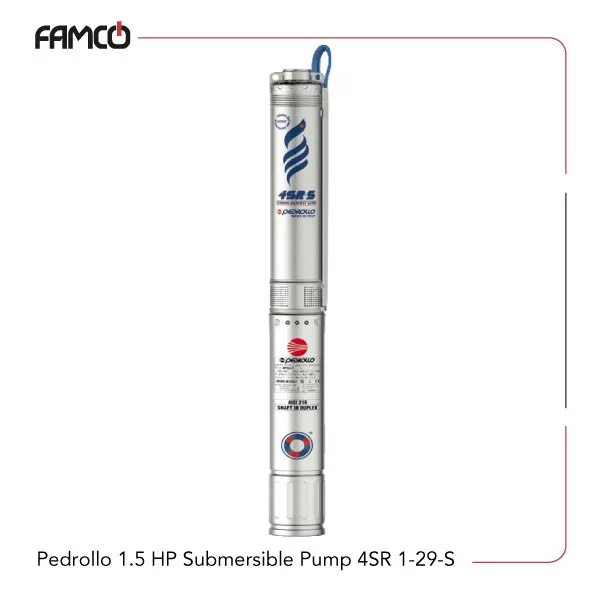

Pedrollo 1.5 HP Submersible Borehole Pump 4SR 1/29-S Specifications
Pedrollo submersible borehole pump 4SR 1/29-S delivers 1.1 kW (1.5 HP) of power, making it ideal for demanding water transfer tasks. It can manage a maximum flow rate of 1.8 cubic meters per hour (about 30 liters per minute), providing efficient liquid movement. This Pedrollo submersible pump can reach a maximum head of 203 meters, allowing it to lift water over considerable vertical distances. It features a DN 1¼-inch connection, compatible with standard piping systems, and weighs 17.8 kg, making it portable and easy to handle. The pump is designed to operate with liquids up to 40°C and can be submerged to a depth of 15 meters, suitable for deep wells, sumps, or other submersible applications. It can tolerate sand content up to 200 grams per cubic meter, making it reliable even in slightly abrasive or sediment-laden water. Supporting both single-phase and three-phase power supplies, it offers flexibility for various electrical setups.
| Specification | Value |
| Power (kW) | 1.1 |
| Power (HP) | 1.5 |
| Maximum Flow rate (m3/h) | 1.8 |
| Maximum Flow rate (l/min) | 30 |
| Maximum Head (m) | 203 |
| DNM | 1″ 1/4 |
| Weight (kg) | 17.8 |
| Liquid temperature | up to 40°C |
| Submersion depth | 15 mt |
| Sand content | 200 g/m3 |
| Phase | Single- and three-phase |

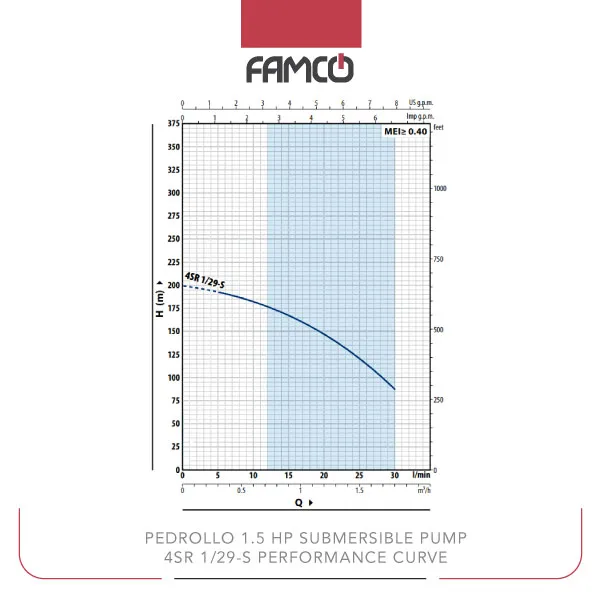

Pedrollo 1.5 HP Submersible Borehole Pump 4SR 1/29-S Performance Data
| Q (m3/h) | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 |
| Q (l/min) | 0 | 5 | 10 | 15 | 20 | 25 | 30 |
| H (m) | 203 | 196 | 185 | 170 | 150 | 123 | 90 |
Pedrollo 1.5 HP Submersible Borehole Pump 4SR 1/29-S Applications
- Deep well water extraction
- Flood drainage and water removal
- Irrigation systems
- Industrial liquid transfer
Pedrollo 1.5 HP Submersible Borehole Pump 4SR 1/29-S Benefits
- High maximum head for deep lifting
- Flexible power options with single and three-phase support
- Durable design suitable for sandy environments
- Lightweight and portable for easy handling
Pedrollo 1.5 HP Submersible Borehole Pump 4SR 1/29-S Price List
| No. | Name | Price |
| 1 | Pedrollo 1.5 HP Submersible Borehole Pump 4SR 1/29-S Price | Contact us |
