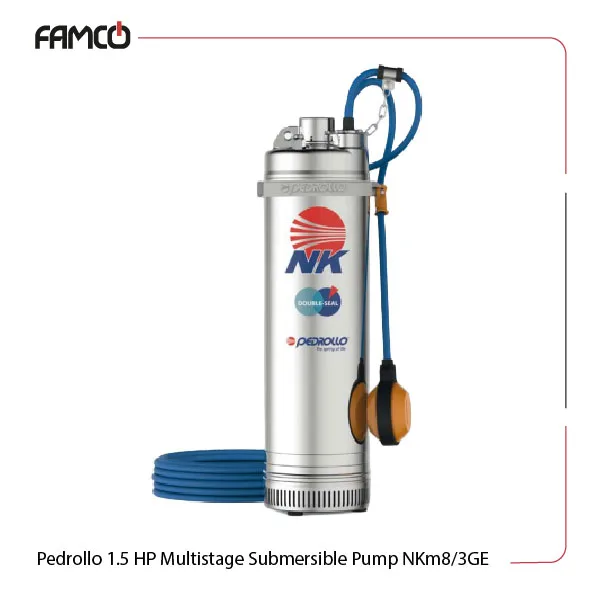

Pedrollo 1.5 HP Multistage Submersible Pump NKm8/3GE Specifications
This product features a forceful power output of 1.1 kW (1.5 HP) for various applications. This Pedrollo submersible pump operates efficiently at a head range of 16.2 to 40.5 meters. This device can be powered by either a single-phase voltage of 230V or a three-phase voltage of 400V. Weighing 15.5 kg for single-phase and 14.4 kg for three-phase, this product is lightweight and durable at the same time. The frequency is set at 50 Hz, so it stays compatible with standard electrical systems. Its insulation class of F and a protection rating of IP X8 enable this product to withstand harsh conditions. This series of Pedrollo pumps have advanced immersion depths and this product can be immersed up to 20 meters and handle liquid temperatures up to +40 °C. Additionally, it can manage a maximum sand content of 150 g/m³, ensuring longevity and reliability. The double mechanical seals on both the motor and pump sides enhance its durability, utilizing materials like ceramic, graphite, and NBR for the motor side and silicon carbide on the pump side.
| Specification | Value |
| Power (kW) | 1.1 |
| Power (HP) | 1.5 |
| Head (m) | 16.2-40.5 |
| Voltage in single-phase (V) | 230 |
| Voltage in three-phase (V) | 400 |
| Weight in single-phase(kg) | 15.5 |
| Weight in three-phase(kg) | 14.4 |
| Frequency (Hz) | 50 |
| Insulation class | F |
| Protection rating | IP X8 |
| Max. immersion depth (m) | 20 |
| Max. liquid temperature | +40 °C |
| Maximum sand content | 150 g/m³ |
Pedrollo 1.5 HP Multistage Submersible Pump NKm8/3GE Materials
Double mechanical seal on motor side: Ceramic/Graphite/NBR
Double mechanical seal on Pump side: Silicon carbide/Graphite/NBR
Pedrollo 1.5 HP Multistage Submersible Pump NKm8/3GE Technical Data
| M3/h | 0 | 0.6 | 1.2 | 2.4 | 3.0 | 3.6 | 4.2 | 4.8 | 6.0 | 6.6 | 7.2 | 8.4 | 9.6 | |
| l/min | 0 | 10 | 20 | 40 | 50 | 60 | 70 | 80 | 100 | 110 | 120 | 140 | 160 | |
| H (m) | 40.5 | 40.5 | 40 | 39 | 38 | 37.5 | 36 | 35 | 31.5 | 29.5 | 27.5 | 22.3 | 16.2 |

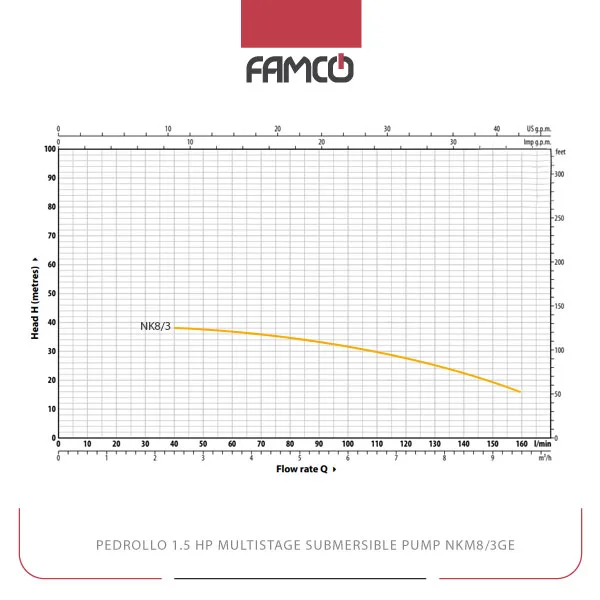

Pedrollo 1.5 HP Multistage Submersible Pump NKm8/3GE Performance Curve
Pedrollo 1.5 HP Multistage Submersible Pump NKm8/3GE Applications
- Water supply for residential buildings
- Irrigation systems for agriculture
- Construction site dewatering
- Industrial water transfer
Pedrollo 1.5 HP Multistage Submersible Pump NKm8/3GE Benefits
- High efficiency with a power output of 1.1 kW
- Durable construction with double mechanical seals
- Versatile applications in various environments
- Ability to handle high sand content without damage
Pedrollo 1.5 HP Multistage Submersible Pump NKm8/3GE Price List
| No. | Name | Price |
| 1 | Pedrollo 1.5 HP Multistage Submersible Pump NKm8/3GE Price | Contact us |
