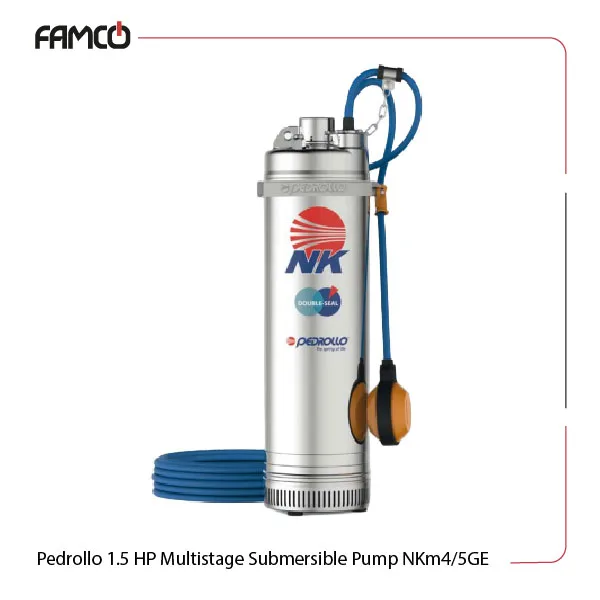

Pedrollo 1.5 HP Multistage Submersible Pump NKm4/5GE Specifications
This product features a powerful power output of 1.1 kW (1.5 HP) that generates a head range of 20 to 67 meters. This Pedrollo pump is designed for both single-phase (230 V) and three-phase (400 V) applications. The weight is 16.7 kg for single-phase and 15.5 kg for three-phase configurations. Operating at a frequency of 50 Hz, this pump has an insulation class of F. The protection rating of IP X8 permits submersion in water up to 20 meters deep, with a maximum liquid temperature of +40 °C. To make the NK4/5 as durable as it can get, this series of submersible pumps handles a maximum sand content of 150 g/m³. The double mechanical seals of this product are on both the motor and pump sides, made from materials like ceramic, graphite, and NBR.
| Specification | Value |
| Power (kW) | 1.1 |
| Power (HP) | 1.5 |
| Head (m) | 20-67 |
| Voltage in single-phase (V) | 230 |
| Voltage in three-phase (V) | 400 |
| Weight in single-phase(kg) | 16.7 |
| Weight in three-phase(kg) | 15.5 |
| Frequency (Hz) | 50 |
| Insulation class | F |
| Protection rating | IP X8 |
| Max. immersion depth (m) | 20 |
| Max. liquid temperature | +40 °C |
| Maximum sand content |
Pedrollo 1.5 HP Multistage Submersible Pump NKm4/5GE Materials
- Double mechanical seal on motor side: Ceramic/Graphite/NBR
- Double mechanical seal on Pump side: Silicon carbide/Graphite/NBR
Pedrollo 1.5 HP Multistage Submersible Pump NKm4/5GE Technical Data
| M3/h | 0 | 0.6 | 1.2 | 2.4 | 3.0 | 3.6 | 4.2 | 4.8 | 6.0 | 6.6 | 7.2 |
| l/min | 0 | 10 | 20 | 40 | 50 | 60 | 70 | 80 | 100 | 110 | 120 |
| H (m) | 67 | 66 | 65 | 61 | 58.5 | 55 | 51 | 46 .5 | 34.5 | 27.5 | 20 |

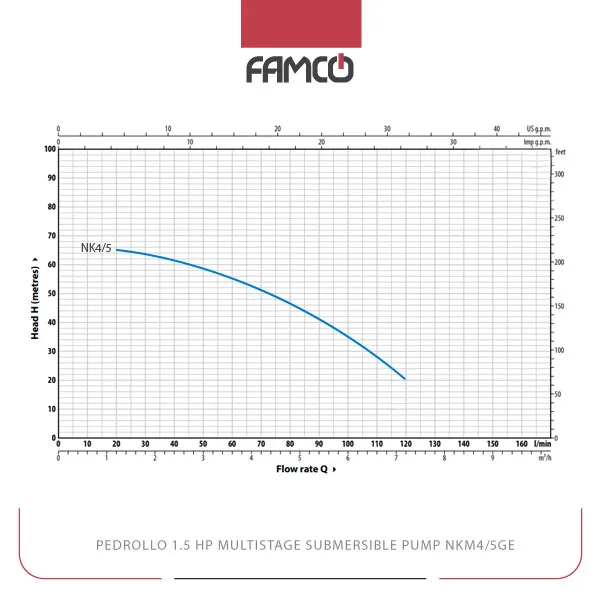

Pedrollo 1.5 HP Multistage Submersible Pump NKm4/5GE Performance Curve
Pedrollo 1.5 HP Multistage Submersible Pump NKm4/5GE Applications
- Water supply systems for residential buildings
- Irrigation in agricultural settings
- Drainage in construction sites
- Industrial processes requiring liquid transfer
Pedrollo 1.5 HP Multistage Submersible Pump NKm4/5GE Benefits
- High efficiency with a power output of 1.1 kW
- Versatile voltage options for different setups
- Durable design with IP X8 protection rating
- Reliable operation with double mechanical seals
Pedrollo 1.5 HP Multistage Submersible Pump NKm4/5GE Price List
| No. | Name | Price |
| 1 | Pedrollo 1.5 HP Multistage Submersible Pump NKm4/5GE Price | Contact us |
