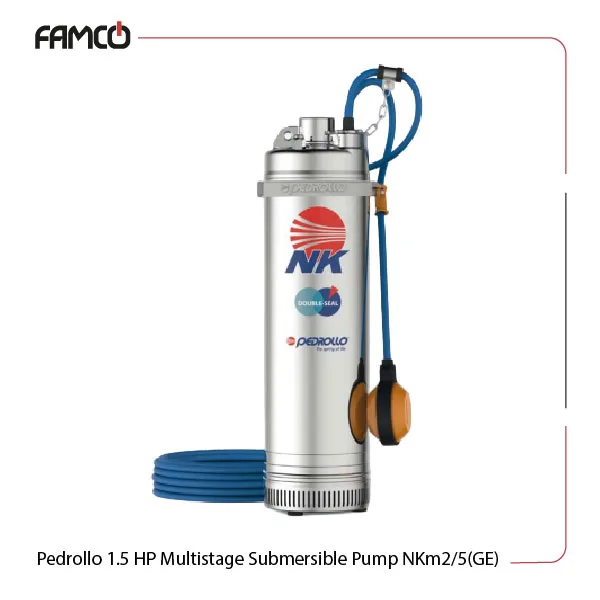

Pedrollo 1.5 HP Multistage Submersible Pump NKm2/5GE Specifications
This product features a powerful power output of 1.1 kW (1.5 HP). This Pedrollo pump operates efficiently with a head range of 40-80 meters. The device is designed for both single-phase (230 V) and three-phase (400 V) power supply. Weighing 16.6 kg for single-phase and 15.4 kg for three-phase, this submersible pump is manageable and easy to setup. The frequency is set at 50 Hz, and it has an insulation class of F with reliable performance. Its protection rating of IP X8 can withstand harsh conditions, even when submerged up to 20 meters. This product can handle liquid temperatures up to +40 °C and a maximum sand content of 150 g/m³. It is equipped with double mechanical seals on both the motor and pump sides.
| Specification | Value |
| Power (kW) | 1.1 |
| Power (HP) | 1.5 |
| Head (m) | 40-80 |
| Voltage in single-phase (V) | 230 |
| Voltage in three-phase (V) | 400 |
| Weight in single-phase (kg) | 16.6 |
| Weight in three-phase (kg) | 15.4 |
| Frequency (Hz) | 50 |
| Insulation class | F |
| Protection rating | IP X8 |
| Max. immersion depth (m) | 20 |
| Max. liquid temperature | +40 °C |
| Maximum sand content | 150 g/m³ |
Pedrollo 1.5 HP Multistage Submersible Pump NKm2/5GE Materials
- Double mechanical seal on motor side: Ceramic/Graphite/NBR
- Double mechanical seal on Pump side: Silicon carbide/Graphite/NBR
Pedrollo 1.5 HP Multistage Submersible Pump NKm2/5GE Applications
- Water transfer for irrigation systems
- Drainage in construction sites
- Pumping water from wells
- Handling sand-laden liquids in industrial settings
Pedrollo 1.5 HP Multistage Submersible Pump NKm2/5GE Technical Data
| M3/h | 0 | 0.6 | 1.2 | 2.4 | 3.0 | 3.6 | 4.2 | 4.8 |
| l/min | 0 | 10 | 20 | 40 | 50 | 60 | 70 | 80 |
| H (m) | 80 | 78 | 75 | 68.5 | 63.5 | 57 | 49.5 | 40 |

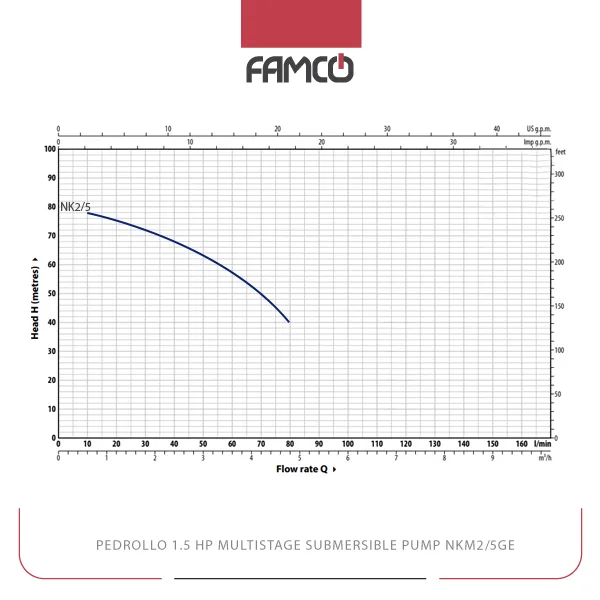

Pedrollo 1.5 HP Multistage Submersible Pump NKm2/5GE Performance Curve
Pedrollo 1.5 HP Multistage Submersible Pump NKm2/5GE Benefits
- High power output for efficient operation
- Versatile voltage options for easy installation
- Durable construction with advanced sealing technology
- Ability to handle challenging liquid conditions
Pedrollo 1.5 HP Multistage Submersible Pump NKm2/5GE Price List
| No. | Name | Price |
| 1 | Pedrollo 1.5 HP Multistage Submersible Pump NKm2/5GE Price | Contact us |
