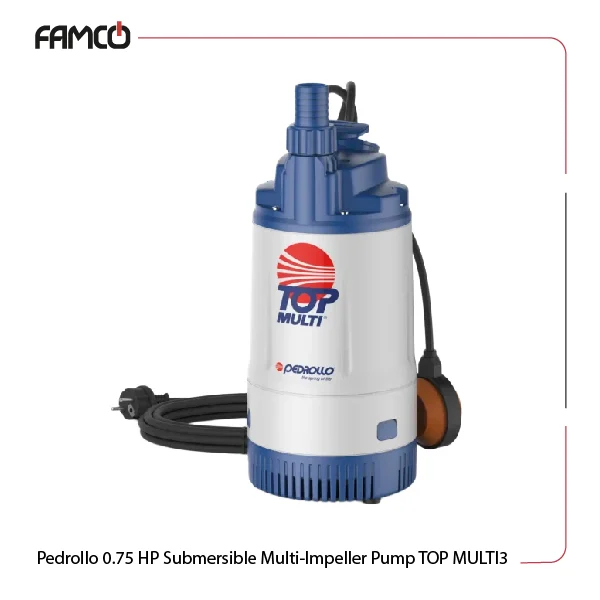

Pedrollo 0.75 HP Submersible Multi-Impeller Pump TOP MULTI3 Specifications
This product is a powerful and efficient pump designed for various applications. This Pedrollo product operates at a power of 0.55 kW, which is equivalent to 0.75 HP. This submersible pump can handle a head range from 4.5 to 30.5 meters. It runs on a single-phase voltage of 230 V, ensuring compatibility with standard electrical systems. Weighing only 9.3 kg, this series of Pedrollo submersible pumps are lightweight and easy to install. The maximum immersion depth of this product is 10 meters. Additionally, this Pedrollo pump can handle liquid temperatures up to +40 °C and has a draining capability of 35 mm.
| Specification | Value |
| Power (kW) | 0.55 |
| Power (HP) | 0.75 |
| Head (m) | 4.5-30.5 |
| Voltage in single-phase (V) | 230 |
| Weight (kg) | 9.3 |
| Max. immersion depth (m) | 10 |
| Max. liquid temperature | +40 °C |
| Draining capability | 35 mm |
Pedrollo 0.75 HP Submersible Multi-Impeller Pump TOP MULTI3 Materials
- Pump body: Technopolymer
- Impellers: Noryl™
- Double mechanical seal on Motor side: Ceramic/Graphite/NBR
- Mechanical seal on SIC Pump side: SIC/Graphite/NBR
Pedrollo 0.75 HP Submersible Multi-Impeller Pump TOP MULTI3 Technical Data
| m3/h | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3.0 | 3.6 | 4.2 | 4.8 | 5.4 | 6.0 | 6.6 | 7.2 |
| l/min | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 |
| H0 (mm) | 30.5 | 30 | 29 | 27.5 | 26 | 24.3 | 22.2 | 19.8 | 17.2 | 14.4 | 11.3 | 8 | 4.5 |

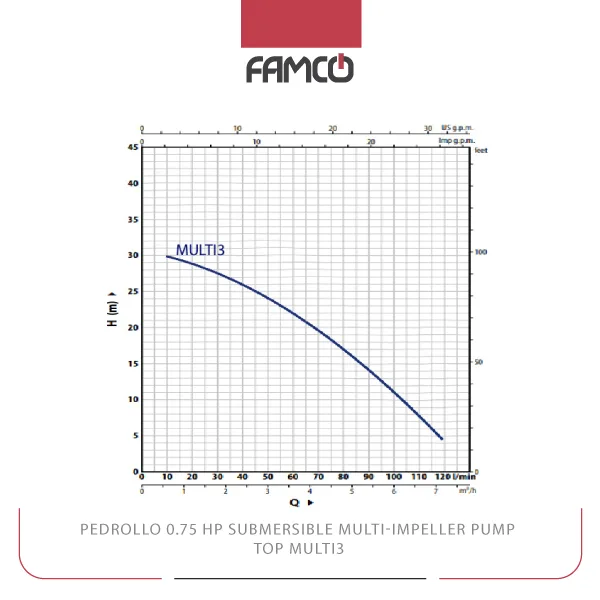

Pedrollo 0.75 HP Submersible Multi-Impeller Pump TOP MULTI3 Pump Performance Curve
Pedrollo 0.75 HP Submersible Multi-Impeller Pump TOP MULTI3 Pump Applications
- Draining flooded basements
- Emptying swimming pools
- Irrigation systems
- Water transfer in construction sites
Pedrollo 0.75 HP Submersible Multi-Impeller Pump TOP MULTI3 Pump Benefits
- Efficient power consumption with 0.55 kW
- Lightweight design for easy handling
- Versatile applications for various water movement needs
- Reliable performance with a maximum head of 30.5 meters
Pedrollo 0.75 HP Submersible Multi-Impeller Pump TOP MULTI3 Pump Price List
| No. | Name | Price |
| 1 | Pedrollo 0.75 HP Submersible Multi-Impeller Pump TOP MULTI3 Pump Price | Contact us |
