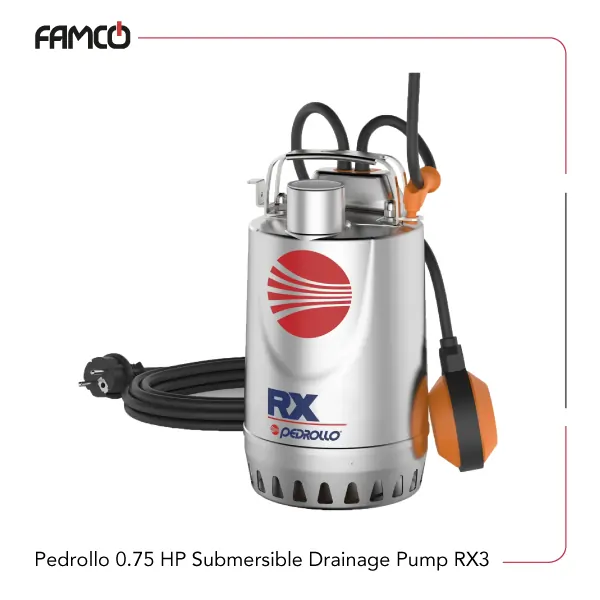

Pedrollo 0.75 HP Submersible Drainage Pump RX3 Specifications
The combination of its considerable power, versatile voltage options, and excellent thermal protection has made it a top choice for demanding environments. Its ability to handle solids and operate at significant depths adds to its functionality for both professionals and DIY enthusiasts. This product features a consistent power output of 0.55 kW (0.75 HP) and operates efficiently within a head range of 3.5 to 12.3 meters. Famously, Pedrollo submersible pumps cater to various needs. This one, particularly, is compatible with both single-phase (230 V) and three-phase (400 V) systems. It can handle liquid temperatures up to +50 °C, and for short durations, this Pedrollo submersible pump can withstand up to +90 °C. The bottom drainage level is efficient, allowing for drainage up to 14 mm, and it can manage solid content up to 10 mm. The double mechanical seals on both the motor and pump sides, made from high-quality materials like silicon carbide and NBR, make up the ideal submersible pump all in one product. The impeller and motor shaft are crafted from stainless steel, enhancing longevity and performance.
| Specification | Value |
| Power (kW) | 0.55 |
| Power (HP) | 0.75 |
| Head (m) | 3.5-12.3 |
| Voltage in single-phase (V) | 230 |
| Voltage in three-phase (V) | 400 |
| Weight in single-phase(kg) | 7.6 |
| Weight in three-phase(kg) | 7.1 |
| Frequency (Hz) | 50 |
| Insulation class | F |
| Protection rating | IP X8 |
| Max. immersion depth (m) | 10 |
| Max. liquid temperature | +50 °C (up to +90 °C up to 3 minutes max) |
| Bottom drainage level | up to 14 mm |
| Maximum solid content | 10 mm |

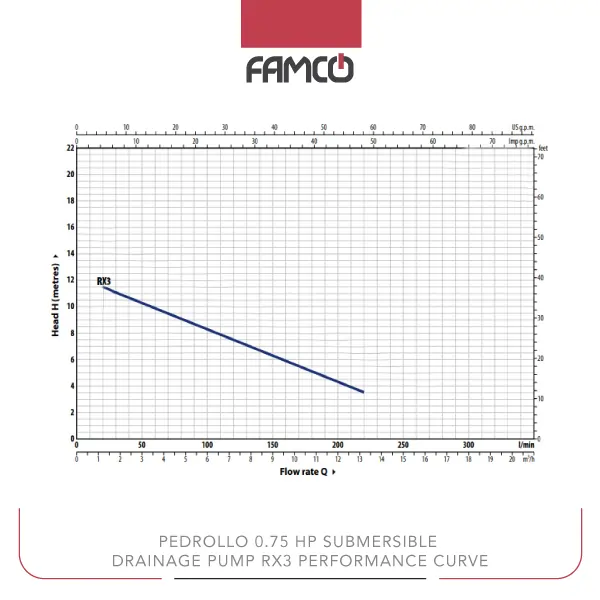

Pedrollo 0.75 HP Submersible Drainage Pump RX3 Performance Data
| m³/h | 0 | 1.2 | 3.6 | 6 | 7.8 | 9.6 | 11.4 | 13.2 |
| l/min | 0 | 20 | 60 | 100 | 130 | 160 | 190 | 220 |
| H (m) | 12.3 | 11.5 | 10 | 8.3 | 7 | 6 | 4.7 | 3.5 |

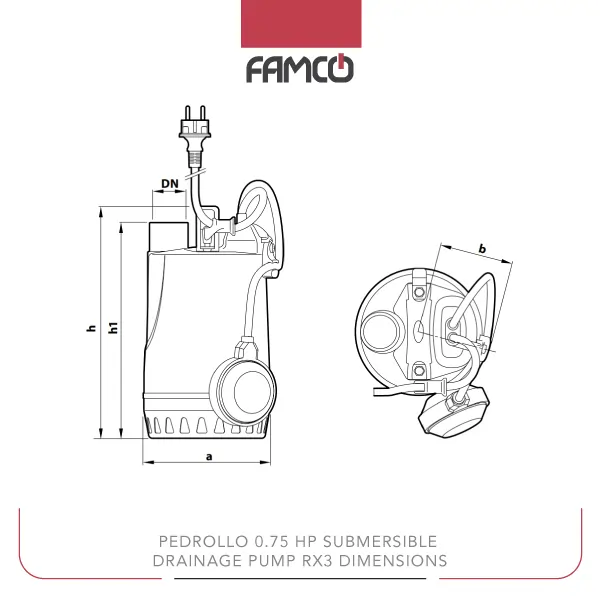

Pedrollo 0.75 HP Submersible Drainage Pump RX3 Dimensions
Pedrollo 0.75 HP Submersible Drainage Pump RX3 Materials
- Double mechanical seal on motor side: Silicon carbide / Graphite / NBR
- Double mechanical seal on Pump side: Silicon carbide/Silicon carbide/NBR
- Impeller: Stainless steel
- Motor shaft: Stainless steel
Pedrollo 0.75 HP Submersible Drainage Pump RX3 Applications
- Residential water drainage
- Agricultural irrigation systems
- Industrial water transfer
- Flood control and management
Pedrollo 0.75 HP Submersible Drainage Pump RX3 Benefits
- High efficiency with low power consumption
- Durable construction with stainless steel components
- Versatile voltage options for different setups
- Excellent thermal protection and submersible capabilities
Pedrollo 0.75 HP Submersible Drainage Pump RX3 Price List
| No. | Name | Price |
| 1 | Pedrollo 0.75 HP Submersible Drainage Pump RX3 Price | Contact us |
