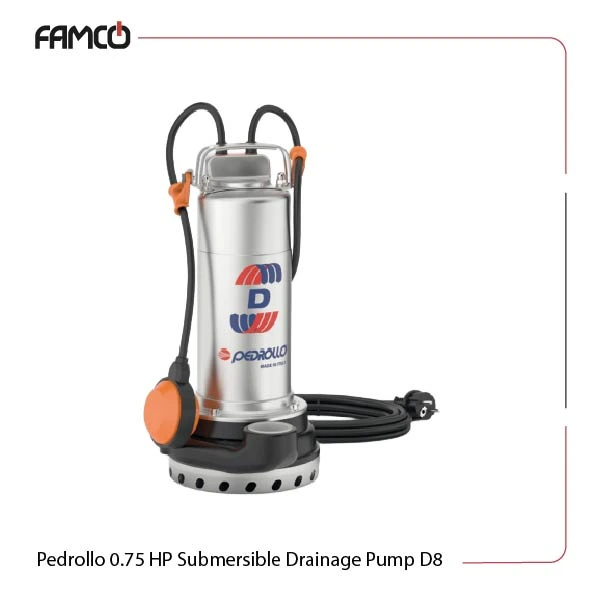

Pedrollo 0.75 HP Submersible Drainage Pump D8 Specifications
This 0.75 HP Pedrollo pump is an advanced water management solution in various settings. Its sturdy construction and high performance are everything a pump needs for both residential and commercial applications. This series of Pedrollo pumps have a maximum immersion depth of 5 meters to help it handle significant water levels. It is important for draining pumps to manage solid contents and this one passes solids of up to 10 mm. The frequency is set at 50 Hz, so it can match standard electrical systems. With its insulation class rated at F and a protection rating of IP X8, these Pedrollo submersible pumps are built to withstand harsh conditions. This Pedrollo pump can be immersed up to 5 meters and handle liquid temperatures up to +40 °C. The bottom drainage level is effective down to 17 mm, and it can manage solid contents up to 10 mm. It also features double mechanical seals on both the motor and pump sides. The strong cast iron body gives it the final touch of strength and longevity.
| Specification | Value |
| Power (kW) | 0.55 |
| Power (HP) | 0.75 |
| Head (m) | 3-13 |
| Max. flow rate (m3/h) | 15 |
| Max. flow rate (l/min) | 250 |
| Voltage in single-phase (V) | 230 |
| Voltage in three-phase (V) | 400 |
| Weight in single-phase (kg) | 12.8 |
| Weight in three-phase (kg) | 11.7 |
| Frequency (Hz) | 50 |
| Insulation class | F |
| Protection rating | IP X8 |
| Max. immersion depth (m) | 5 |
| Max. liquid temperature | +40 °C |
| Bottom drainage level | up to 17 mm |
| Maximum solid content | 10 mm |
Pedrollo 0.75 HP Submersible Drainage Pump D8 Materials
- mechanical seal on motor side: SiC/ Graphite/NBR
- mechanical seal on pump side: SiC/SiC/NBR
- pump body: cast iron
Pedrollo 0.75 HP Submersible Drainage Pump D8 Technical Data
| m³/h | 0 | 1.5 | 3.0 | 4.5 | 6.0 | 7.5 | 9.0 | 10.5 | 12.0 | 13.2 | 15.0 |
| l/min | 0 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 220 | 250 |
| H (m) | 13 | 12.5 | 12 | 11 | 10 | 9 | 8 | 7 | 6 | 4.7 | 3 |

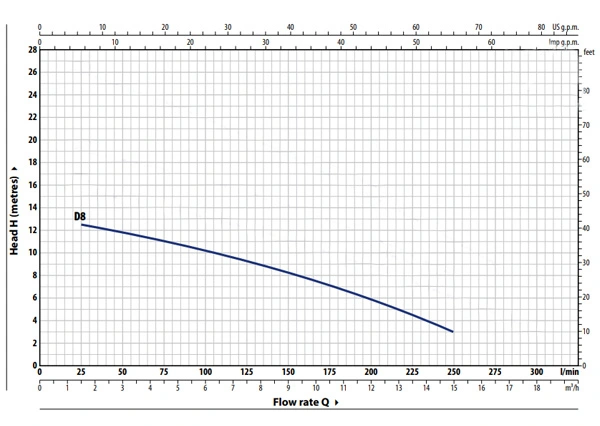

Pedrollo 0.75 HP Submersible Drainage Pump D8 Performance Curve
Pedrollo 0.75 HP Submersible Drainage Pump D8 Applications
- Basement water drainage
- Irrigation systems
- Construction site dewatering
- Swimming pool drainage
Pedrollo 0.75 HP Submersible Drainage Pump D8 Benefits
- High efficiency with low power consumption
- Durable construction with cast iron body
- Effective in handling solids up to 10 mm
- Easy installation and maintenance
Pedrollo 0.75 HP Submersible Drainage Pump D8 Price List
| No. | Name | Price |
| 1 | Pedrollo 0.75 HP Submersible Drainage Pump D8 Price | Contact us |
