Pedrollo 0.75 HP Submersible Borehole Pump 4SR 1.5/11-S Specifications
Pedrollo 0.5 HP submersible borehole pump 4SR 1.5/11-S delivers a power output of 0.55 kW (0.75 HP), making it well suited for a range of demanding water transfer applications. It supports a maximum flow rate of 2.7 m³/h (45 L/min) and can generate a maximum head of 81 meters, providing high-pressure performance for deep or elevated pumping requirements. This Pedrollo submersible pump features a 1″ 1/4 (DNM) discharge connection, ensuring compatibility with standard piping configurations. With a weight of 11.7 kg, the pump remains portable and easy to install or service. Engineered for versatile operation, it performs reliably in liquids up to 40°C and can be submerged to depths of up to 15 meters, making it suitable for deep wells, tanks, and sump applications. The design accommodates sand content of up to 200 g/m³, ensuring dependable operation even in environments containing moderate particulate matter.
| Specification | Value |
| Power (kW) | 0.55 |
| Power (HP) | 0.75 |
| Maximum Flow rate (m3/h) | 2.7 |
| Maximum Flow rate (l/min) | 45 |
| Maximum Head (m) | 81 |
| DNM | 1″ 1/4 |
| Weight (kg) | 11.7 |
| Liquid temperature | up to 40°C |
| Submersion depth | 15 mt |
| Sand content | 200 g/m3 |
| Phase | Single- and three-phase |

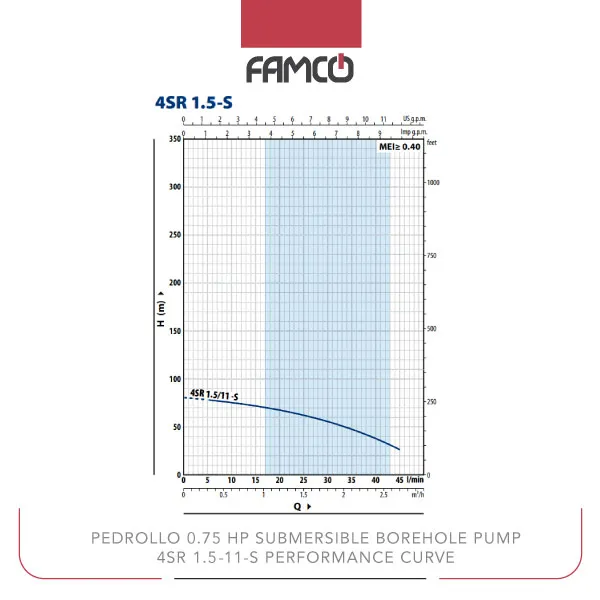

Pedrollo 0.75 HP Submersible Borehole Pump 4SR 1.5/11-S Performance Data
| Q (m3/h) | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 |
| Q (l/min) | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 |
| H (m) | 81 | 78 | 75 | 72 | 67.5 | 62.5 | 55.5 | 48 | 38 | 26.5 |
Pedrollo 0.75 HP Submersible Borehole Pump 4SR 1.5/11-S Applications
- Deep well water extraction
- Irrigation and agricultural watering
- Drainage and sump pumping
- Industrial liquid transfer
Pedrollo 0.75 HP Submersible Borehole Pump 4SR 1.5/11-S Benefits
- High head capacity for deep applications
- Flexible power options with single and three-phase support
- Durable construction handling sandy environments
- Lightweight and portable for easy setup
Pedrollo 0.75 HP Submersible Borehole Pump 4SR 1.5/11-S Price List
| No. | Name | Price |
| 1 | Pedrollo 0.75 HP Submersible Borehole Pump 4SR 1.5/11-S Price | Contact us |
There are no reviews yet.
