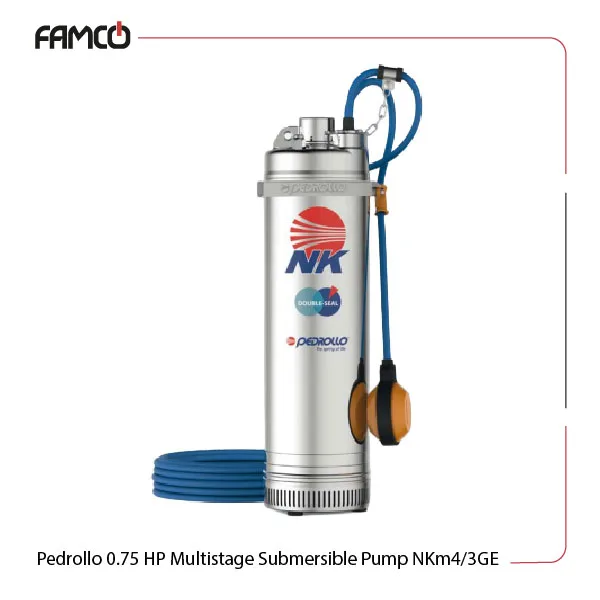

Pedrollo 0.75 HP Multistage Submersible Pump NKm4/3GE Specifications
This product is a powerful pump with a rated power of 0.55 kW (0.75 HP), designed for efficient water movement. This Pedrollo pump operates effectively within a head range of 12 to 40 meters. This product runs on a single- or three-phase voltage of 230 or 400 V (respectively) and has a frequency of 50 Hz. Weighing 13.7 kg in single-phase and 13.5 kg in three-phase configurations, it is relatively lightweight for easy handling. The insulation class is rated at F, which offers optimized durability and safety. The pump’s protection rating of IP X8 withstands immersion depths of up to 20 meters and handles liquid temperatures up to +40 °C. This series of Pedrollo pumps have considerable tolerance when it comes to passing sand content through. This submersible pump can manage a maximum sand content of 150 g/m³, making it versatile for different environments. The double mechanical seals on both the motor and pump sides enhance reliability and performance as much as possible.
| Specification | Value |
| Power (kW) | 0.55 |
| Power (HP) | 0.75 |
| Head (m) | 12-40 |
| Voltage in single-phase (V) | 230 |
| Voltage in three-phase (V) | 400 |
| Weight in single-phase (kg) | 13.7 |
| Weight in three-phase (kg) | 13.5 |
| Frequency (Hz) | 50 |
| Insulation class | F |
| Protection rating | IP X8 |
| Max. immersion depth (m) | 20 |
| Max. liquid temperature | > |
| Maximum sand content | 150 g/m³ |
Pedrollo 0.75 HP Multistage Submersible Pump NKm4/3GE Materials
- Double mechanical seal on motor side: Ceramic/Graphite/NBR
- Double mechanical seal on Pump side: Silicon carbide/Graphite/NBR
Pedrollo 0.75 HP Multistage Submersible Pump NKm4/3GE Technical Data
| M3/h | 0 | 0.6 | 1.2 | 2.4 | 3.0 | 3.6 | 4.2 | 4.8 | 6.0 | 6.6 |
| l/min | 0 | 10 | 20 | 40 | 50 | 60 | 70 | 80 | 100 | 110 |
| H (m) | 40 | 39.5 | 39 | 36.5 | 35 | 33 | 30.5 | 20.8 | 16.6 | 12 |

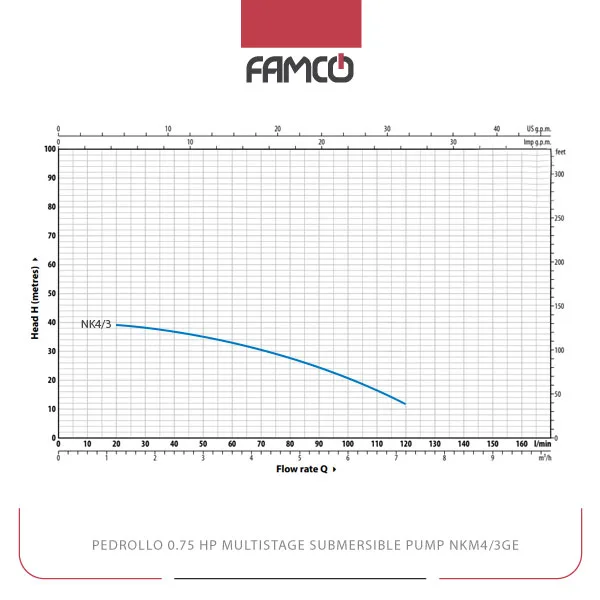

Pedrollo 0.75 HP Multistage Submersible Pump NKm4/3GE Performance Curve
Pedrollo 0.75 HP Multistage Submersible Pump NKm4/3GE Applications
- Irrigation systems for agriculture
- Water drainage in construction sites
- Wastewater management in residential areas
- Aquarium and pond water circulation
Pedrollo 0.75 HP Multistage Submersible Pump NKm4/3GE Benefits
- High efficiency with low power consumption
- Durable construction with double mechanical seals
- Versatile for various water types and conditions
- Lightweight design for easy installation and transport
Pedrollo 0.75 HP Multistage Submersible Pump NKm4/3GE Price List
| No. | Name | Price |
| 1 | Pedrollo 0.75 HP Multistage Submersible Pump NKm4/3GE Price | Contact us |
