Pedrollo 0.75 HP Multistage Submersible Pump NKm2/3GE Specifications
This product features a power output of 0.55 kW (0.75 HP. This Pedrollo submersible pump operates at a voltage of 230V for single-phase and 400V for three-phase systems. The unit’s weight is 13.6 kg, which ensures portability without compromising durability. The product’s frequency of 50 Hz is designed for optimal performance. The insulation class is rated at F, which provides reliable protection against overheating. The protection rating of IP X8 allows for submersion in water. It can handle a maximum immersion depth of 20 meters and a maximum liquid temperature of +40 °C. Additionally, this series of Pedrollo pumps have the advantage of passing through sand content of up to 150 g/m³. The double mechanical seals on both the motor and pump sides are made from high-quality materials like ceramic, graphite, and NBR, all durable and tough materials.
| Specification | Value |
| Power (kW) | 0.55 |
| Power (HP) | 0.75 |
| Head (m) | 24-48.5 |
| Voltage in single-phase (V) | 230 |
| Voltage in three-phase (V) | 400 |
| Weight (kg) | 13.6 |
| Frequency (Hz) | 50 |
| Insulation class | F |
| Protection rating | IP X8 |
| Max. immersion depth (m) | 20 |
| Max. liquid temperature | +40 °C |
| Maximum sand content | 150 g/m³ |
Pedrollo 0.75 HP Multistage Submersible Pump NKm2/3GE Materials
- Double mechanical seal on motor side: Ceramic/Graphite/NBR
- Double mechanical seal on Pump side: Silicon carbide/Graphite/NBR
Pedrollo 0.75 HP Multistage Submersible Pump NKm2/3GE Technical Data
| M3/h | 0 | 0.6 | 1.2 | 2.4 | 3.0 | 3.6 | 4.2 | 4.8 |
| l/min | 0 | 10 | 20 | 40 | 50 | 60 | 70 | 80 |
| H (m) | 48.5 | 47 | 45 | 41 | 38 | 34.5 | 29.5 | 24 |

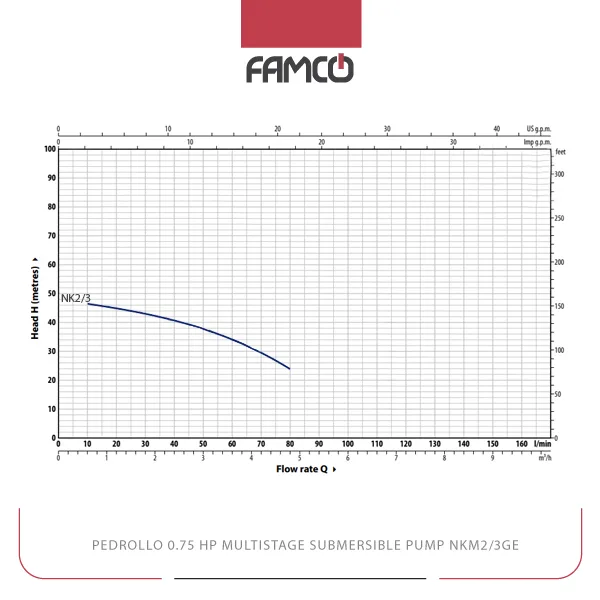

Pedrollo 0.75 HP Multistage Submersible Pump NKm2/3GE Performance Curve
Pedrollo 0.75 HP Multistage Submersible Pump NKm2/3GE Applications
- Water drainage in construction sites
- Irrigation systems for agriculture
- Flood control and management
- Aquarium and pond water circulation
Pedrollo 0.75 HP Multistage Submersible Pump NKm2/3GE Benefits
- High efficiency with low power consumption
- Durable construction for long-lasting use
- Versatile applications in various environments
- Advanced sealing technology for reliable operation
Pedrollo 0.75 HP Multistage Submersible Pump NKm2/3GE Price List
| No. | Name | Price |
| 1 | Pedrollo 0.75 HP Multistage Submersible Pump NKm2/3GE Price | Contact us |
There are no reviews yet.
