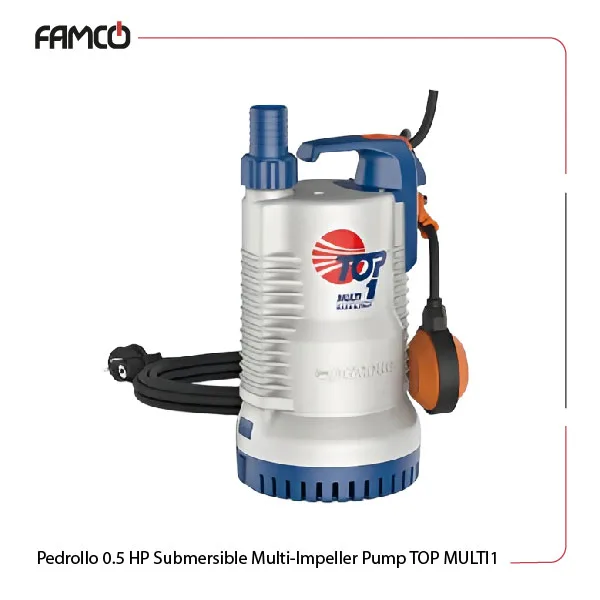

Pedrollo 0.5 HP Submersible Multi-impeller Pump TOP MULTI1

0.37 kW (0.5 HP)
Single phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tag: Pedrollo Pumps

Overview of Pedrollo 0.5 HP Submersible Multi-impeller Pump TOP MULTI1

This single-phase 0.5 HP pump has proved reliable in various water management tasks. A 75 l/min maximum flow rate and 26 meter head height translates to efficient water movement. Running on a 230 voltage, the TOP MULTI1 is built to handle challenging conditions at residential and commercial setups, regardless. The product’s powerful construction and efficient design ensure effective water movement and drainage at all times. The combination of high-quality materials and advanced technology has turned it to a top choice with durability in performance.

Pedrollo 0.5 HP Submersible Multi-Impeller Pump TOP MULTI1 Specifications

This pump operates in various conditions. This Pedrollo pump operates at a maximum depth of 3 meters below water level at deep water applications. The liquid temperature this pump tolerates can reach up to 40 °C for utmost versatility in different environments. The draining capability of 25 mm on the bottom side effectively removes excess water. This submersible pump includes a float switch. It also operates on 230 volts and has a power output of 0.37 kW (0.50 HP). The head range is impressive and spans from 6 to 26 meters for effective water movement. The pump body is made from durable technopolymer, while the impellers are crafted from Noryl™ to make it as durable as ever. The motor cover is made of stainless steel AISI 304 to give the product additional protection, at all times. The mechanical seal features STA-12R Ceramic/Graphite/NBR, enhancing reliability and performance.

Specification	Value
Maximum operating depth below water level	3 m max.
Liquid temperature	up to +40 °C
Draining capability	up to 25 mm on the bottom side
Includes	Float switch
Voltage (V)	230
Power (kW)	0.37
Power (HP)	0.50
Head (m)	6-26

Pedrollo 0.5 HP Submersible Multi-Impeller Pump TOP MULTI1 Materials

Pump body: Technopolymer
Impellers: Noryl™
Motor cover: Stainless steel AISI 304
Mechanical seal: STA-12R Ceramic/Graphite/NBR

Pedrollo 0.5 HP Submersible Multi-Impeller Pump TOP MULTI1 Dimensions and Weight

Dimensions (mm)

Weight (kg)

PORT

6.9

1¼”

170

192

295

315

Pedrollo 0.5 HP Submersible Multi-Impeller Pump TOP MULTI1 Technical Data

m³/h	0	0.6	1.2	1.8	2.4	3	3.6	4.2	4.5
l/min	0	10	20	30	40	50	60	70	75
H (m)	26	25	23.3	21	18.3	15	11.6	8	6

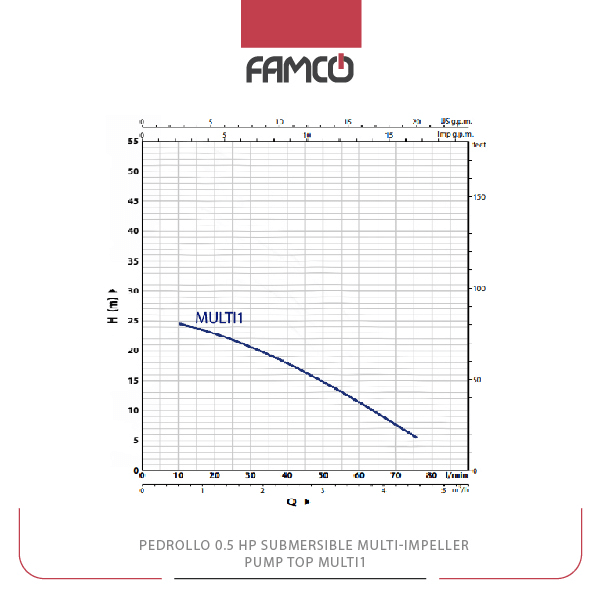

Pedrollo 0.5 HP Submersible Multi-Impeller Pump TOP MULTI1 Performance Curve

Pedrollo 0.5 HP Submersible Multi-Impeller Pump TOP MULTI1 Applications

Residential water drainage
Commercial water management
Irrigation systems
Pool and pond maintenance

Pedrollo 0.5 HP Submersible Multi-Impeller Pump TOP MULTI1 Benefits

High efficiency in water movement
Durable construction for long-lasting use
Versatile applications in different environments
Easy installation with included accessories

Pedrollo 0.5 HP Submersible Multi-Impeller Pump TOP MULTI1 Price List

No.	Name	Price
1	Pedrollo 0.5 HP Submersible Multi-Impeller Pump TOP MULTI1 Price	Contact us

Brand	Pedrollo
Maximum Liquid Temperature (°C)	40
Voltage (V)	230
Power (kW)	0.37
Power (HP)	0.5
Maximum Delivery Head (m)	26
Pump Body	Technopolymer
Impeller Material	Noryl
Mechanical Seal	Ceramic/Graphite/NBR
Maximum Flow Rate (L/min)	75
