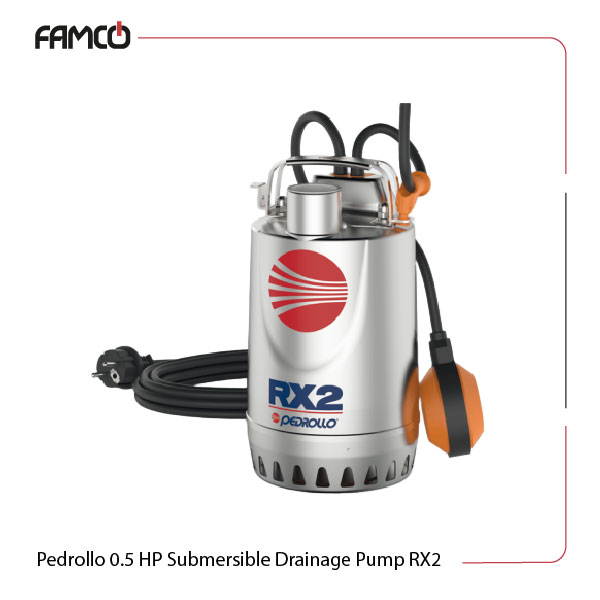

Pedrollo 0.5 HP Submersible Drainage Pump RX2 Specifications
Most Pedrollo submersible pumps are known for their durability. This one, in particular, is designed for both single-phase (230 V) and three-phase (400 V) power supplies. With a frequency of 50 Hz, this Pedrollo pump ensures reliable performance. The insulation class of these submersible pumps is Class F for safer operations. The protection rating of IP X8 allows for submersion in water up to 10 meters deep. It can handle liquid temperatures up to +50 °C, with a maximum of +90 °C for short durations. The bottom drainage level is effective up to 14 mm, which is considerable in drainage pumps, and it can manage solid content up to 10 mm.
The motor side features a double mechanical seal made of silicon carbide, graphite, and NBR, while the pump side has a similar seal configuration. Both the impeller and motor shaft are constructed from stainless steel, ensuring longevity and resistance to corrosion.
| Specification | Value |
| Power (kW) | 0.37 |
| Power (HP) | 0.50 |
| Head (m) | 2.8-10.3 |
| Voltage in single-phase (V) | 230 |
| Voltage in three-phase (V) | 400 |
| Weight in single-phase(kg) | 6.1 |
| Weight in three-phase(kg) | 5.7 |
| Frequency (Hz) | 50 |
| Insulation class | F |
| Protection rating | IP X8 |
| Max. immersion depth (m) | 10 |
| Max. liquid temperature | +50 °C (up to +90 °C up to 3 minutes max) |
| Bottom drainage level | up to 14 mm |
| Maximum solid content | 10 mm |
Pedrollo 0.5 HP Submersible Drainage Pump RX2 Materials
- Double mechanical seal on motor side: Silicon carbide / Graphite / NBR
- Double mechanical seal on Pump side: Silicon carbide/Silicon carbide/NBR
- Impeller: Stainless steel
- Motor shaft: stainless steel
Pedrollo 0.5 HP Submersible Drainage Pump RX2 Technical Data
| m³/h | 0 | 1.2 | 3.6 | 6 | 7.8 | 9.6 | 11.4 |
| l/min | 0 | 20 | 60 | 100 | 130 | 160 | 190 |
| H metres | 10.3 | 9.5 | 8 | 6.4 | 5.2 | 4 | 2.8 |

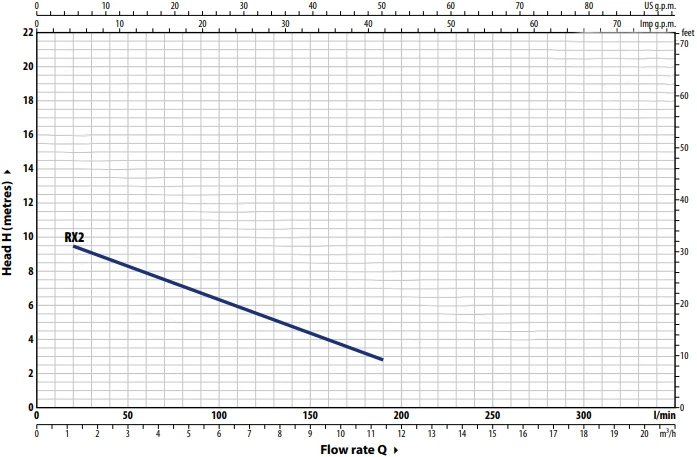

Pedrollo 0.5 HP Submersible Drainage Pump RX2 Performance Curve
Pedrollo 0.5 HP Submersible Drainage Pump RX2 Applications
- Basement water drainage
- Swimming pool emptying
- Flooded area water removal
- Irrigation systems
Pedrollo 0.5 HP Submersible Drainage Pump RX2 Benefits
- High efficiency with low power consumption
- Durable stainless steel construction
- Versatile voltage options for different setups
- Effective solid handling capability
Pedrollo RX 2 Submersible Drainage Pump for Clear Water Price List
| No. | Name | Price |
| 1 | Pedrollo 0.5 HP Submersible Drainage Pump RX2 Price | Contact us |
