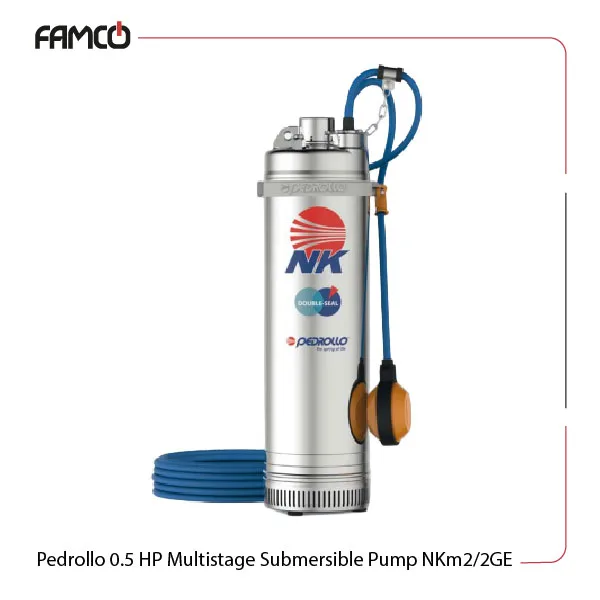

Overview of Pedrollo 0.5 HP Multistage Submersible Pump NKm2/2GE

This single-phase 0.5 HP pump is a trusted and proven water management solution (with up to 80 l/min flow rates). Its impressive 16.4 to 33 meter head range and ability to operate under challenging conditions have made the NK2/2 suitable for residential and commercial use. The high IP X8 protection rating ensures it functions effectively even when submerged in drainage, irrigation, and other water management tasks. Its durable construction and reliable seals contribute to its longevity and performance.

Pedrollo 0.5 HP Multistage Submersible Pump NKm2/2GE Specifications

This product features a power output of 0.37 kW (0.5 HP) and operates efficiently at a voltage of 230 V with a frequency of 50 Hz. This submersible pump has a head range of 16.4 to 33 meters. The weight of the unit is 13.1 kg, which ensures it is manageable and easily maintained. The insulation class is rated at F, which offers perfect thermal protection. The product’s protection rating of IP X8 is ideal for water submersion, with a maximum immersion depth of 20 meters. To tolerate tough conditions, Pedrollo pumps are built sturdier and this product handles liquid temperatures up to +40 °C and has a maximum sand content of 150 g/m³. The double mechanical seals on both the motor and pump sides ensure durability and reliability, utilizing materials like ceramic, graphite, and NBR for the motor side and silicon carbide for the pump side.

Specification	Value
Power (kW)	0.37
Power (HP)	0.5
Head (m)	16.4-33
Voltage in single-phase (V)	230
Weight (kg)	13.1
Frequency (Hz)	50
Insulation class	F
Protection rating	IP X8
Max. immersion depth (m)	20
Max. liquid temperature	+40 °C
Maximum sand content	150 g/m³

Pedrollo 0.5 HP Multistage Submersible Pump NKm2/2GE Materials

Double mechanical seal on motor side: Ceramic/Graphite/NBR
Double mechanical seal on Pump side: Silicon carbide/Graphite/NBR

Pedrollo 0.5 HP Multistage Submersible Pump NKm2/2GE Technical Data

M3/h	0	0.6	1.2	2.4	3.0	3.6	4.2	4.8
l/min	0	10	20	40	50	60	70	80
H (m)	33	32	31	28	26	23.5	20.3	16.4

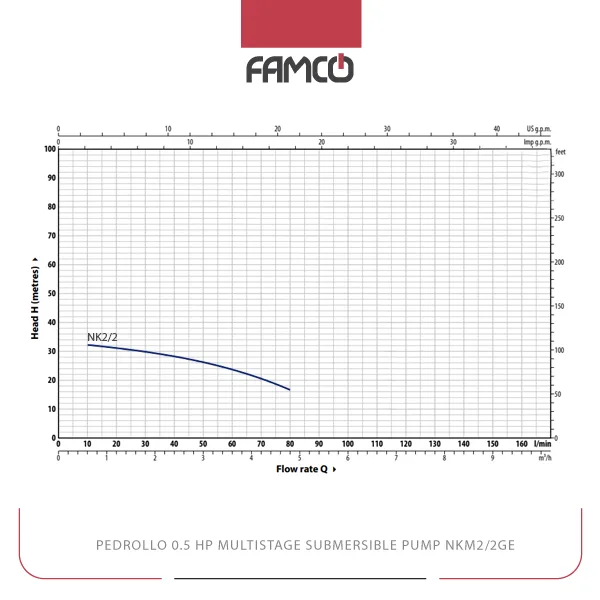

Pedrollo 0.5 HP Multistage Submersible Pump NKm2/2GE Performance Curve

Pedrollo 0.5 HP Multistage Submersible Pump NKm2/2GE Applications

Residential drainage systems
Irrigation in agricultural settings
Water management in construction sites
Flood control and emergency drainage

Pedrollo 0.5 HP Multistage Submersible Pump NKm2/2GE Benefits

High efficiency with low power consumption
Durable design with double mechanical seals
Suitable for various water conditions
Compact and lightweight for easy handling

Pedrollo 0.5 HP Multistage Submersible Pump NKm2/2GE Price List

No.	Name	Price
1	Pedrollo 0.5 HP Multistage Submersible Pump NKm2/2GE Price	Contact us

Brand	Pedrollo
Applications	Construction Site Dewatering, Draining flooded areas, Garden irrigation, Water Management Systems
Power (kW)	0.75
Power (HP)	1
Maximum Delivery Head (m)	41
Voltage (V)	230
Weight (kg)	10.5
Maximum immersion depth (m)	10
Maximum Liquid Temperature (°C)	40
Pump Body	Technopolymer
Impeller Material	Noryl
Mechanical Seal	Ceramic/Graphite/NBR, SIC/Graphite/NBR
