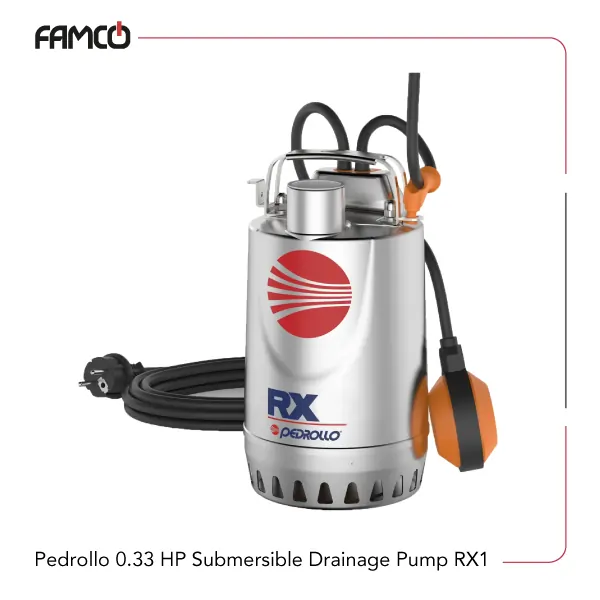

Pedrollo 0.33HP Submersible Drainage Pump RX1 Specifications
This pump is a reliable solution for various water management tasks. It is ideal for draining, transferring, and managing water in residential and commercial settings. Designed to tolerate challenging conditions, you could put this drainage pump into use in construction sites, basements, and agricultural applications. As a submersible pump, handling solid contents and high temperatures are vital feature and this Pedrollo pump ranks high in these areas. The pump can be immersed up to 10 meters and can handle liquid temperatures up to +50 °C, with a short-term tolerance of +90 °C for up to 3 minutes. It also effectively drains down to a level of 14 mm and can manage solid contents of up to 10 mm. The double mechanical seals on both the motor and pump sides are made from high-quality materials. The impeller and motor shaft are constructed from stainless steel, enhancing longevity and performance.
| Specification | Value |
| Power (kW) | 0.25 |
| Power (HP) | 0.33 |
| Head (m) | 2-7.7 |
| Voltage in single-phase (V) | 230 |
| Voltage in three-phase (V) | 400 |
| Weight in single-phase(kg) | 6.1 |
| Weight in three-phase(kg) | 5.7 |
| Frequency (Hz) | 50 |
| Insulation class | F |
| Protection rating | IP X8 |
| Max. immersion depth (m) | 10 |
| Max. liquid temperature | +50 °C (up to +90 °C up to 3 minutes max) |
| Bottom drainage level | up to 14 mm |
| Maximum solid content | 10 mm |

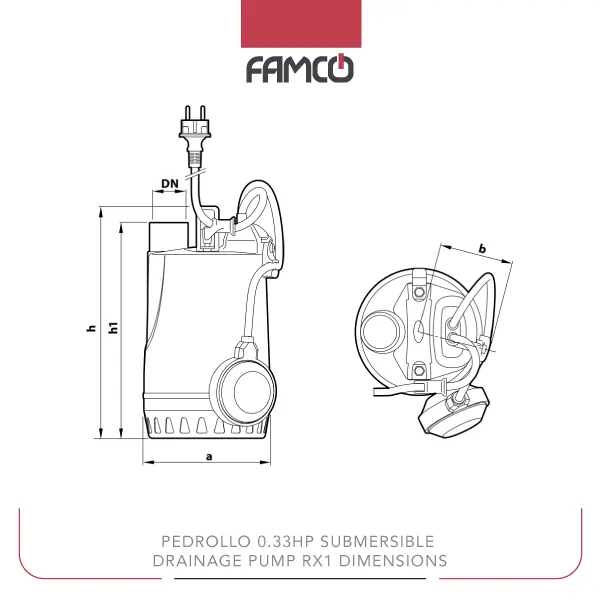

Pedrollo 0.33HP Submersible Drainage Pump RX1 Dimensions

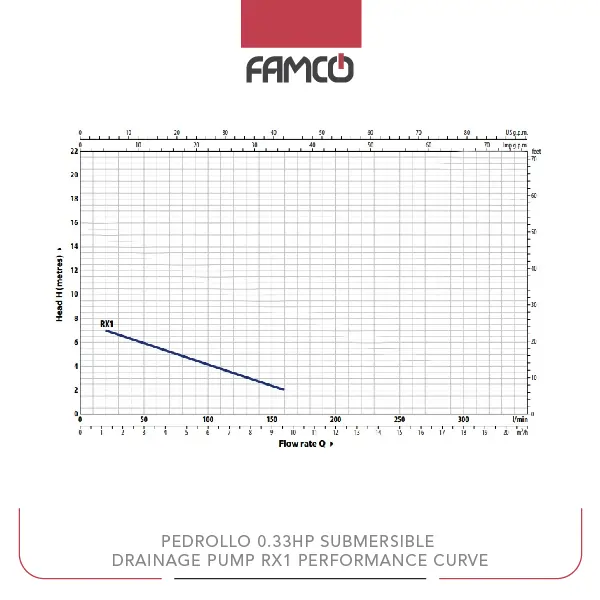

Pedrollo 0.33HP Submersible Drainage Pump RX1 Performance Data
| m³/h | 0 | 1.2 | 3.6 | 6 | 7.8 | 9.6 |
| l/min | 0 | 20 | 60 | 100 | 130 | 160 |
| H (m) | 7.7 | 7 | 5.6 | 4 | 3 | 2 |
Pedrollo 0.33HP Submersible Drainage Pump RX1 Materials
- Double mechanical seal on motor side: Silicon carbide / Graphite / NBR
- Double mechanical seal on Pump side: Silicon carbide/Silicon carbide/NBR
- Impeller: Stainless steel
- Motor shaft: Stainless steel
Pedrollo 0.33HP Submersible Drainage Pump RX1 Applications
- Residential water drainage
- Construction site dewatering
- Agricultural irrigation systems
- Basement flooding management
Pedrollo 0.33HP Submersible Drainage Pump RX1 Benefits
- Efficient power usage with low energy consumption
- Durable construction with stainless steel components
- High protection rating for reliable operation in wet environments
- Versatile applications for both residential and commercial use
Pedrollo 0.33HP Submersible Drainage Pump for Clear Water RX 1 Price List
| No. | Name | Price |
| 1 | Pedrollo 0.33HP Submersible Drainage Pump RX1 Price | Contact us |
