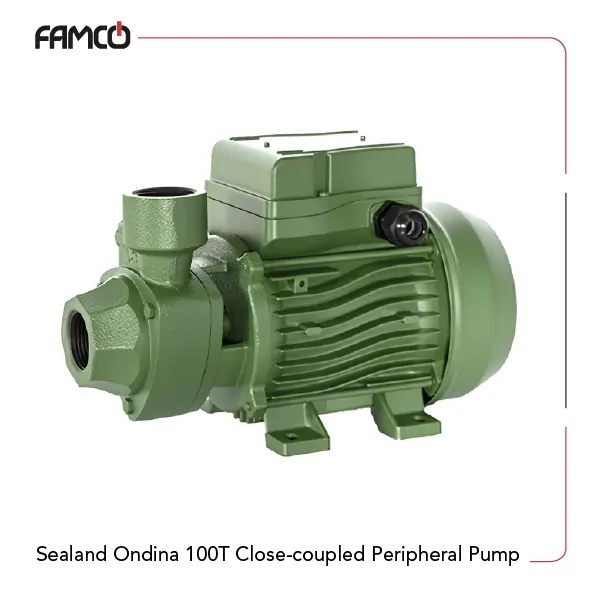

Sea land Ondina 100T Close-coupled Peripheral Pump

Overview of Sea land Ondina 100T Close-coupled Peripheral Pump

The Sea Land Ondina 100T Close-coupled Peripheral Pump, part of the BASIC & ONDINA series, is engineered to pump clean liquids devoid of abrasives and suspended solids, ensuring they are non-explosive and non-aggressive to the pump’s materials. It is capable of handling liquid temperatures up to 35°C for domestic applications or 90°C for other purposes, with a maximum ambient temperature of 40°C. The pump boasts a flow rate of up to approximately 3 m³/h and can achieve heads up to around 55 meters.

Constructed with durability in mind, the pump body and motor bracket are made from cast iron G20 with an anti-corrosive coating, while the impeller is stamped from brass UNI-EN 12165. The pump shaft is made of stainless steel Aisi 420F, and the mechanical seal comprises carbon-ceramics. The ONDINA 50 model features an “ABS” Anti-blocking system in Aisi 304 stainless steel. The control motors are asynchronous, squirrel cage-type, and closed, with external ventilation. Single-phase models include built-in motor protection and a capacitor, whereas three-phase models require customer-installed motor protection. The motors adhere to current standards, featuring Class F insulation (Class B for Basic 50), service S1, and protection ratings of IP 44 for the motor and IP 54 for the terminal board.

You can check the specification of Sea Land Ondina 100T Close-coupled Peripheral Pump on this page.

How does Sea land Ondina 100T Close-coupled Peripheral Pump work?

The Sea Land Sea Land Ondina 100T Close-coupled Peripheral Pump functions by utilizing a peripheral impeller to efficiently transfer clean, non-abrasive liquids. As the impeller rotates, it generates a high-pressure flow by pushing the liquid outward, thereby increasing its velocity and pressure. The close-coupled design integrates the motor directly with the pump, minimizing mechanical losses and enhancing operational efficiency. This setup allows the pump to handle liquids at temperatures up to 35 °C for domestic use or 90 °C for other applications, while ensuring a reliable flow rate and pressure output.

Constructed for durability and performance, the Sea Land Ondina 100T features a robust build with a cast iron body and motor bracket, both coated to resist corrosion. The impeller is made from brass, and the shaft is stainless steel, providing resistance to wear and corrosion. The pump’s mechanical seal, made from carbon-ceramics, ensures a tight seal and prevents leakage. The motor, available in both single-phase and three-phase configurations, is an asynchronous squirrel cage type with built-in ventilation and protection features, designed to operate efficiently under various conditions.

Exclusive features and benefits of Sea Land Ondina 100T Close-coupled Peripheral Pump

• Designed for Clean Liquids: The pump is designed to pump clean liquids, without abrasives and suspended solids, non-explosive or aggressive for the pump’s materials.
• Temperature Tolerance: The pump can handle liquid temperatures not higher than 35 °C for domestic use or 90 °C for other uses, while the ambient temperature must not be higher than 40 °C.
• Flow Rate and Head: The water pump has a flow rate of up to ~ 3 m3/h and heads up to ~ 55 m.
• Motor: The control motors are asynchronous, squirrel cage-type, closed, with external ventilation. Incorporated motor protection and capacitor always on, for single-phase models.
• ABS Anti-blocking System: This system is in AISI 304 stainless steel (only ONDINA 50) and has an international Patent N° IT1315401.

Sea Land Ondina 100T Close-coupled Peripheral Pump installation and usage

Installing the Sea Land Ondina 100T Close-coupled Peripheral Pump involves several key steps to ensure proper setup and optimal performance. Begin by selecting a suitable installation location that provides adequate space for maintenance and ventilation, and where the ambient temperature does not exceed 40 °C. Securely mount the pump on a stable, level base to prevent vibrations and ensure proper alignment. Connect the inlet and outlet pipes, ensuring that they are properly aligned with the pump’s connections to prevent strain on the pump components. Use appropriate gaskets and sealants to prevent leaks at all connections.

For the electrical connections, adhere to the specific requirements for single-phase or three-phase models. Single-phase pumps come with built-in motor protection and a capacitor, but ensure that the power supply matches the pump’s voltage and frequency ratings. For three-phase models, install the motor protection according to the manufacturer’s guidelines. Verify that all electrical connections comply with current standards and regulations. After completing the installation, check the system for any leaks, ensure that the pump is properly primed, and perform a test run to verify that the pump operates smoothly and efficiently.

Usage:

The Sea Land Ondina 100T Close-coupled Peripheral Pump is ideal for domestic water supply, boosting pressure in homes, and irrigation systems. Its durability and high-pressure capabilities also make it suitable for small-scale industrial applications, cooling systems, and HVAC systems. With the ability to handle temperatures up to 90 °C, it’s versatile enough for various environments where clean, non-abrasive liquid transfer is required.

Sea Land Ondina 100T Close-coupled Peripheral Pump components

• Pump Body – The main housing that contains the pump mechanism.
• Impeller – The rotating component that moves the fluid.
• Motor – The electrical component that drives the impeller.
• Pump Shaft – Connects the motor to the impeller.
• Diffuser – Guides the fluid from the impeller to the outlet.
• Bearing – Supports the shaft and reduces friction.
• Seal – Prevents leakage between the pump body and shaft.

Important tips for buying Sea Land Ondina 100T Close-coupled Peripheral Pump

• Flow Rate and Head Pressure: Ensure the pump meets your specific flow rate and head pressure requirements.
• Power Requirements: Check the motor’s power rating and compatibility with your electrical system.
• Material Compatibility: Verify that the pump materials are compatible with the fluids you will be handling.
• Installation Space: Ensure you have adequate space for installation, including access for maintenance.
• Warranty and Support: Look for a pump with a good warranty and available technical support.
• Efficiency and Energy Consumption: Opt for a model with good energy efficiency to reduce operating costs.
• Maintenance Requirements: Consider ease of maintenance and availability of replacement parts.
• Regulatory Compliance: Ensure the pump complies with relevant industry standards and regulations.
• Cost vs. Budget: Balance the cost of the pump with your budget, considering both initial investment and long-term operational costs. You can check Sea Land Ondina 100T Close-coupled Peripheral Pump price on Famcocorp website.

You can buy Sea Land Ondina 100T Close-coupled Peripheral Pump online from Famcocorp.



Sealand Ondina 100T Close-coupled Peripheral Pump Price List

No.	Name	Price
1	Sea land Ondina 100T Close-coupled Peripheral Pump Price	Contact us
