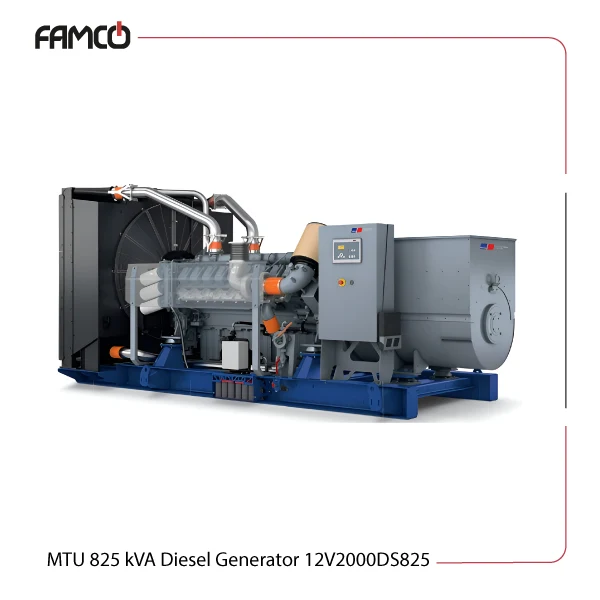

MTU 825 kVA Diesel Generator Set 12V2000DS825 Specifications
This generator features a 4-cycle engine with a displacement set at 26.8 liters, which helps it provide a power output of 825 kVA in standby mode. It operates at a rated speed of 1500 rpm and has a 12V arrangement. The unit consumes approximately 175 liters of fuel per hour at full load, with lower consumption rates at 75% and 50% loads, complying with various power demands. It includes a total oil capacity of 80 liters and an engine coolant capacity of 63 liters, which helps with proper engine cooling during operation. This MTU diesel generator set is protected with an IP23 class, suitable for outdoor use, and features insulation class H for safety and durability. Its voltage output ranges from 380V to 415V for industrial applications.
The dimensions measure 4120 mm in length, 1910 mm in width, and 2190 mm in height, with a dry weight of 58,00 kg, excluding the fuel tank. This model is ideal for backup power in large facilities or industrial settings, offering high performance and durability under demanding conditions.
| Specification | Value |
| Standby Power (kVA) | 825 |
| Engine Type | 4-cycle |
| stroke (mm) | 135 |
| Arrangement | 12V |
| Displacement (l) | 26.8 |
| Rated Speed (rpm) | 1500 |
| Fuel Consumption at 100% Load (l/h) | 175 |
| Fuel Consumption at 75% Load (l/h) | 133 |
| Fuel Consumption at 50% Load (l/h) | 93 |
| Total Oil Capacity (l) | 80 |
| Engine Coolant Capacity (l) | 63 |
| Protection Class | IP23 |
| Insulation Class | H |
| Voltage (V) | 380-415 |

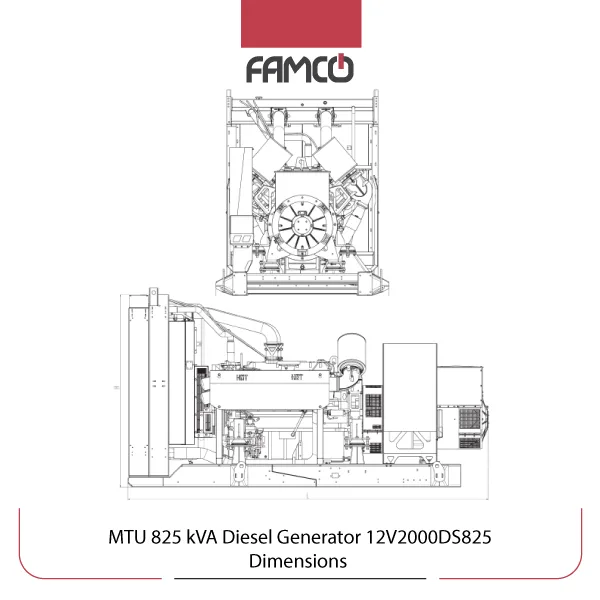

MTU 825 kVA Diesel Generator Set 12V2000DS825 Dimensions and Weight
| Dimensions (LxWxH) mm | 4120 x 1910 x 2190 |
| Weight (dry/less tank) | 5800 kg |
MTU 825 kVA Diesel Generator Set 12V2000DS825 Applications
- Industrial power backup for factories
- Emergency power supply for hospitals
- Powering large commercial facilities
- Supporting data centers during outages
MTU 825 kVA Diesel Generator Set 12V2000DS825 Benefits
- High standby power capacity of 825 kVA
- Efficient fuel consumption at different loads
- Durable construction with IP23 protection
- Reliable operation with high insulation standards
MTU 825 kVA Diesel Generator Set 12V2000DS825 Price List
| No. | Name | Price |
| 1 | MTU 825 kVA Diesel Generator Set 12V2000DS825 Price | Contact us |
